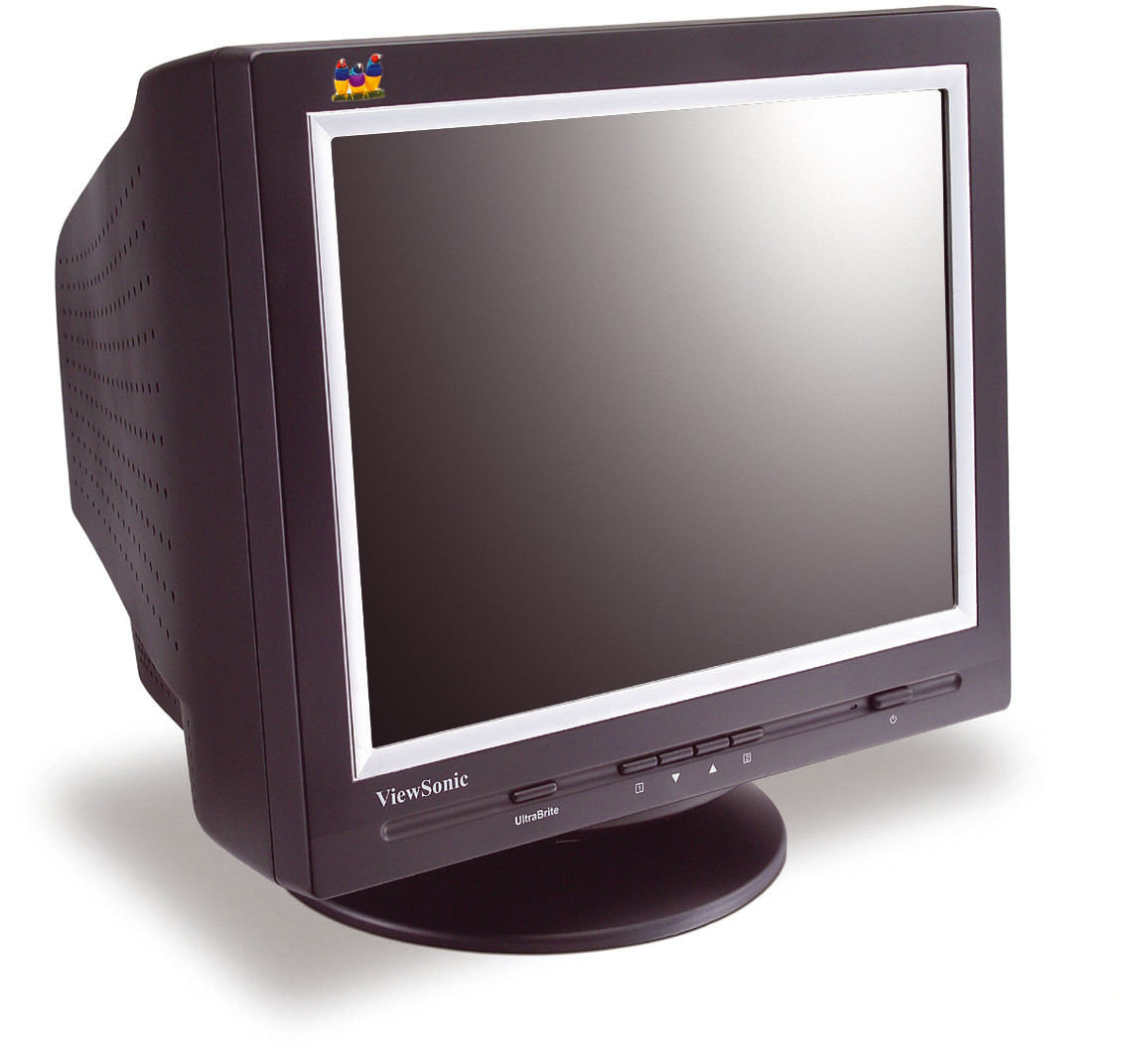

ViewSonic E96fSB CRT MONITOR 48 cm / 19" (18" VIEWABLE) E²® SERIES CRT

COLORS

Black
UYUM

PC: PC and compatible (from VGA up to 1792 x 1344)

Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864)
BOYUTLAR

Fiziksel (GxYxD): 445mm (W) x 424mm (H) x 465mm (D)
GİRİŞ SİNYALİ

Frekans: Fh: 30 – 86kHz
Fv: 50 – 160Hz

Video: RGB analogue (0.7 Vp-p, 75 ohms)

Senk.: H/V separated (TTL)
KONEKTÖRLER

Güç: 3-pin plug (IEC320)

Sinyal: 15-pin mini D-sub
Güç

Gerilim: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)

Tüketim: 55 watts (typ.)

KONTROLLER

Temel:	Power on/off, menu, up, down, select, UltraBrite
OSD:	Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction, degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall

CRT

Tür:	48 cm / 19" (18" viewable)CRT, 90° deflection, PerfectFlat
Nokta Sıklığı:	0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Fosfor:	RGB P22 (Cd free)
Cam Yüzeyi:	Tint: (TM ~ 53.6%), anti-reflection, anti-static

TAK VE ÇALIŞTIR

DDC1, DDC2B
HATALı YAKıNSAMA

0.25mm (max.) at centre
0.35mm (max.) at corner
PROGRAMLANABİLİR MODLAR

Fabrika: 10

Kullanıcı: 12
EKRAN ALANı

Fabrika Ayarı: 352mm (H) x 264mm (V) (typ.)

Maksimum Tarama: 360mm (H) x 270mm (V) (depending on signal timing used)

PC:	PC and compatible (from VGA up to 1792 x 1344)
Mac®:	Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864)

Gerilim:	AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)
Tüketim:	55 watts (typ.)

Fabrika Ayarı:	352mm (H) x 264mm (V) (typ.)
Maksimum Tarama:	360mm (H) x 270mm (V) (depending on signal timing used)

Güç:	3-pin plug (IEC320)
Sinyal:	15-pin mini D-sub

Isı:	32-104ºF (0-40ºC)
Nem:	5% to 95% (no condensation)

Fabrika:	10
Kullanıcı:	12
