Kurumsal Ekranlar
CDP3235
Önemli Özellikler
Ürün Açıklama

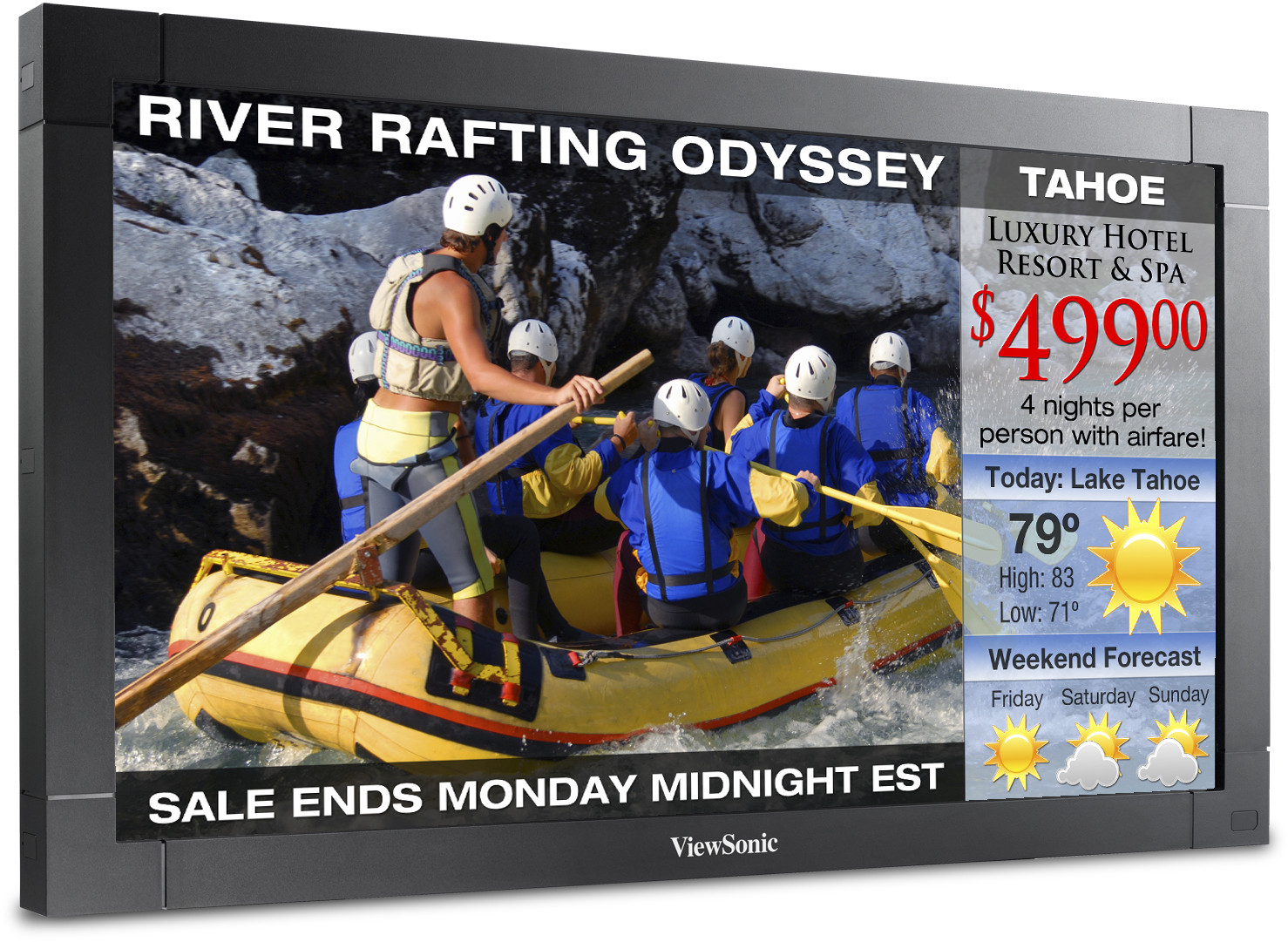

The ViewSonic® CDP3235 HD commercial display is theperfect solution for applications requiring a 32" commercialdisplay capable of a duty cycle of 24/7 operation. TheCDP3235 HD commercial display features a 1366x768HD panel with 3000:1 contrast ratio. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, S-video andcomposite, component video and built-in 10W x 2 speakers.The CDP3235 will support up to a 5x5 display video wallwith internal clock and scheduler. RS-232 daisy chaincapability and a RJ45 connection for LAN remote controlare also provided.
Bizi Ziyaret Edin
- www.viewsonic.com
-
COLORS
Black -
LCD
Tür: 32" (31.5" viewable) colour TFT active matrix, wide LCD Kontrast Oranı: 3000:1 (typ) Görüntüleme Açıları: 178º horizontal, 178º vertical Ekran Alanı: 27.5" horizontal x 15.4" vertical; 31.5" diagonal Optimum Çözünürlük: 1366x768 530mm dot pitch Yanıt Süresi: 6.5 ms Işık Kaynağı: Long life, 50,000 hrs. (typ) Görüntü Oranı: 16:9 Panel Yüzeyi: Anti-glare, hard coating (3H) Parlaklık: 450 cd/m2 (typ) -
BOYUTLAR
Stand İle Birlikte Fiziksel: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm Stand Olmadan Fiziksel: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm Kutu İle Birlikte: 44.8 x 29.3 x 12.0 in. / 880 x 670 x 252 mm -
GIRIş
Video Girişi: HDMI, DVI, component, VGA, S-Video, composite Video Çıkışı: VGA, component, DVI Control Input/Output: RS-232/RJ45 -
GİRİŞ SİNYALİ
TV/Video komp.: 480i, 480p, 720p, 1080i, 1080p -
KONEKTÖRLER
Dijital: HDMI, DVI Güç: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
Güç
Gerilim: AC 100–240V (universal), 50–60Hz Tüketim: 140W (typ) -
KONTROLLER
Temel: Power, Exit, +, –, Menu/Enter Resim: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpnessSes: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Giriş: VGA, DVI, HDMI, YPbPr OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetVGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position -
VESA® MONTAJ
400mm x 200mm, 200mm x 200mm -
AğıRLıK
Brüt: 40.8 lb. / 18.5 kg Net Standla: 33.1 lb. / 14.6 kg Net Standsız: 32.2 lb. / 15 kg -
İŞLETİM KOŞULLARI
Nem: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 32–95ºF (0–35ºC) -
AUDIO OUT
Speakers: Internal 10-watt (x2) -
PACKAGE CONTENTS
CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide -
GERI DöNüşüM / İMHA
The lamp in this product contains mercury. Please dispose
of in accordance with local, state or federal laws. -
YöNETMELIKLER
FCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
