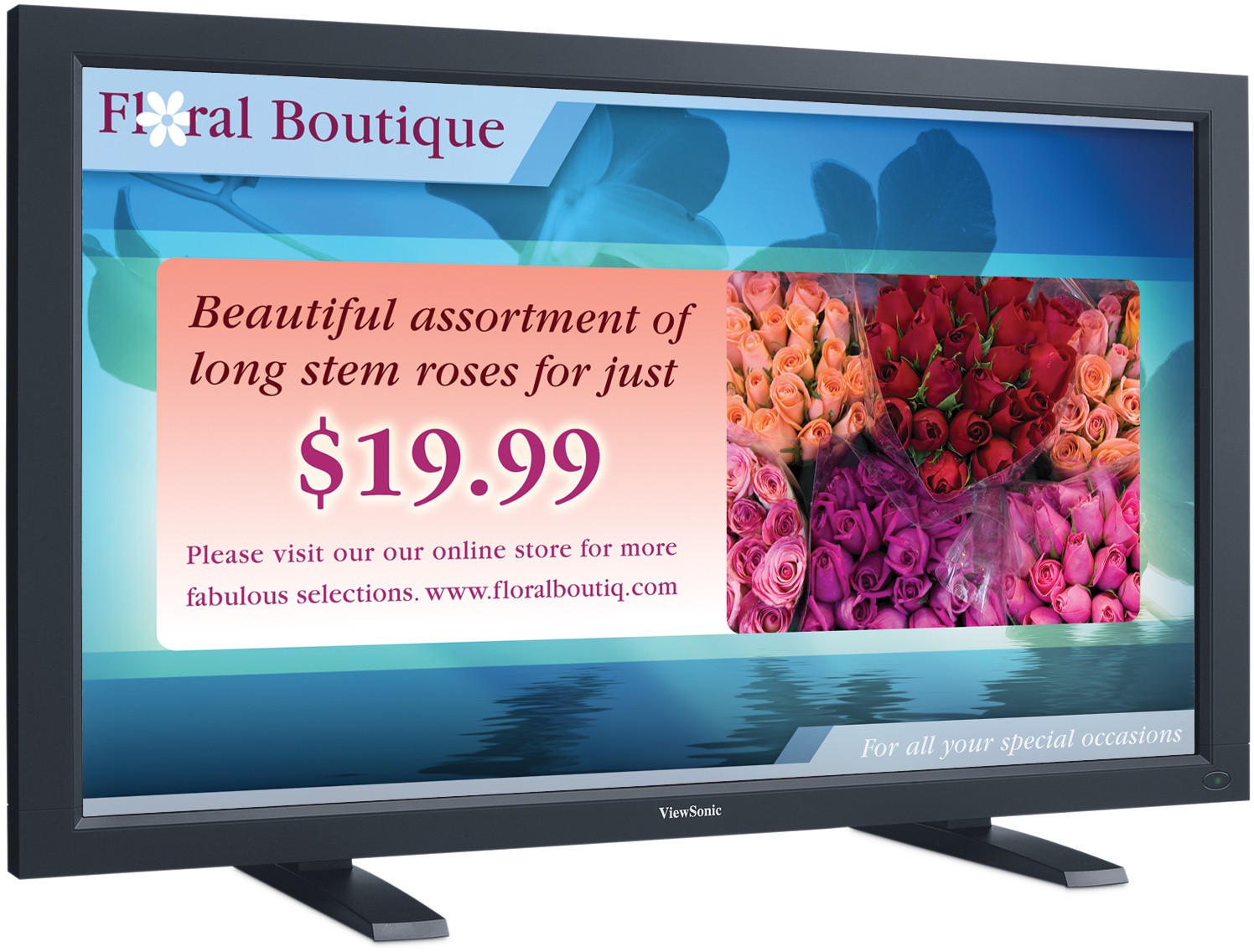

ViewSonic CD4220 High impact digital signage

COLORS

Black

LCD

Tür:	107 cm / 42" wide colour TFT active matrix
Kontrast Oranı:	1500:1 (typ.)
Görüntüleme Açıları:	178° horizontal, 178° vertical (at 10:1)
Parlaklık:	500cd/m²
Ekran Alanı:	93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Yanıt Süresi:	8 ms (Grey-to-Grey)
Görüntü Oranı:	16:9
Gerçek Çözünürlük:	1366 x 768
Panel Yüzeyi:	Anti-glare, hard coating (2H)

BOYUTLAR

Fiziksel (GxYxD): 1022 x 612 x 127 mm (without stand)
PAKET İÇERİĞİ

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
SES

Sinyal: 2 x 7 watt with SRS TruSurround¹

KONEKTÖRLER

Ses Çıkışı:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Kompozit Video Girişi:	1 x RCA (CVBS) 1 x BNC (CVBS)
Komponent Video Girişi:	3 x BNC (YPbPr/YCbCr)
Ses Girişi:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Analog Giriş:	1 x 15-pin mini D-Sub (detachable cable)
Analog Çıkış:	1 x 15-pin mini D-Sub (detachable cable)
Kompozit Video Çıkışı:	1 x BNC (CVBS)
Güç:	1 x 3-pin plug
Kontrol/Net Çıkışı:	1 x 9-pin mini D-sub RS-232
Kontrol/Net Girişi:	1 x 9-pin mini D-sub RS-232
Dijital Giriş:	1 x HDMI (with HDCP)

Güç

Gerilim: AC 100–240V (universal), 50/60Hz

Tüketim: <246 watt, <5 watt in power save mode

KONTROLLER

Temel:

Power, menu, exit, source, up/down, volume, mute, main power switch

OSD:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset)

İŞLETİM KOŞULLARI

Isı: 0°C–40°C landscape mode, 5°C–35°C portrait mode

Nem: 20%–80% (non-condensing)
AğıRLıK

Net: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)

Brüt: 34.7kg

VIDEO GIRIşI

Frekans:	Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Senk.:	H/V separate (TTL), composite, sync on green
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
Dijital:	HDMI (HDCP enabled; TMDS, 100 ohm)

DUVAR MONTAJI

VESA FDMI 400mm x 200mm, M6 screws

Gerilim:	AC 100–240V (universal), 50/60Hz
Tüketim:	<246 watt, <5 watt in power save mode

Isı:	0°C–40°C landscape mode, 5°C–35°C portrait mode
Nem:	20%–80% (non-condensing)

Net:	29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Brüt:	34.7kg
