New

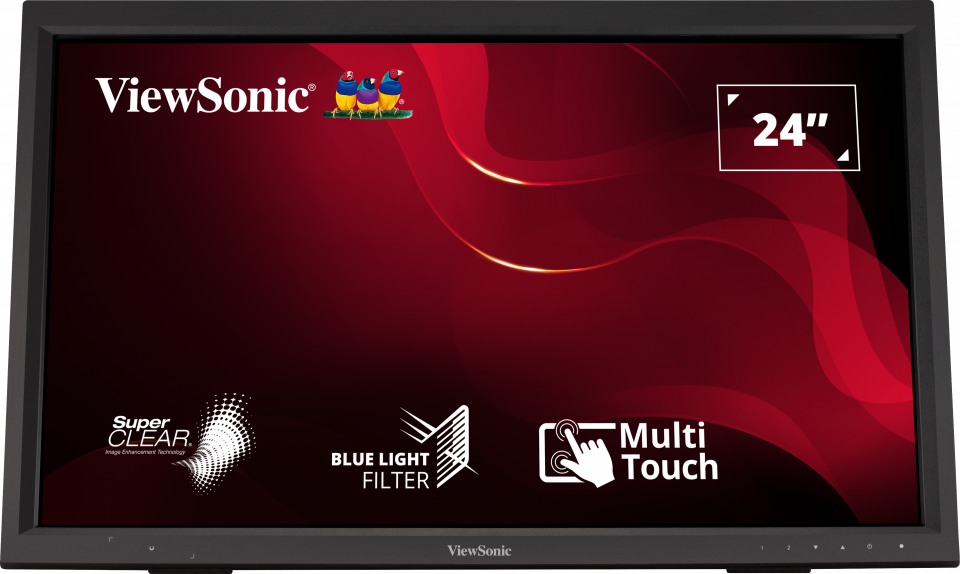

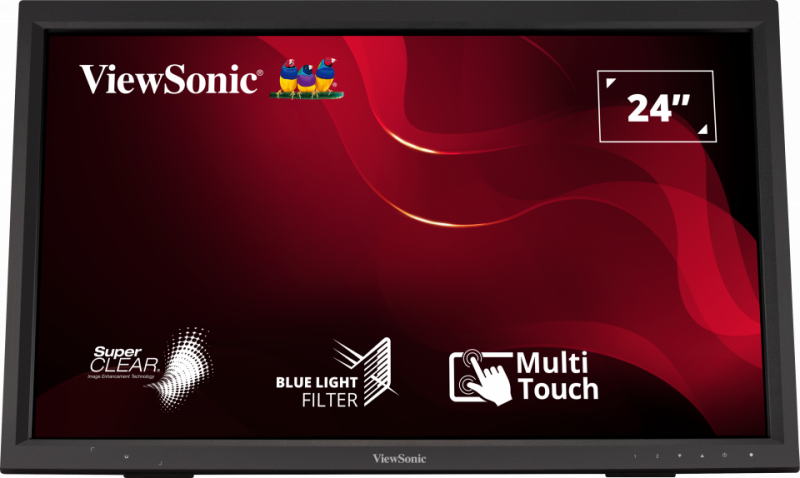

TD2423

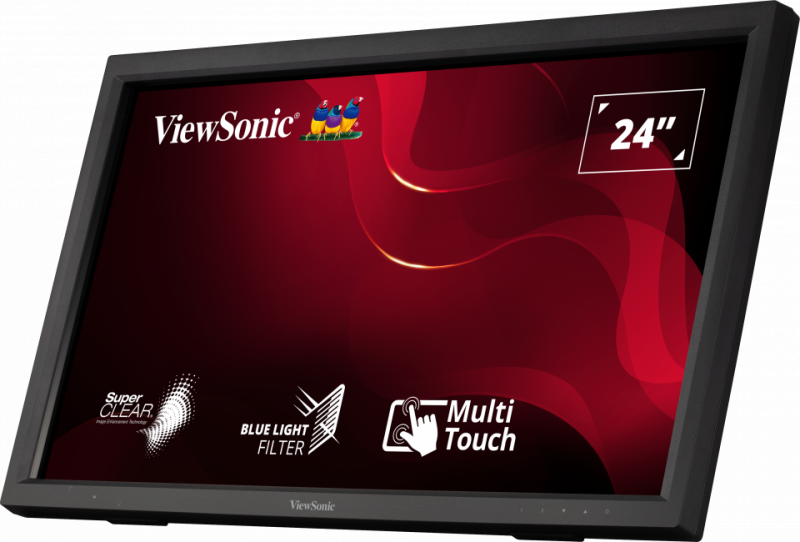

24” IR Touch Monitor

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

แหล่งซื้อสินค้า แบ่งปัน

แกลเลอรี่

ภาพรวม

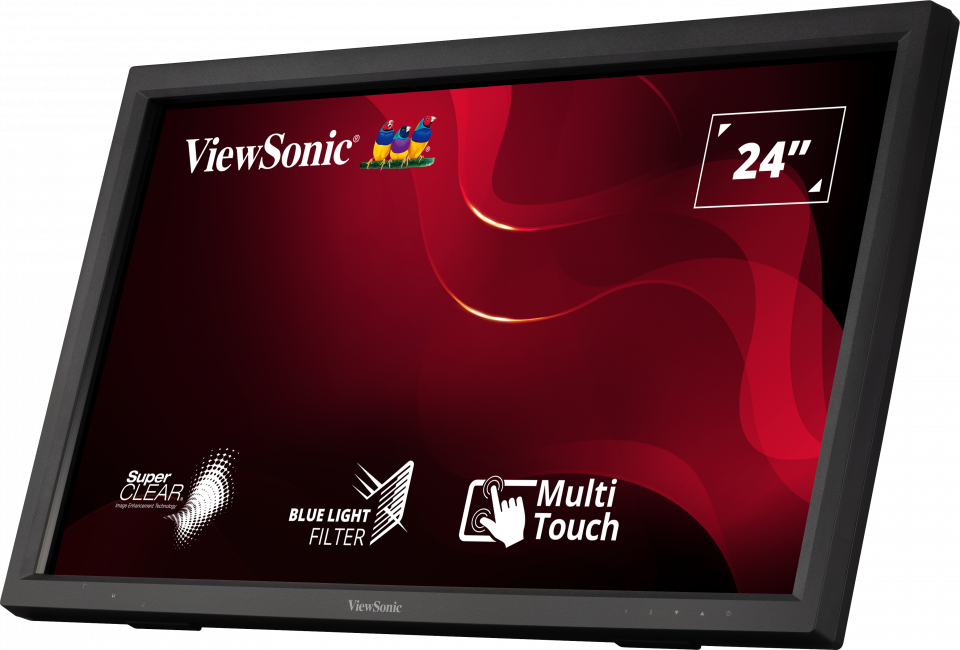

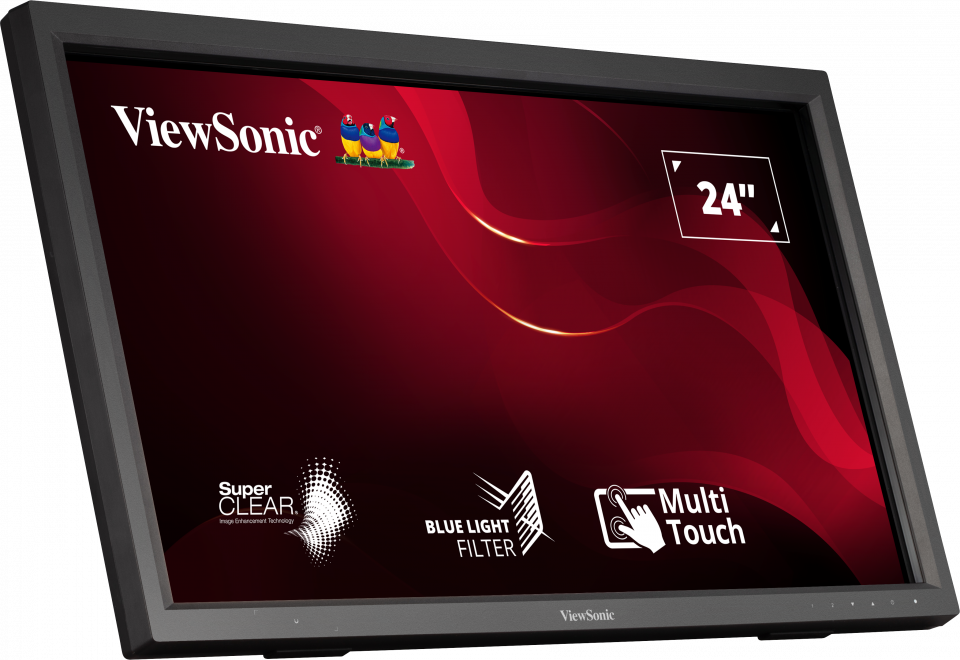

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
*The stylus pen only shown for reference and excluded from the package.

IR Touch Technology

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

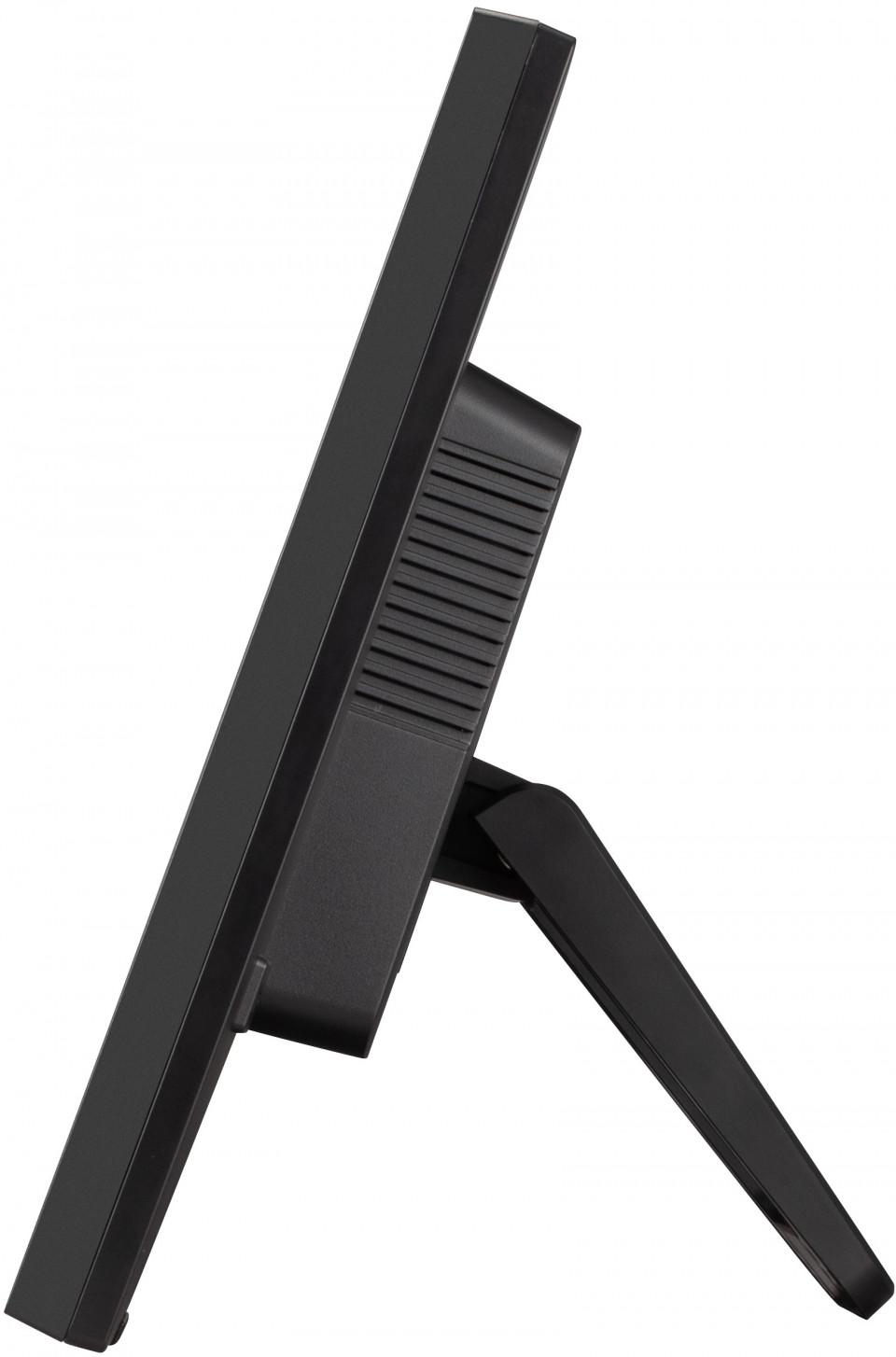

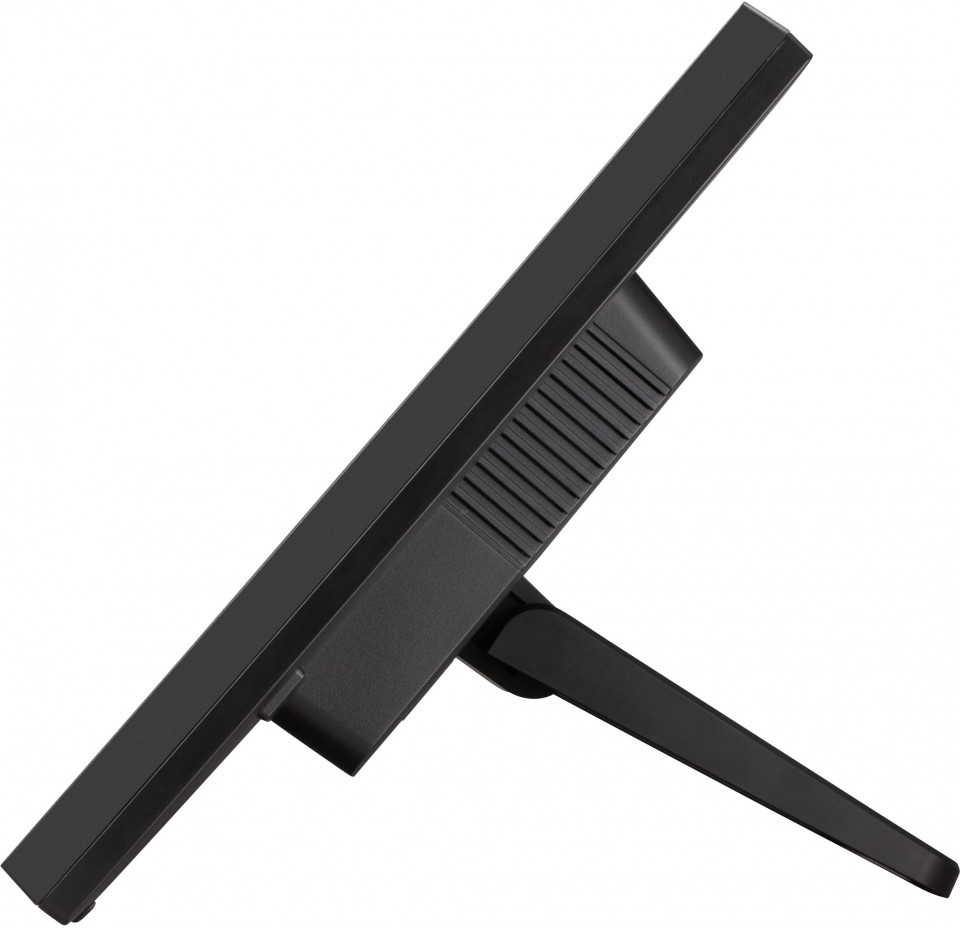

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Full HD 1080p Resolution

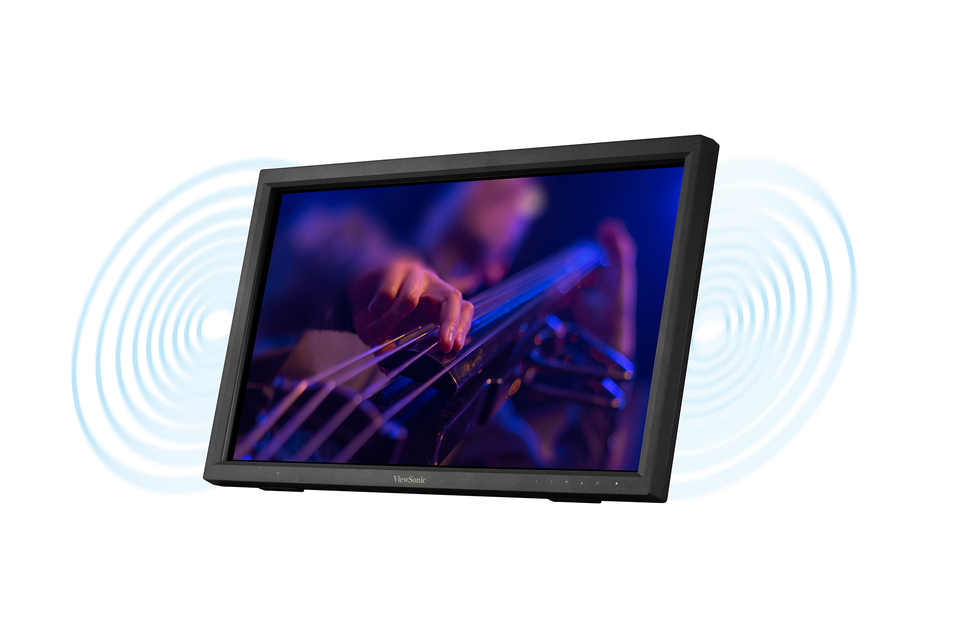

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Certified Environmental Sustainability

The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.

Energy Star & EPEAT

Certified Environmental Sustainability 1

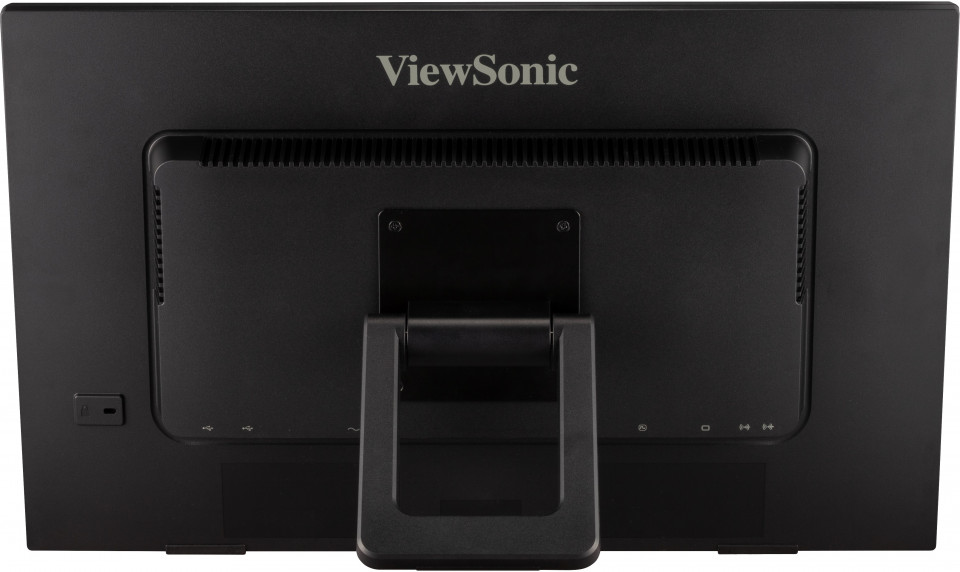

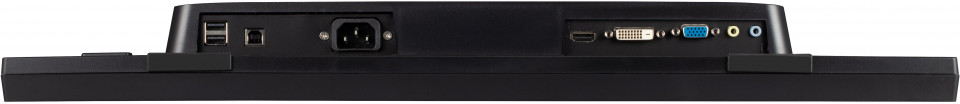

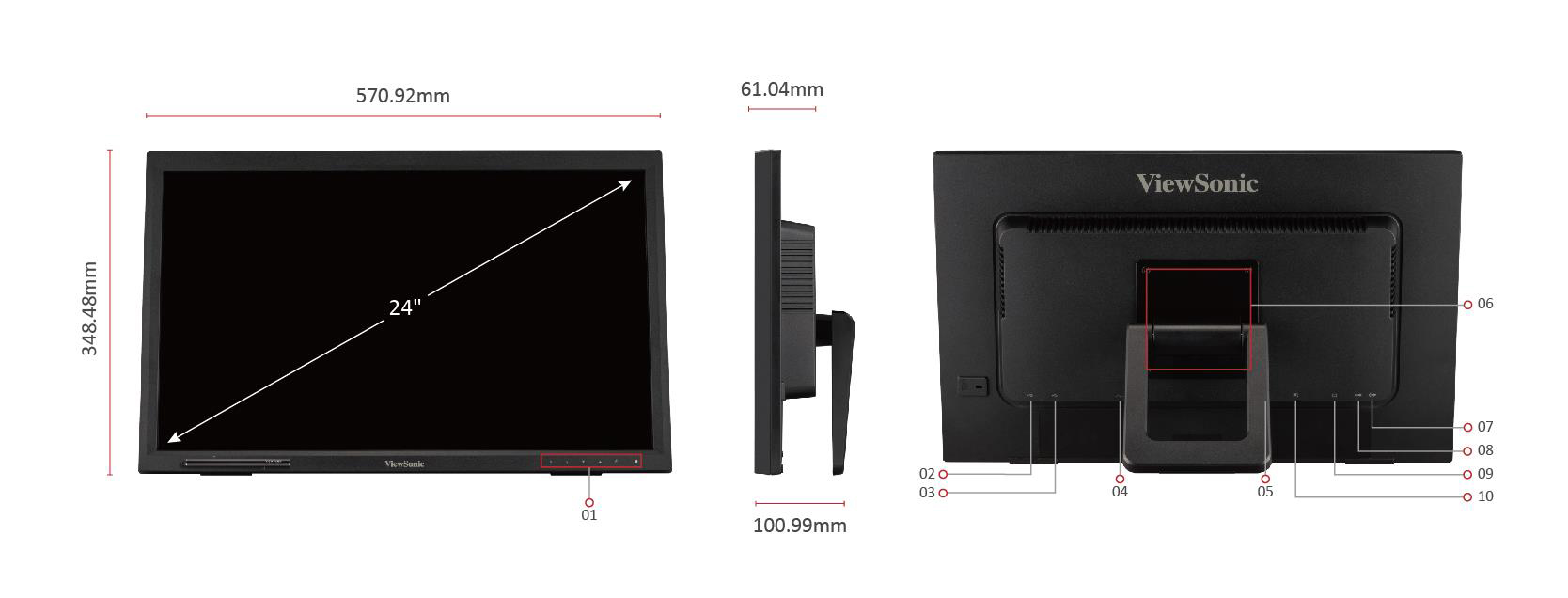

Dimension & I/O Ports

Menu Control Panel
USB Down Stream x 2
USB UP Stream
AC In
HDMI
VESA Compatible
(Wall Mount 100 x 100mm)
Earphone Out
Audio In
VGA
DVI

ข้อมูลจำเพาะ

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Response Time (GTG w/OD): 7ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Touch Screen: IR, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.85mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 11.5W
Eco Mode (optimized): 13.5W
Consumption (typical): 15.5W
Consumption (max): 16.5W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): 20º / 40º
Weight (imperial)
Net (lbs): 11.5
Net Without Stand (lbs): 10.3
Gross (lbs): 15.4
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 4.7
Gross (kg): 7
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.4 x 16.6 x 6.5
Physical (in.): 22.5 x 13.7 x 4
Physical Without Stand (in.): 22.5 x 13.7 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 645 x 422 x 166
Physical (mm): 571 x 348 x 101
Physical Without Stand (mm): 571 x 348 x 61
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS
PACKAGE CONTENTS: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
