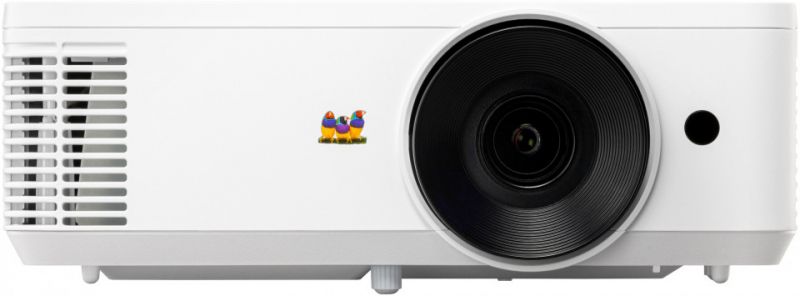

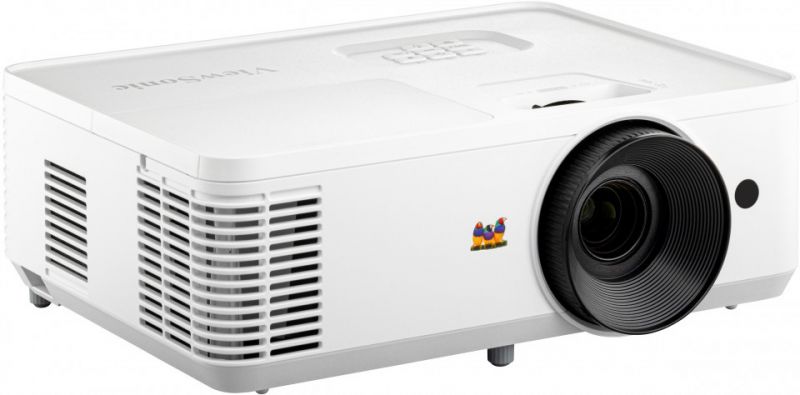

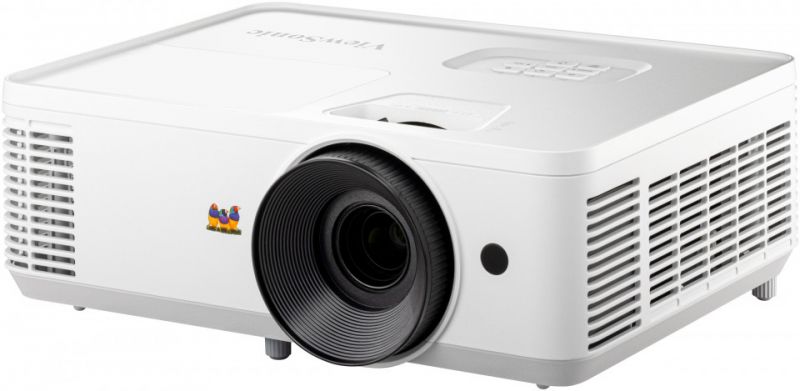

PA700X

4,500 ANSI Lumens XGA Business & Education Projector​

  • 4,500 ANSI Lumens, offering clear images in any environment​
  • Up to 300" ultra large screen with lower cost-per-inch ​
  • Easy and flexible connection: dual HDMI ports, USB Type-A port​
  • Vivid colors with ViewSonic's SuperColor™ Technology​
  • Convenient software updates for projectors via USB connection
สอบถามรายละเอียดการขาย  แบ่งปัน

ภาพรวม

The PA700X is ViewSonic’s high brightness XGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​

High Brightness for Business & Education Environments​

Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
4,500 ANSI Lumens
High Brightness for Business & Education Environments​ 1

Ultra-Large Screen with Lower Cost-per-inch​​

The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Up to 300"
Ultra-Large Screen with Lower Cost-per-inch​​ 1

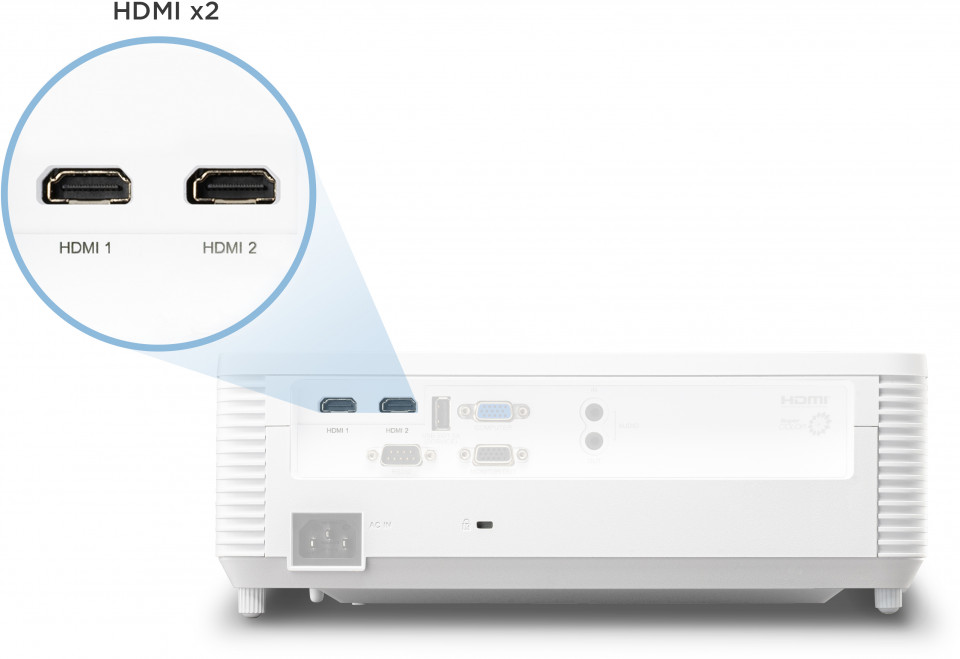

Easy and Flexible Connection​

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.​
Dual HDMI Ports
Easy and Flexible Connection​ 1

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
Present the Best with Vibrant Colors 1

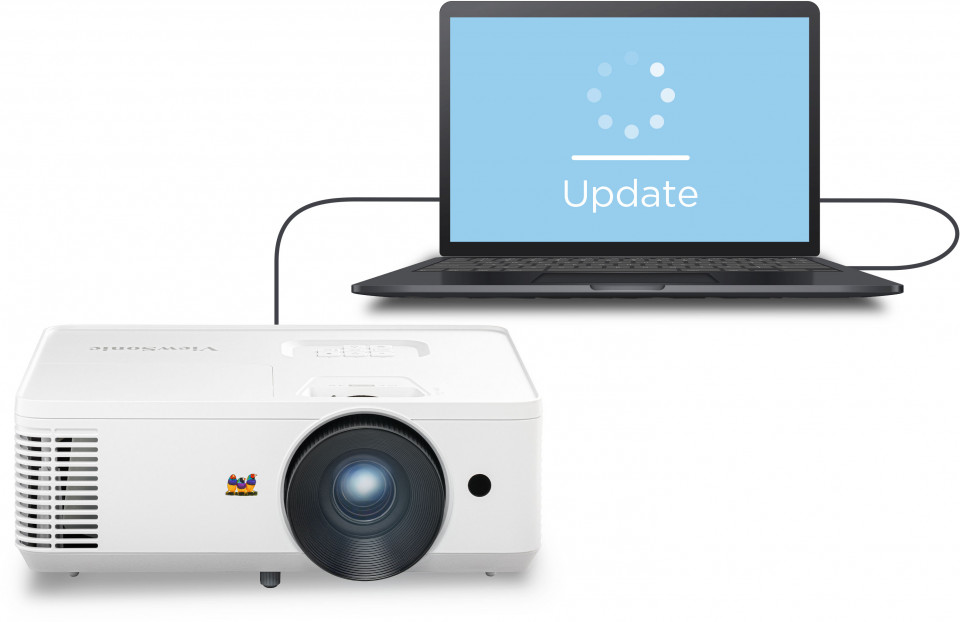

A Simpler Way to Update Projector Software​

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.​​
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.​
A Simpler Way to Update Projector Software​ 1

USB Type A Power Supply​

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
USB Type A Power Supply​ 1

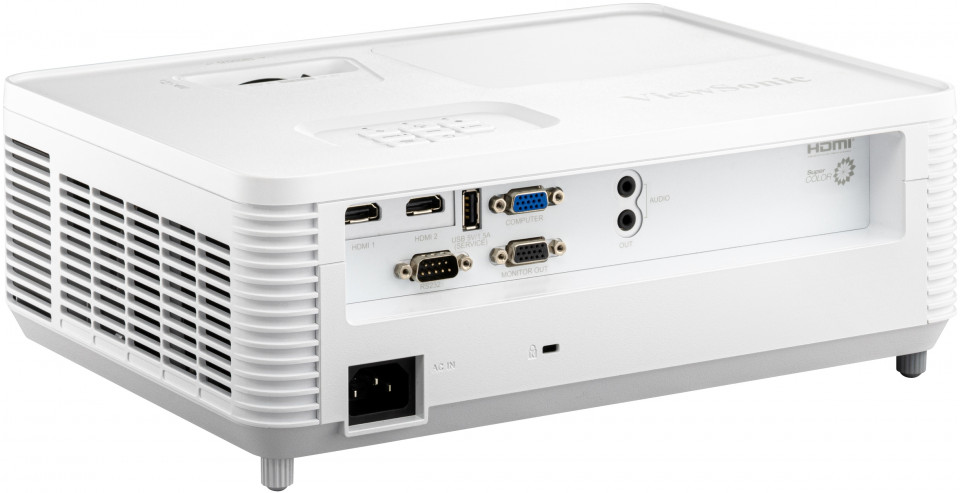

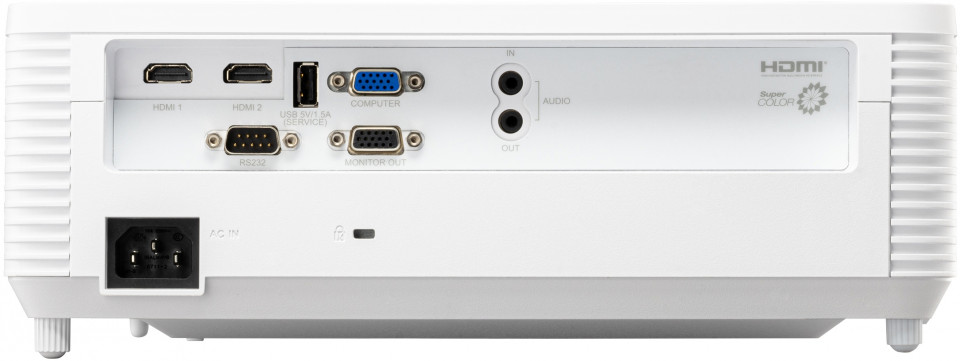

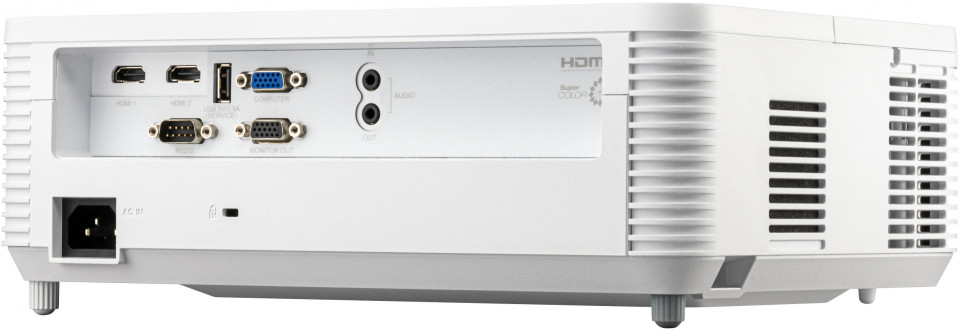

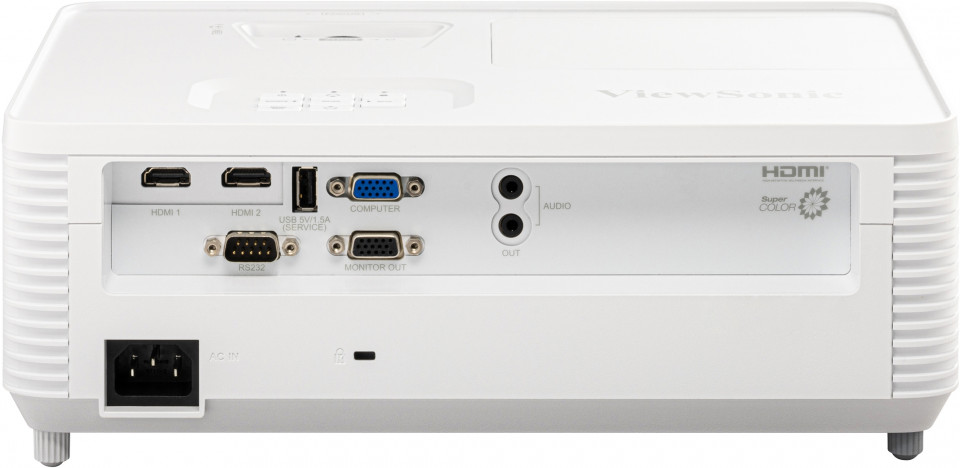

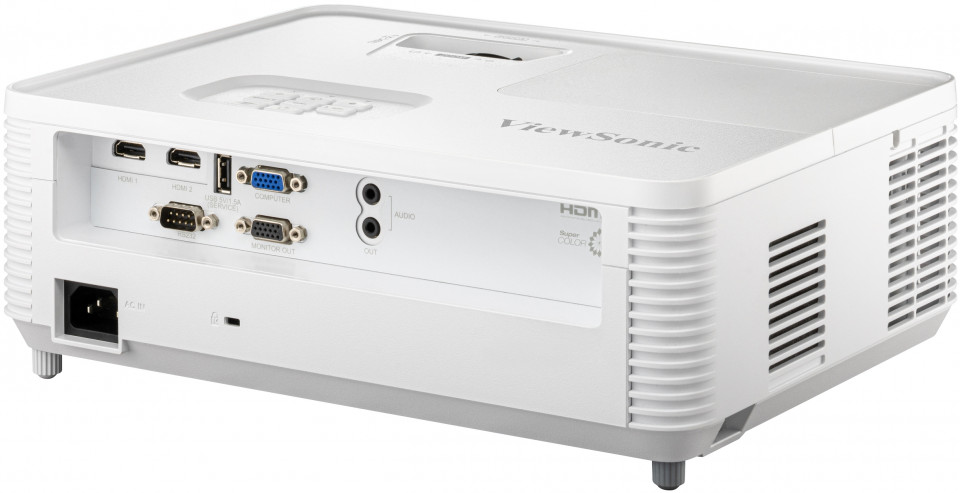

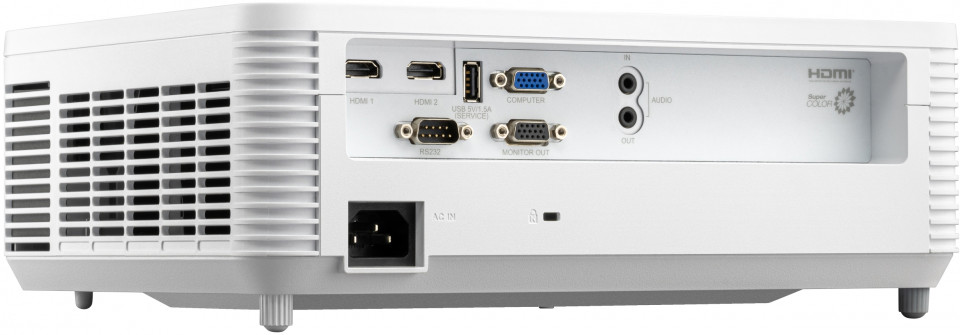

Dimensions & I/O Ports

  1. Adjustment Foot
  2. Lens
  3. Front IR
  4. HDMI 1
  5. HDMI 2
  6. USB-A(5V/1.5A, Service)
  7. Computer In
  8. Audio In
  9. AC In
  10. R232
  11. Kensingtion Lock
  12. Monitor Out
  13. Audio Out

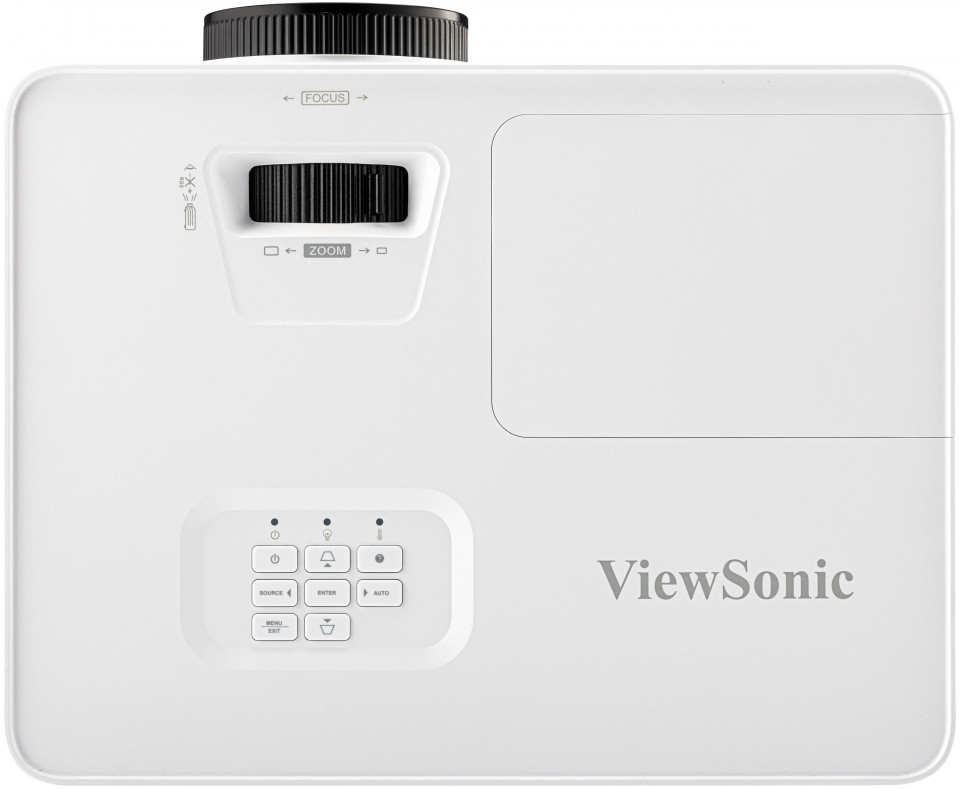

  14. Focus Ring
  15. Zoom Ring
  16. LED Indicator
  17. Keypad

ข้อมูลจำเพาะ


  • Specification
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    Brightness: 4500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12500:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lens: F=2.42-2.53, f=21.85-24.01mm
    Projection Offset: 130%+/-10%
    Throw Ratio: 1.94-2.16
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.18m-13.17m
    (100"@3.94m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco) : 25dB
    Input Lag: 33.2ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • Input
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 3W
    USB Type A (Power): 1 (5V/1.5A)
