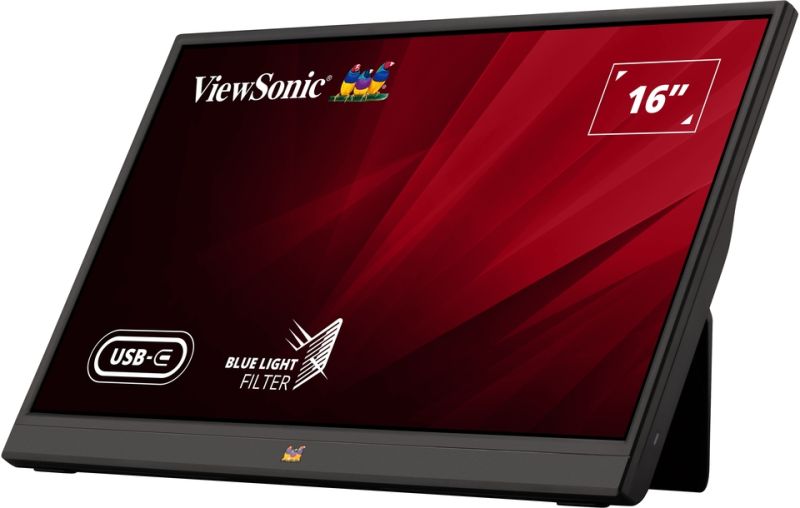

VA1655-3

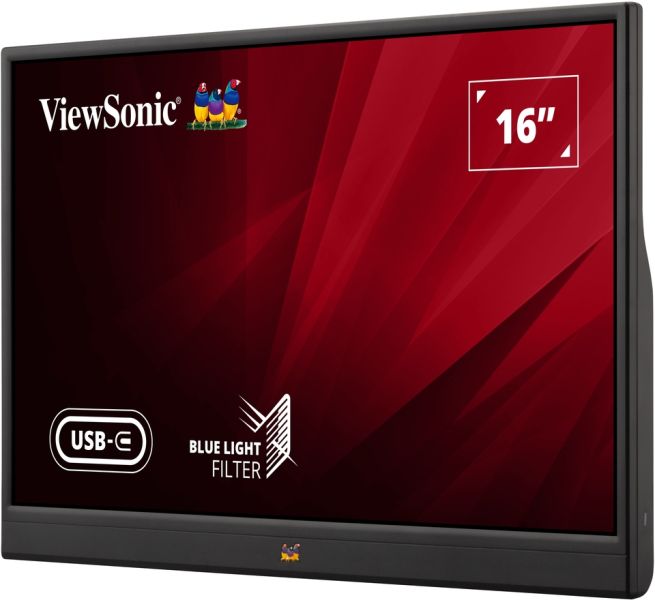

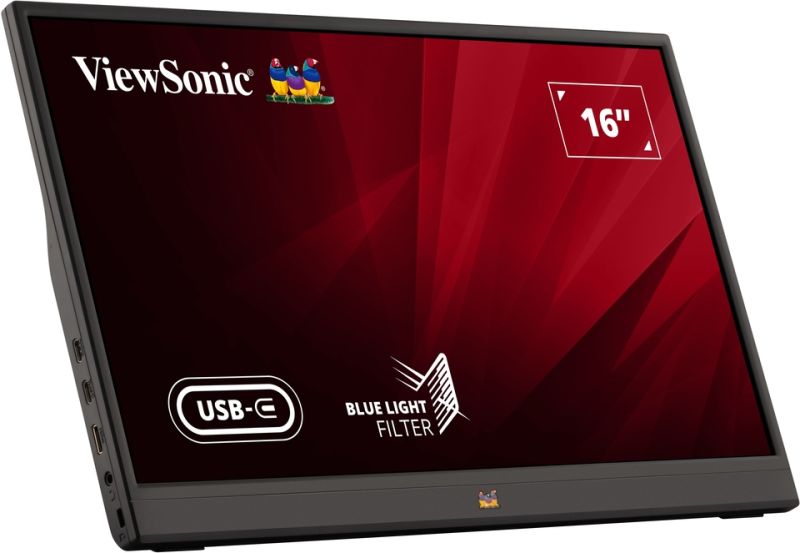

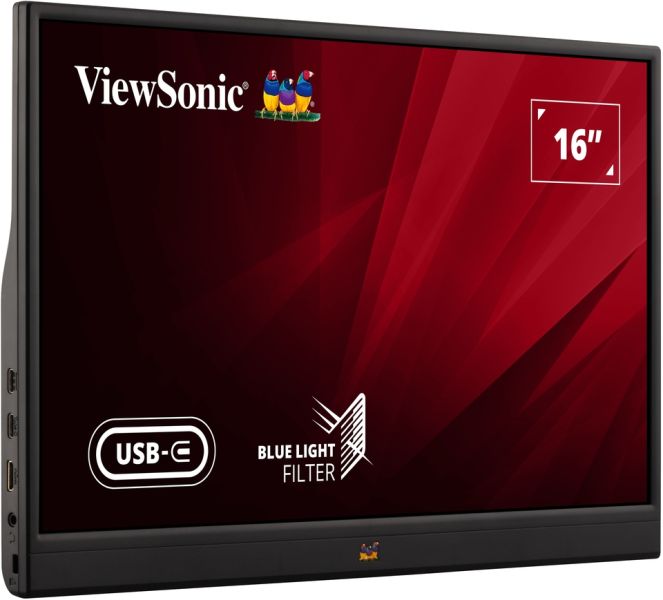

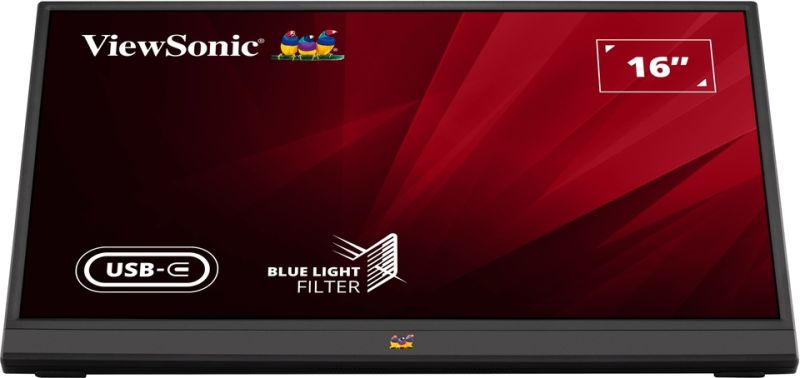

16” USB-C Lightweight Portable Monitor

Compact, lightweight and portable
Easily extend display to a larger screen from mobile devices
60W USB-C one cable solution for multimedia transfer and power charging*
Lightweight plastic case design with a foldable stand
Flexible display setup – work at any angle

*External power adaptor required for power charging

แหล่งซื้อสินค้า แบ่งปัน

ภาพรวม

The ViewSonic VA1655-3 is a lightweight, portable 16” Full HD monitor with USB-C connectivity for multimedia transfer and power charging. Designed to boost productivity on the go, extend your screen from a phone, tablet, or laptop to a larger display anytime, anywhere. With a foldable stand and a pivotable display, freely adjust the screen’s viewing angles and display layouts — whether in landscape or portrait orientation — to match your preferred work setup.

Take Productivity with You

Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the VA1655-3 portable monitor, perfect for multitasking and meetings on-the-go.

Extend Mobile Devices’ Display to a Larger 15.6” Viewable Screen

Carry with Ease

Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.

Thin & Lightweight 9.85 mm, 0.7 KG

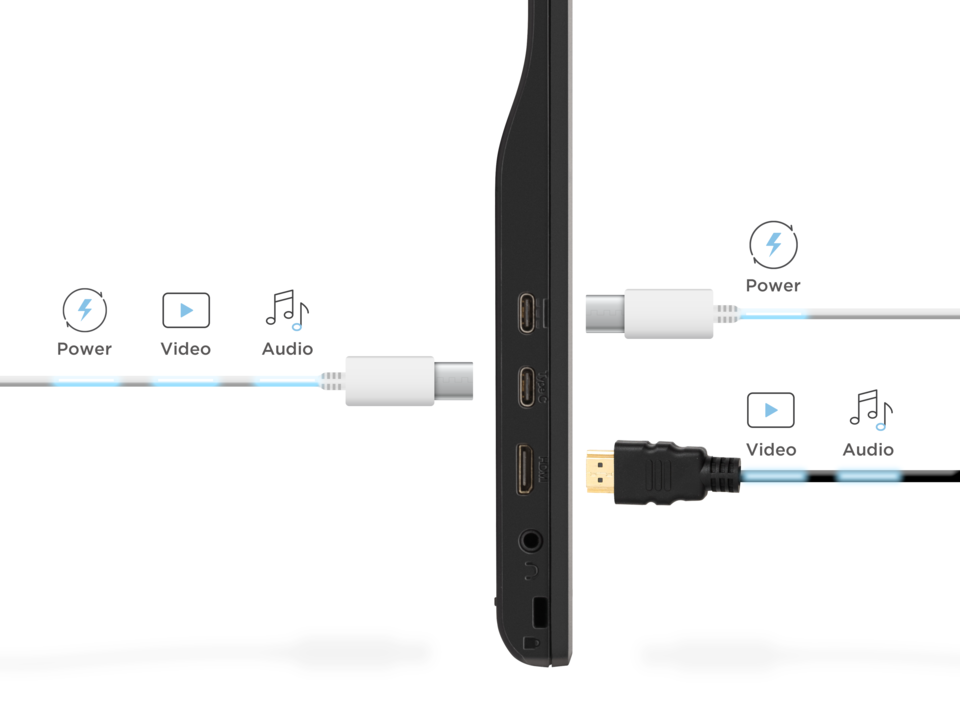

Work Anywhere with Flexible Connectivity

Connect seamlessly to various multimedia devices using USB-C, mini-HDMI and a 3.5 mm headphone jack.

Multiple Connectivity Options

Work Anywhere with Flexible Connectivity 1

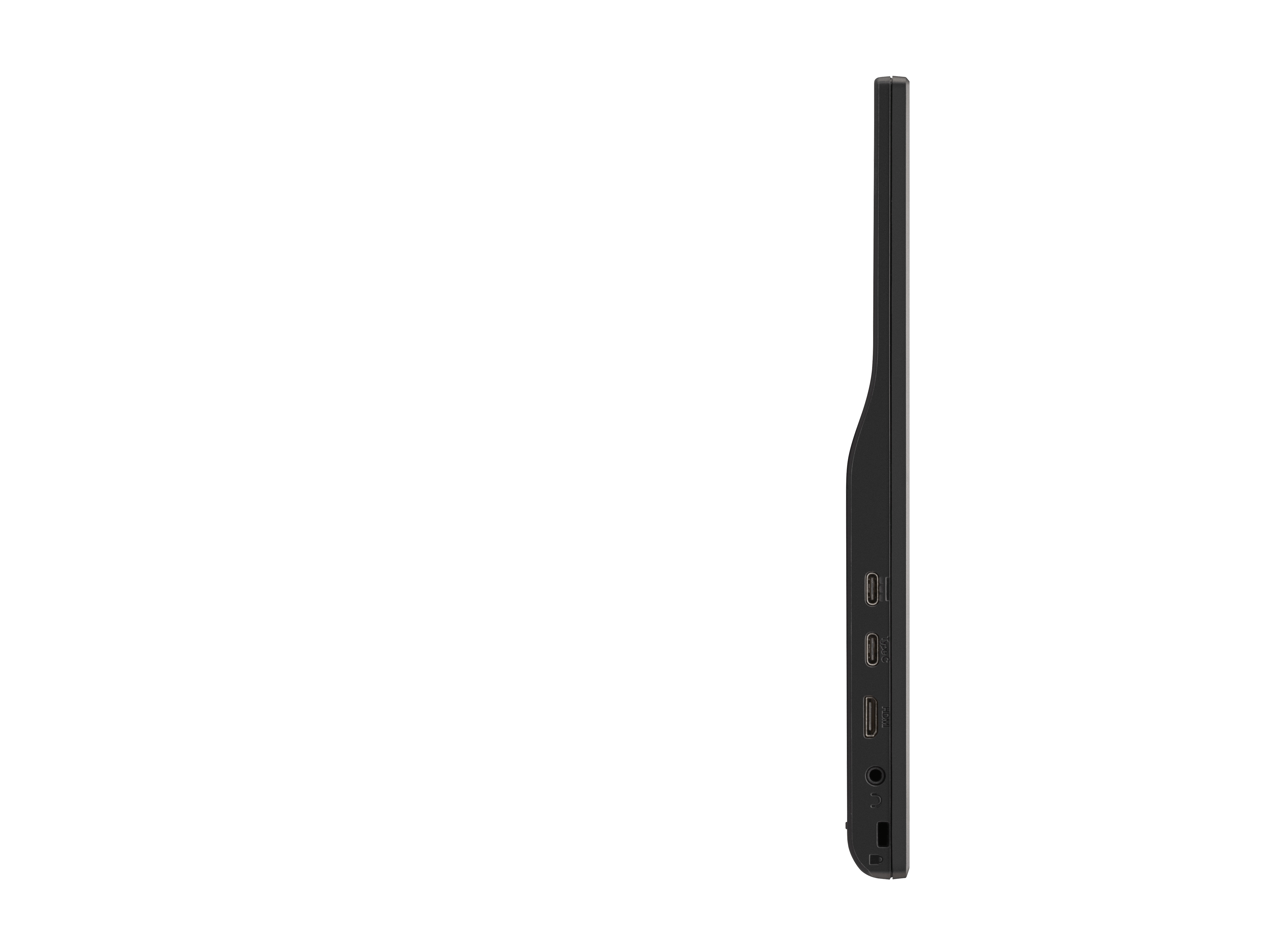

Choose Your Desired Working Angle

Easily adjust the screen viewing angle with the built-in foldable stand, featuring a durable hinge that can tilt up to 53 degrees.

Built-in Foldable Stand with Durable Hinge

Pivotable Display

Switch between landscape and portrait display orientations, with the portrait layout ideal for tasks like table reviewing, programming, photo editing, gaming, and more.

* To change the display orientation, go to the display setting on your device.

Landscape & Portrait Mode

Seamless Operation Across Multi-Device

Easily connect your laptop, tablet, or phone to the VA1655-3 portable monitor, which is compatible with multiple operating systems including Windows, MacOS, Chrome, Android, iOS, and iPadOS.

* Smart device needs Display Port 1.2 Alt Mode and USB-C Power Delivery.
** iPhone/iPad use requires Lightning to HDMI Adapter, HDMI to mini-HDMI cable (included), and external power source.

Android and iOS Compatible

Seamless Operation Across Multi-Device 1

Low Energy Consumption

Designed with energy efficiency in mind, ViewSonic’s Eco Mode successfully reduces carbon footprint and significantly lowers office overhead costs.

Eco Mode

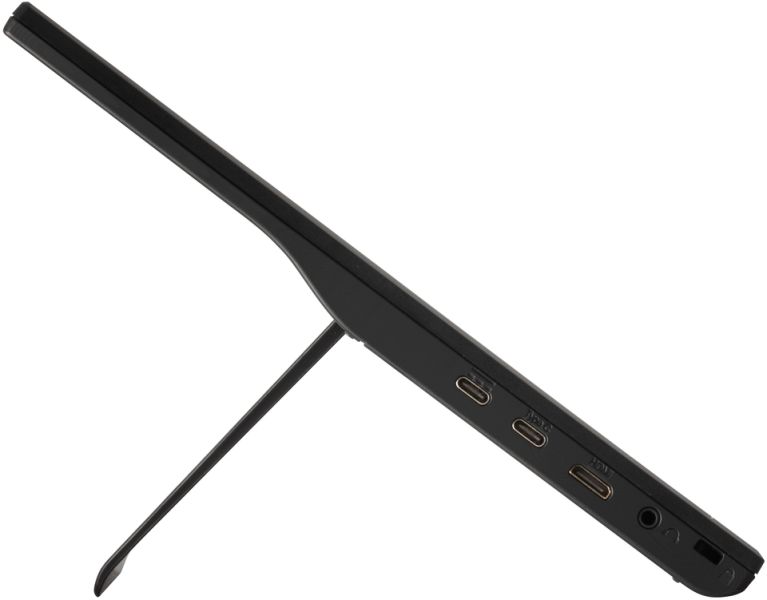

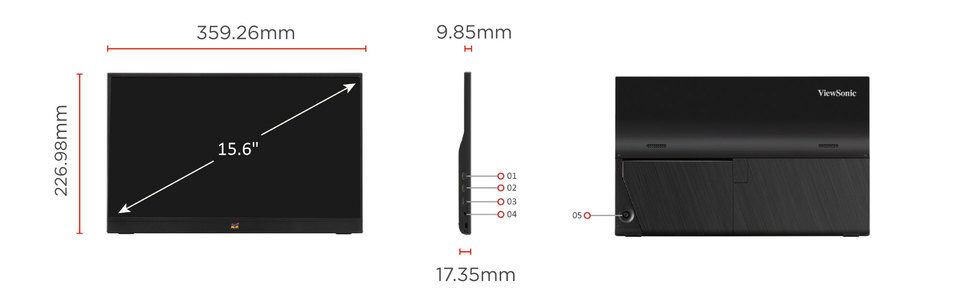

Dimensions & I/O Ports

USB Type C (Power) x1
USB Type C x 1
Mini HDMI
Audio Out
Joy Key

ข้อมูลจำเพาะ

Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type C DisplayPort Alt mode only : 1 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (power only)

Audio
Internal Speakers: 0.8Watts x2
Power
Eco Mode (Conserve): 5.1W
Eco Mode (optimized): 6W
Consumption (typical): 7W
Consumption (max): 7.3W
Voltage: DC 5V/9V/12V/15V/20V
Stand-by: 0.3W
Power Supply: External (Optional)
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: mini HDMI (v1.4): 15 ~ 82KHz, Type C: 24 ~ 82KHz
Frequency Vertical: mini HDMI (v1.4): 50 ~ 75Hz, Type C: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Ergonomics
Tilt (Forward/Back): 30º / 53º
Weight (imperial)
Net (lbs): 1.5
Net Without Stand (lbs): 1.5
Gross (lbs): 3.7
Weight (metric)
Net (kg): 0.7
Net Without Stand (kg): 0.7
Gross (kg): 1.7
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.1 x 15.4 x 3.5
Physical (in.): 14.14 x 8.94 x 0.68
Physical Without Stand (in.): 14.14 x 8.94 x 0.68
Dimensions (metric) (wxhxd)
Packaging (mm): 434 x 391 x 88
Physical (mm): 359.26 x 226.98 x 17.35
Physical Without Stand (mm): 359.26 x 226.98 x 17.35
General
Regulations: cTUVus, FCC-B, ICES003, CEC, NRCan, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS

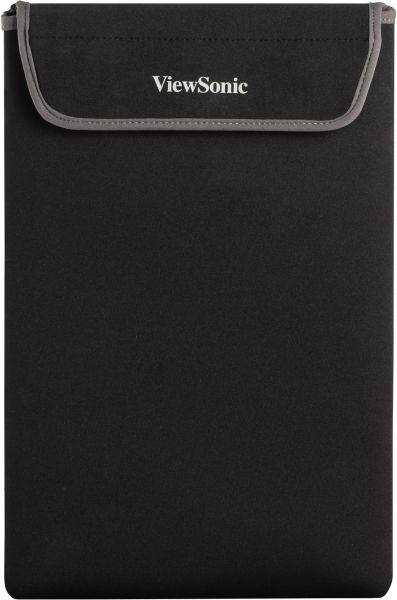

PACKAGE CONTENTS: VA1655-3 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
