Key Features
  • Laser phosphor technology
  • Full HD 1080p resolution
  • 30,000 hours lifespan
  • Built-in HDBaseT receiver
  • H/V lens shift & 1.65X optical zoom

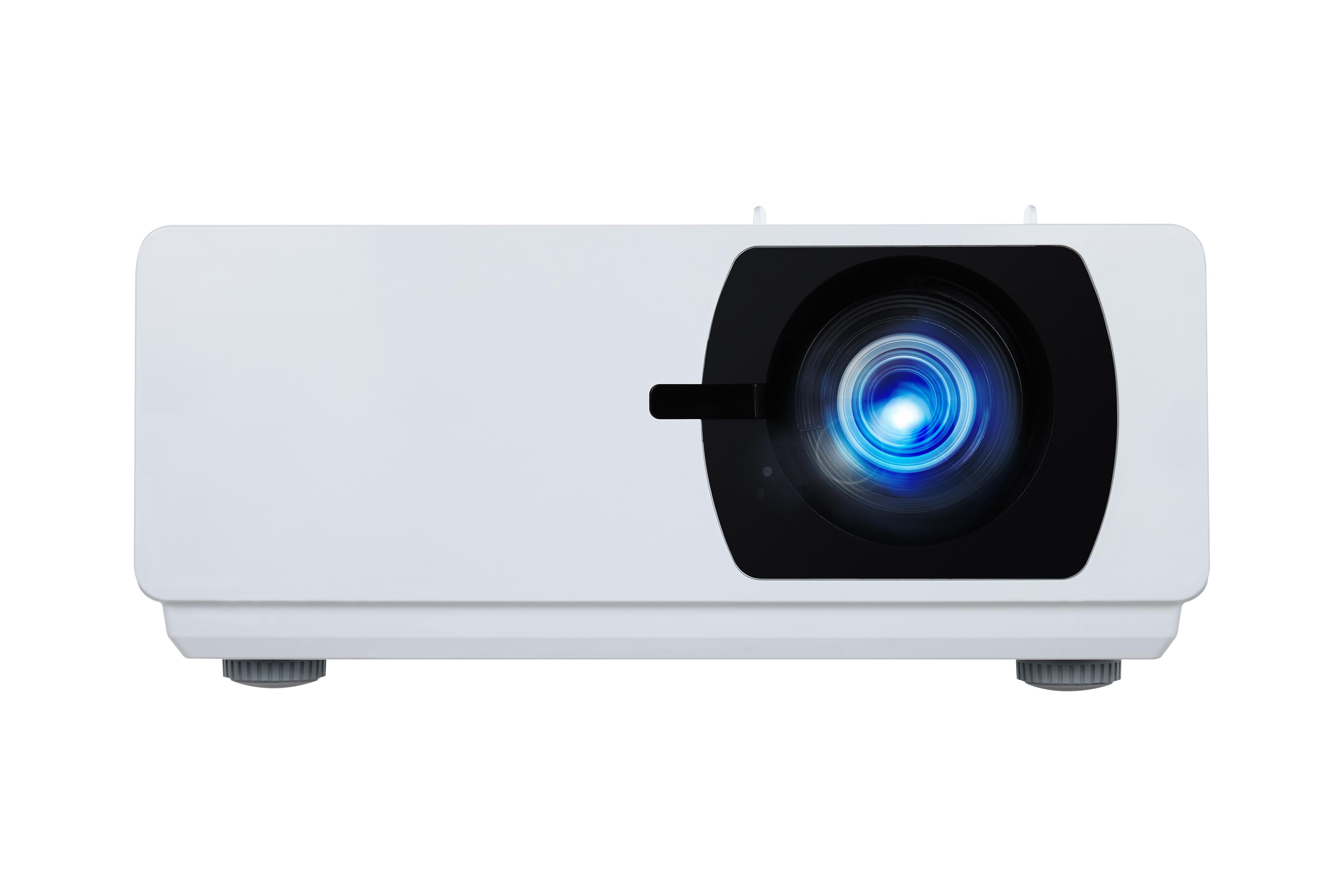

LS800HD
Product Description
The LS800HD shines bright in virtually any environment with 5,000 ANSI Lumens of high-brightness projection and 1080p resolution clarity. The projector comes equipped with a laser phosphor technology capable of achieving up to 30,000 hours of maintenance free projection and is capable of 24/7 continuous operation to provide a dramatically durable solution for public use. H/V lens shift and 1.65X optical zoom offers additional flexibility and makes the projectors adaptable to a wide array of installation settings. The projector’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter. Addition features such as portrait mode and 360-degree projection allow users to deliver a fresh visual perspective for creative applications such as staging and advertising.

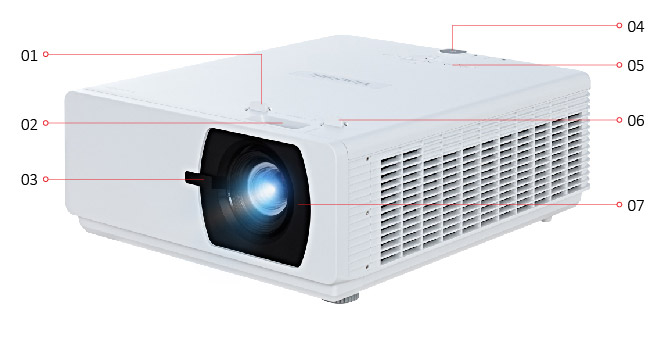

  1. Horizontal lens shift adjustment
  2. 1.65X optical zoom
  3. Front IR
  4. Power Key & Top IR
  5. Keypad
  6. Vertical lens shift adjustment
  7. Focus adjustment

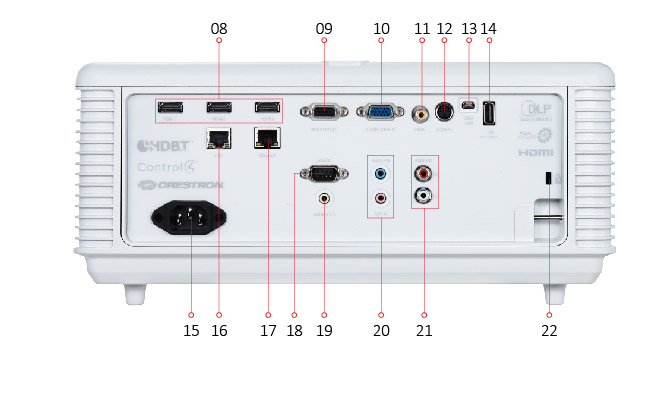

  8. HDMI x3
  9. Computer in
  10. Monitor out
  11. Video
  12. 3D sync(VESA)
  13. Mini USB for Service
  14. USB type A(5V/1.5A)
  15. AC in
  16. LAN(RJ45)
  17. HDBaseT(RJ45)
  18. RS232
  19. Audio out
  20. Audio in/Mic in
  21. Audio in(R/L)
  22. Kensington lock
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1080
    DC type: DC3
    Brightness: 5000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 100000:1
    Display Color: 1.07 Billion Colors‎
    Light Source: Laser Phosphor system
    Light source life (Nor/SuperEco): 20000/30000
    Lamp Watt: Laser Bank x 4
    Lens: f/2.45-3.13, f=17.23-27.9mm
    Projection Offset: 145%+/- 10%
    Throw Ratio: 1.15-1.9
    Image size: 50" - 300"
    Throw Distance: 1.27-7.64m (100"@2.55m)
    Keystone: H:+/-30° , V:+/-25°
    Lens Shift V. Range: Yes (-2.9% +11.8%)
    Lens Shift H. Range: Yes (-2.5% +2.5%)
    Optical Zoom: 1.65x
    Audible Noise (Eco): 32dB
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    Microphone in: 1
    HDMI (HDCP): 3 (HDMI 1.4/ HDCP 1.4)
    3D VESA (Sync): 1
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 5W x 2
    USB type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    HDBaseT: 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 430W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 11.0kg
    Dimensions (WxDxH) w/adjustment foot: 360x440x161mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Remote Control: 1 (w/Laser pointer)
    QSG: 1
