VB-STND-003

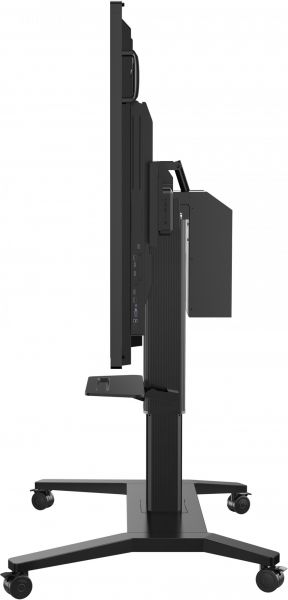

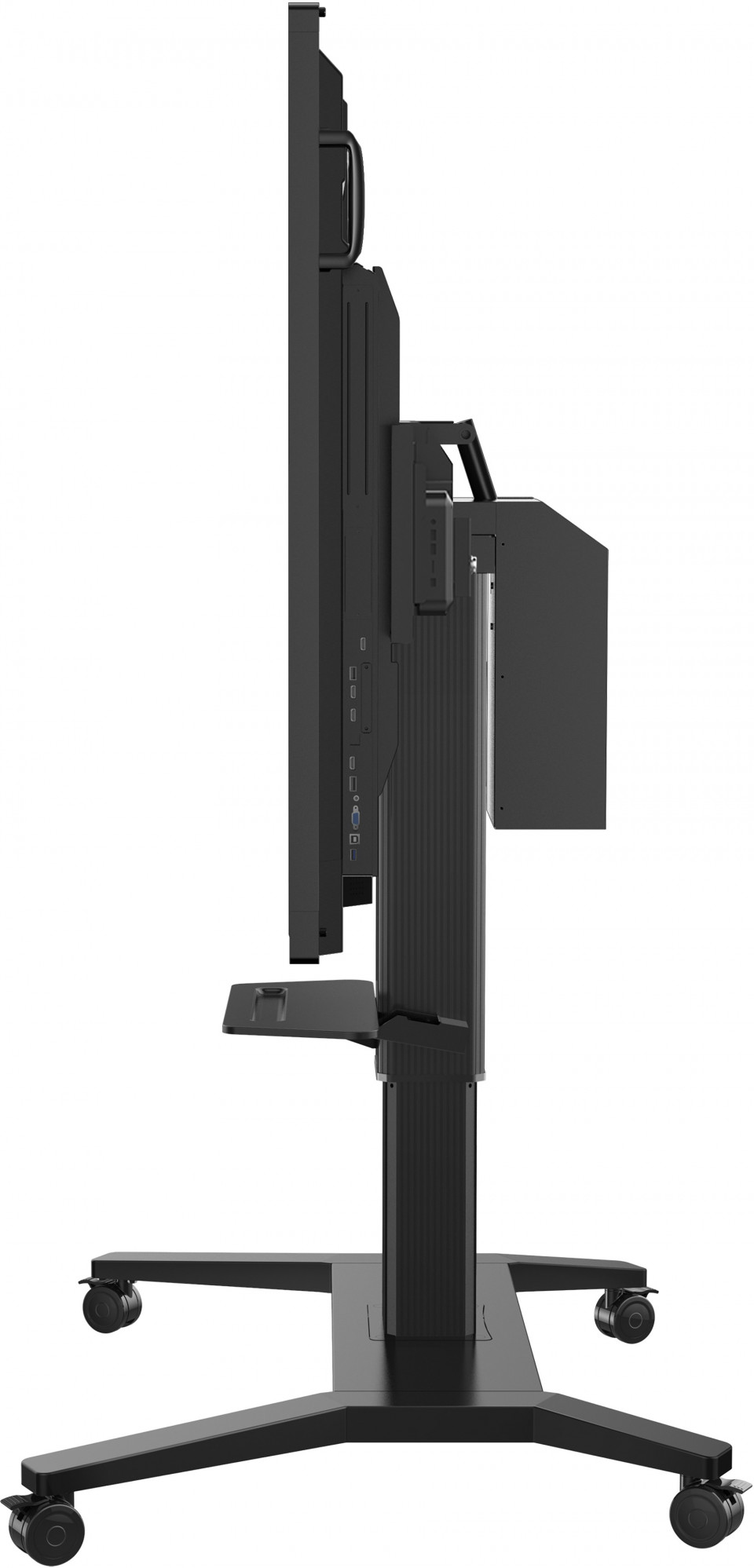

Motorised trolley cart with lift and tilt

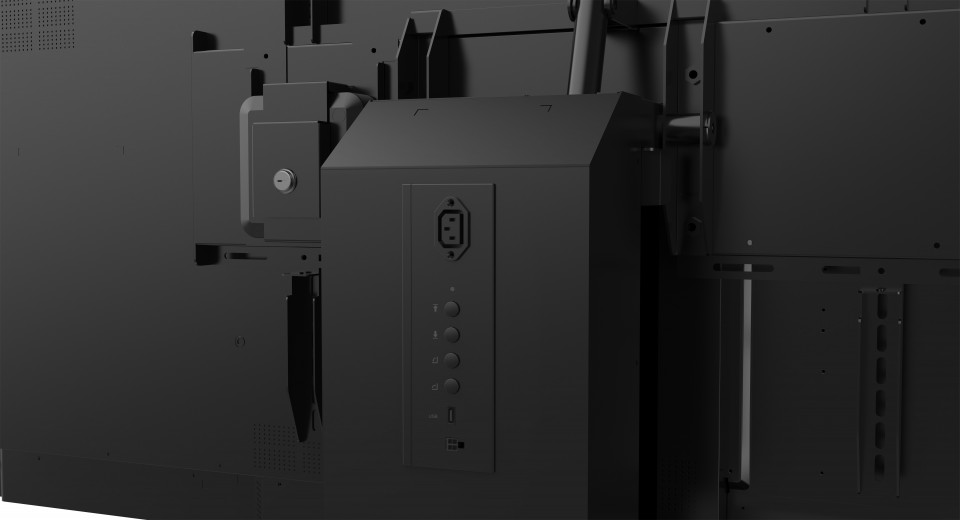

Built-in power supply passthrough
Integrated on-screen control (IFP5550 / IFP6550 / IFP7550)

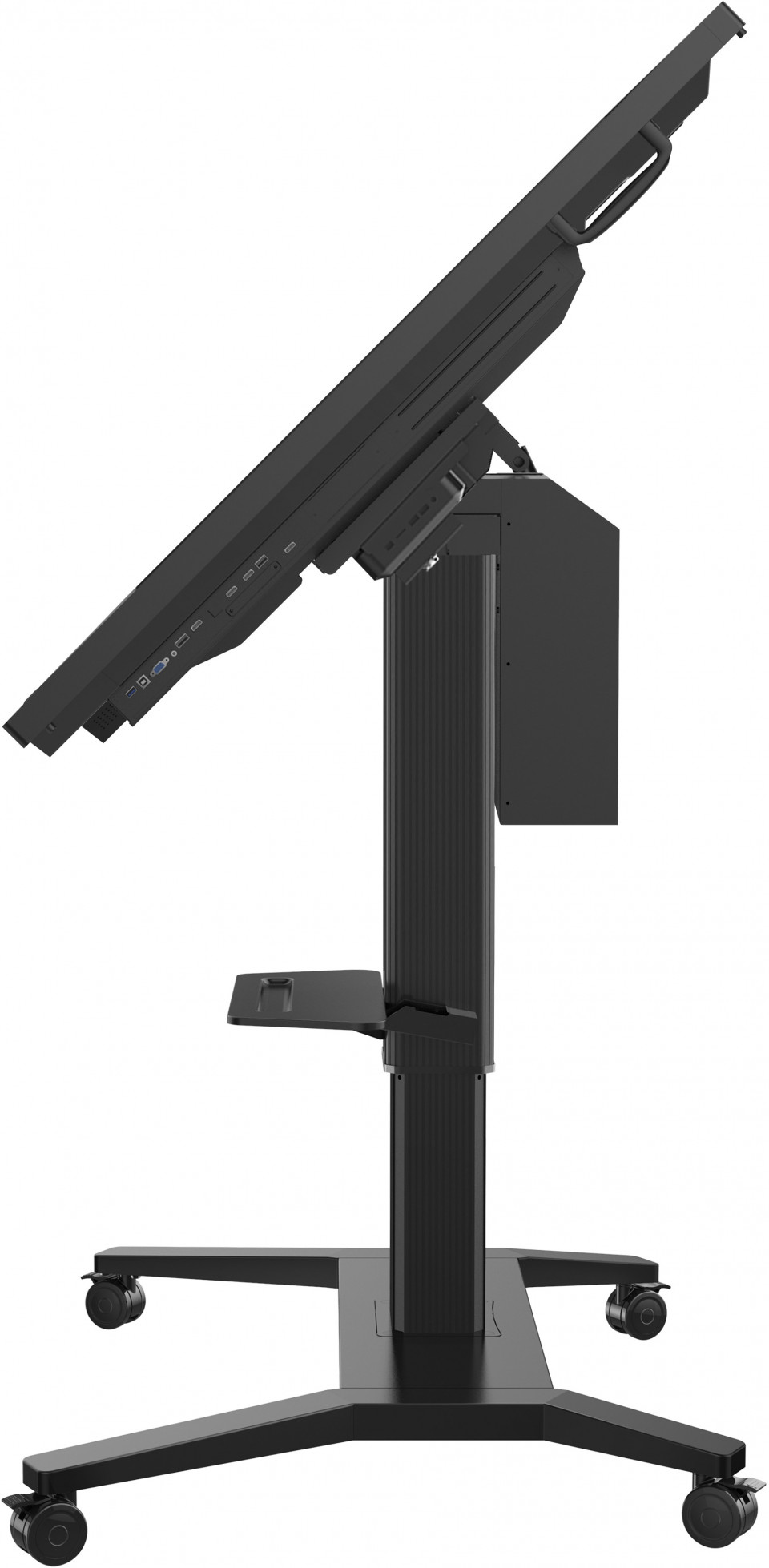

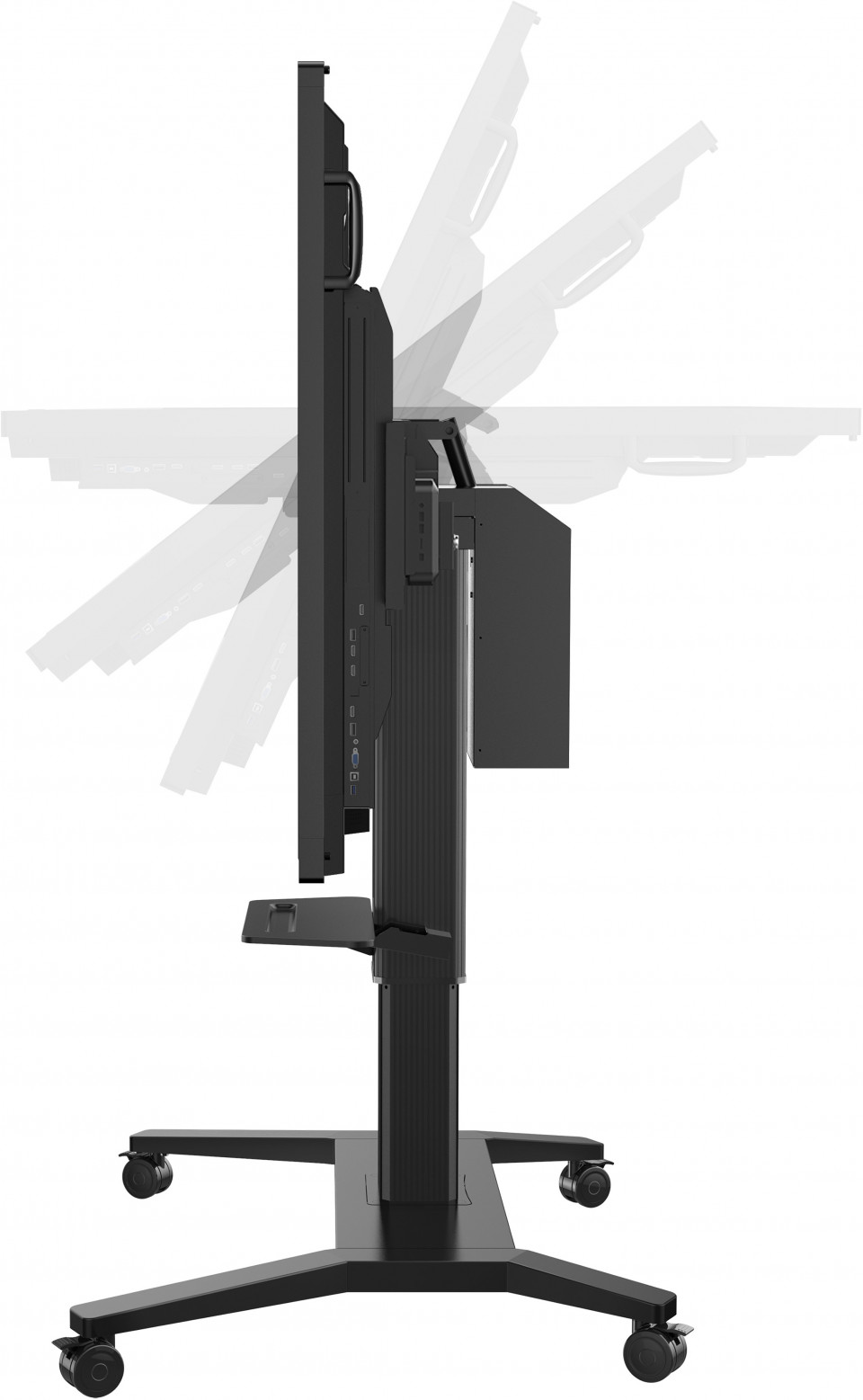

90-degree tilting for tabletop mode
Integrated tray for pens and other items

Sales Enquiry Share

GALLERY

OVERVIEW

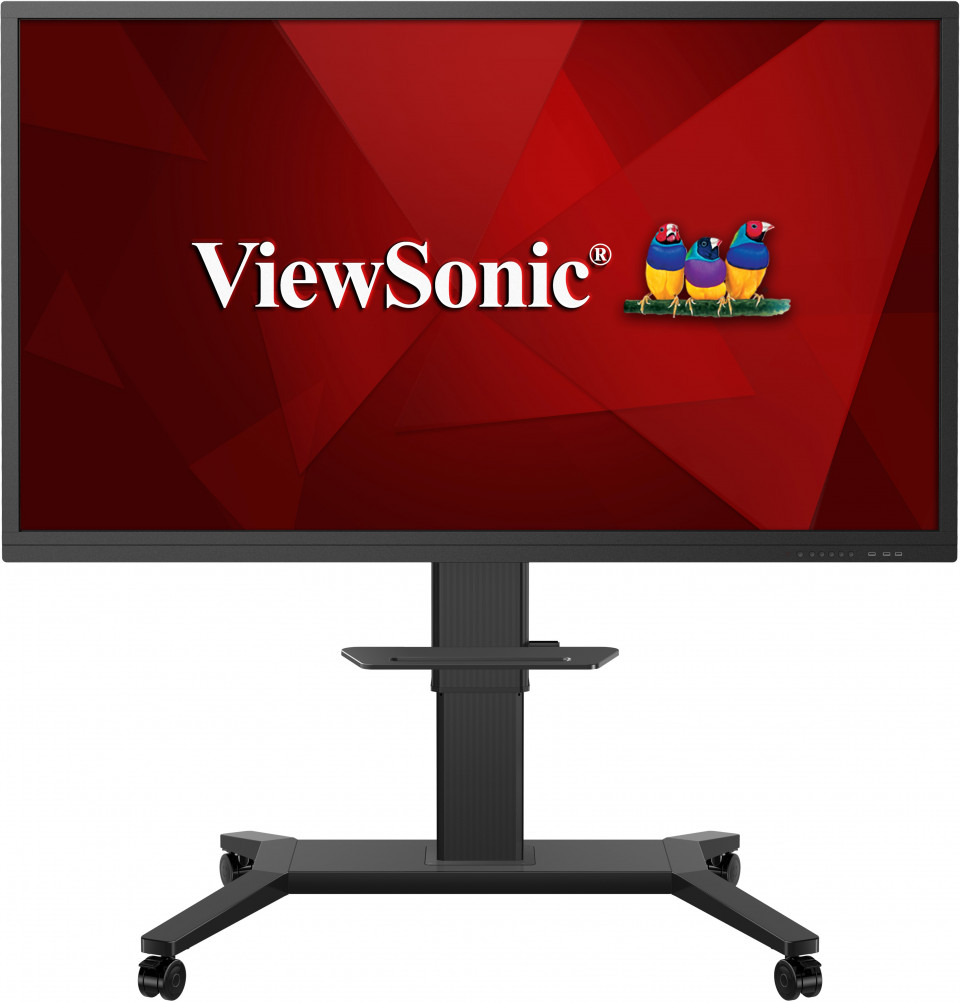

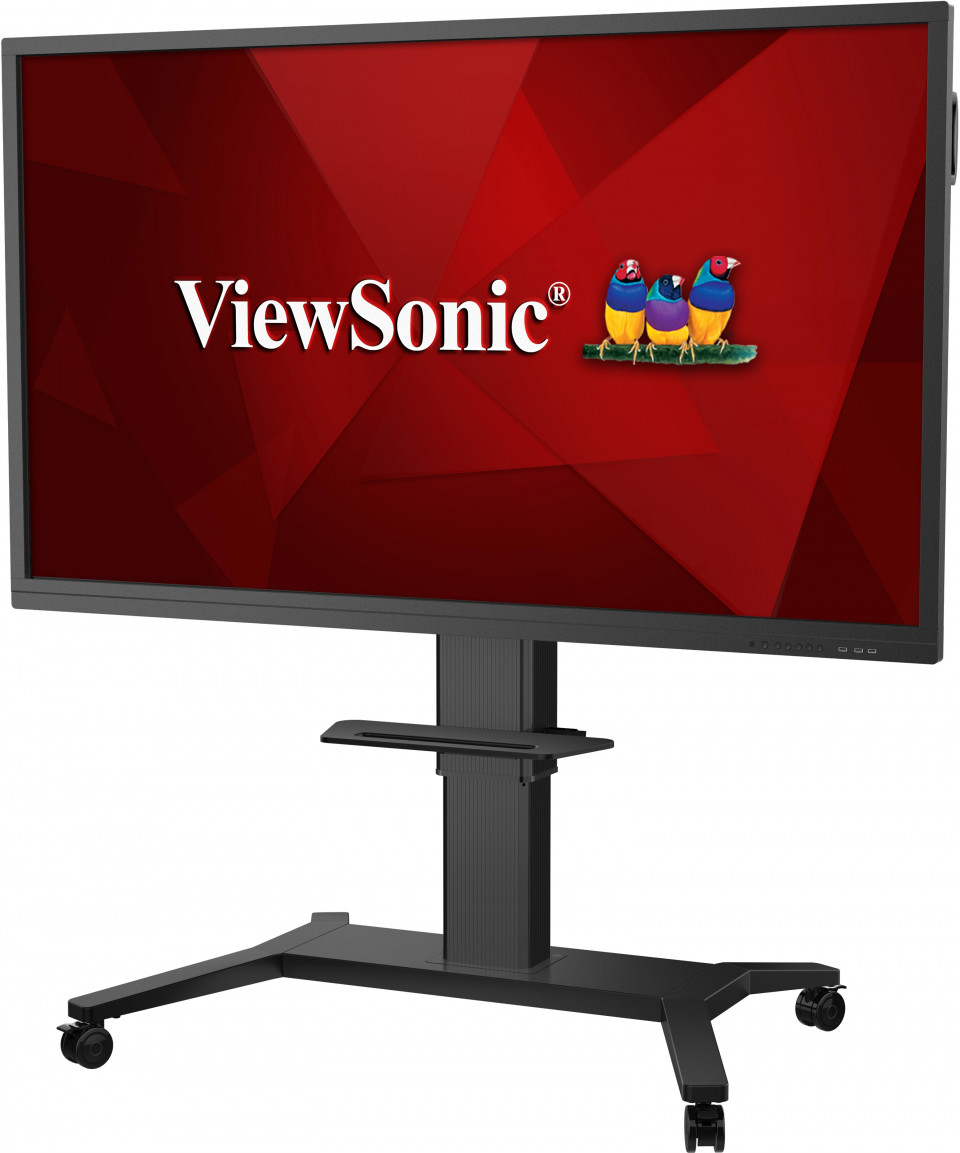

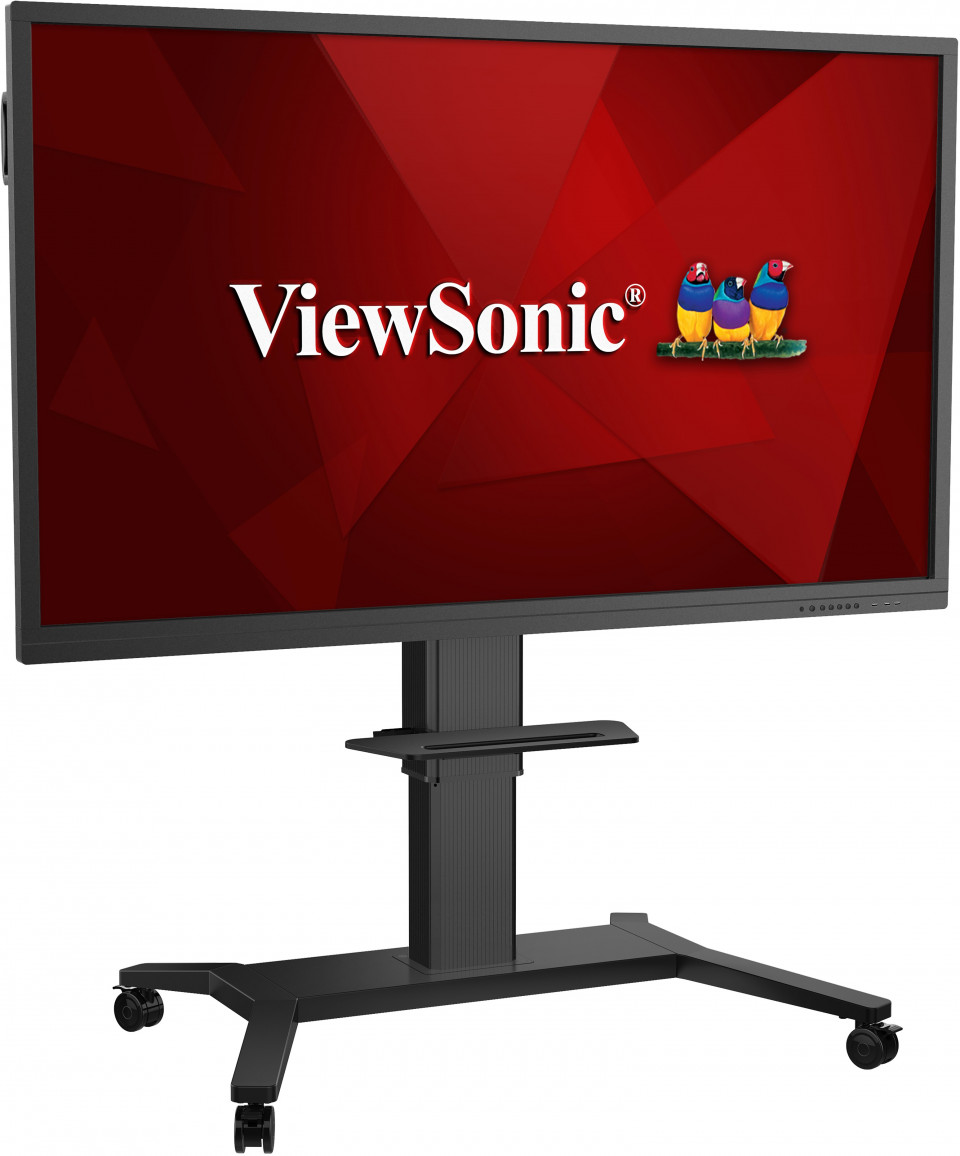

Featuring smooth motorized lift and tilt, the ViewSonic® VB-STND-003 motorized trolley cart securely accommodates ViewSonic 55”, 65”, 75”, and 86" ViewBoard® interactive flat panel displays, or any display weighing up to 100 kg. With integrated on-screen control, the cart can be manipulated directly from the ViewBoard touchscreen (IFP50 series only), allowing you to easily raise, lower, or tilt the ViewBoard with a single tap. Tilt just a bit for customized viewing, tilt a bit more for a drafting table feel, or position horizontally in tabletop mode* to create an interactive learning table or huddle space. With sturdy, quiet wheels, this mobile cart lets you move the ViewBoard display from room to room for easy sharing of resources. *Tabletop mode not recommended for displays greater than 65" diagonal

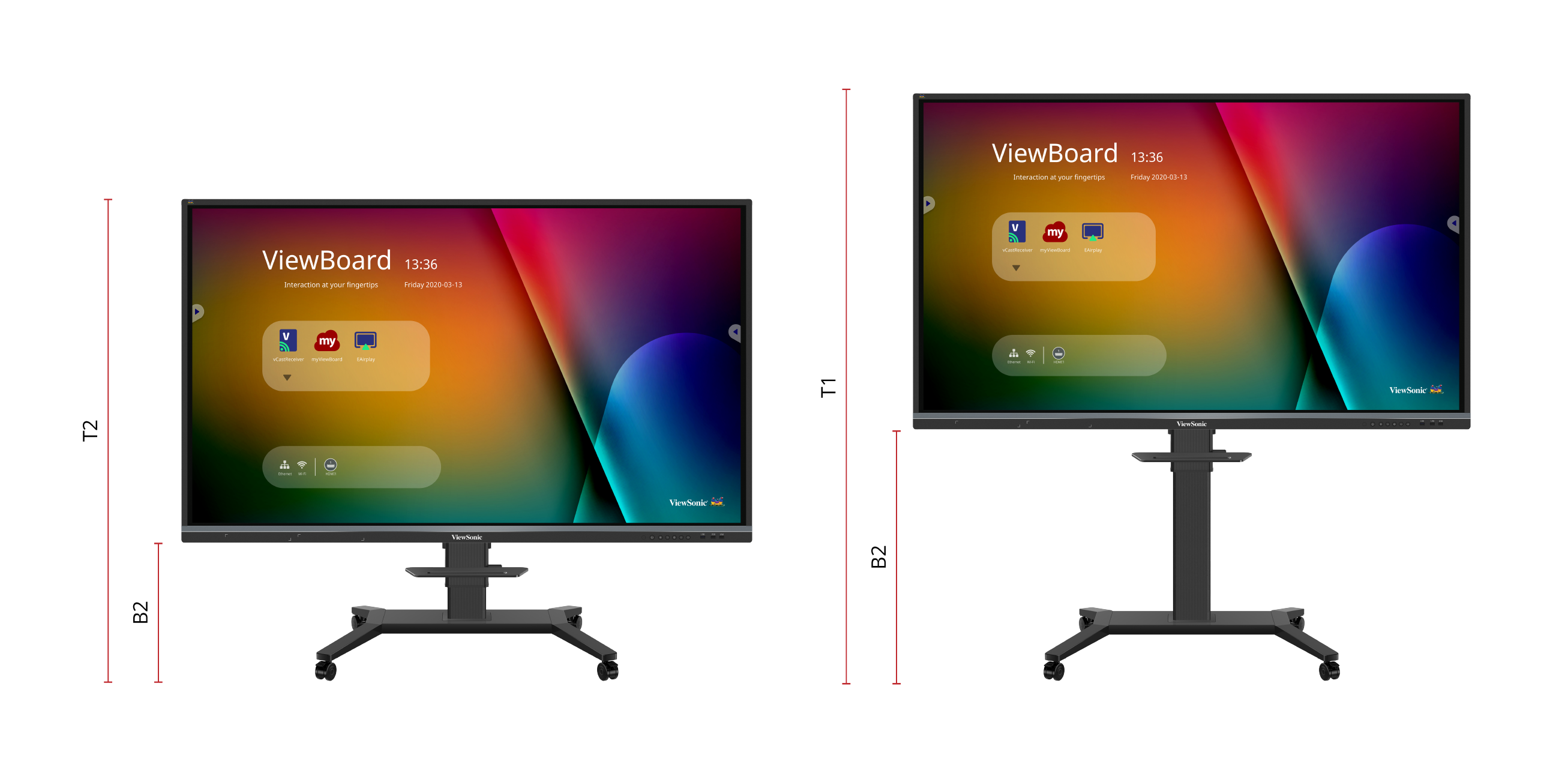

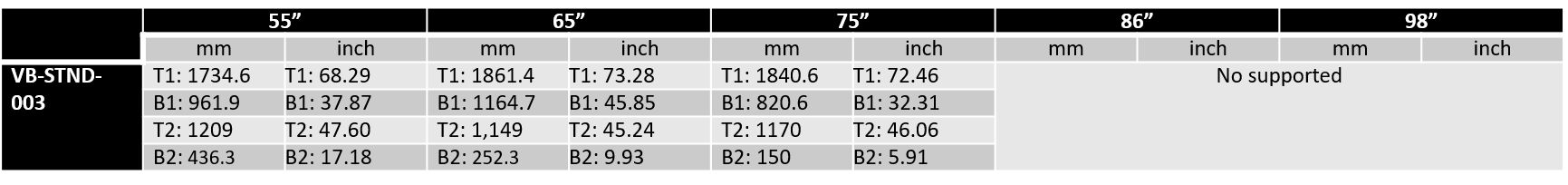

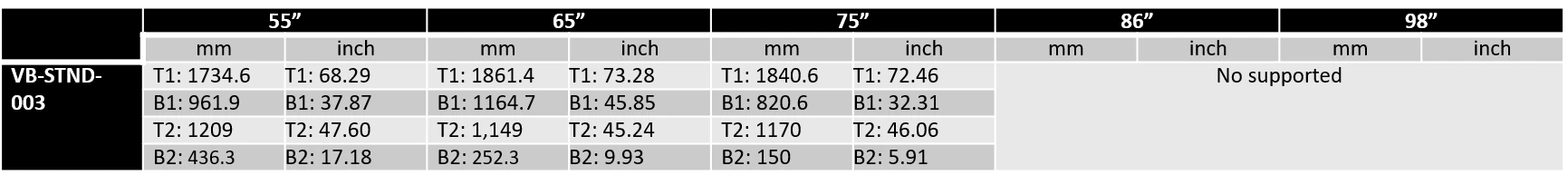

Height Information

SPECIFICATIONS

Ergonomics
Swivel: 360 degree

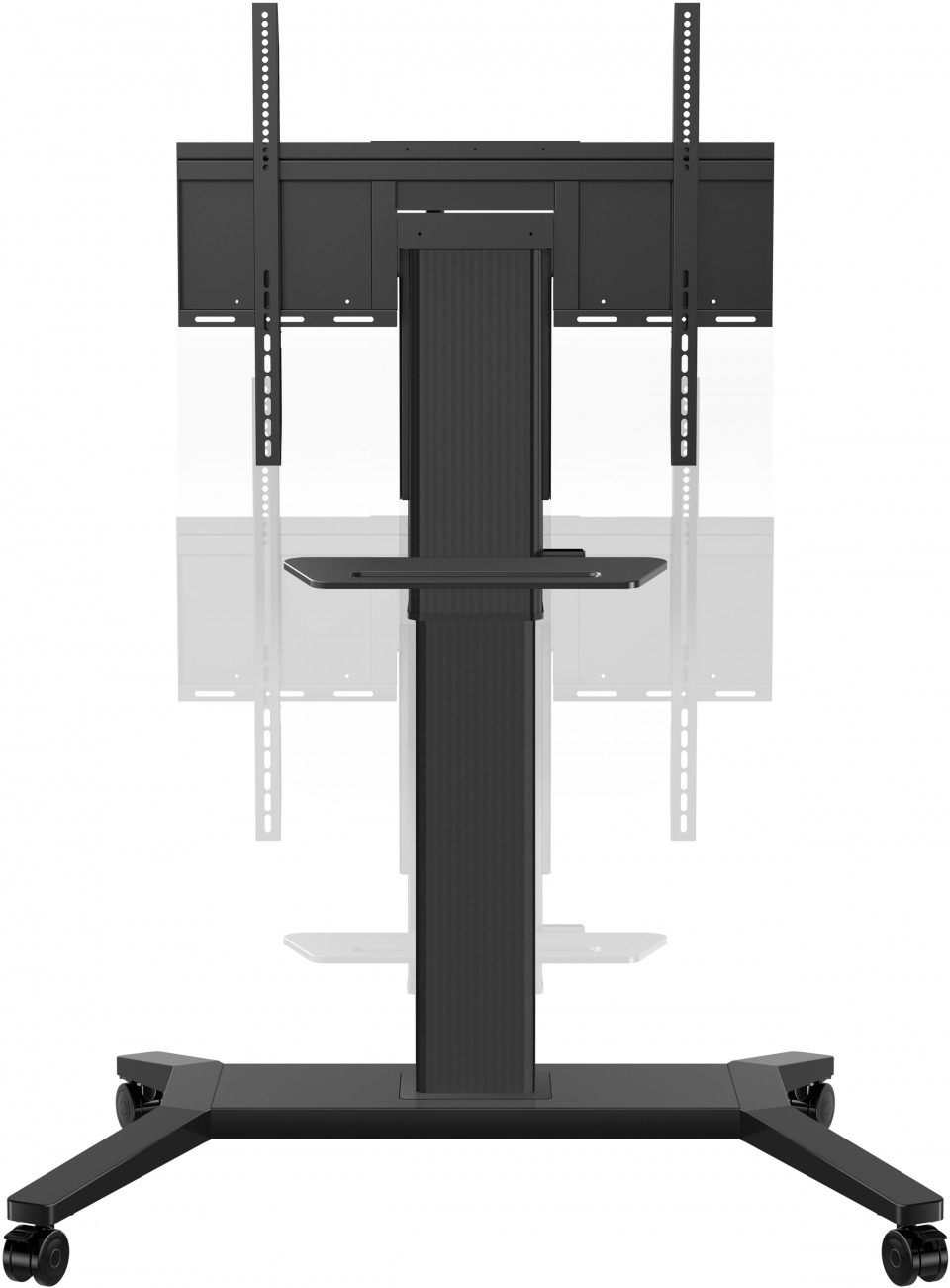

Height Adjust: 560mm (22.05”)
Tilt: 0° ~ 90°

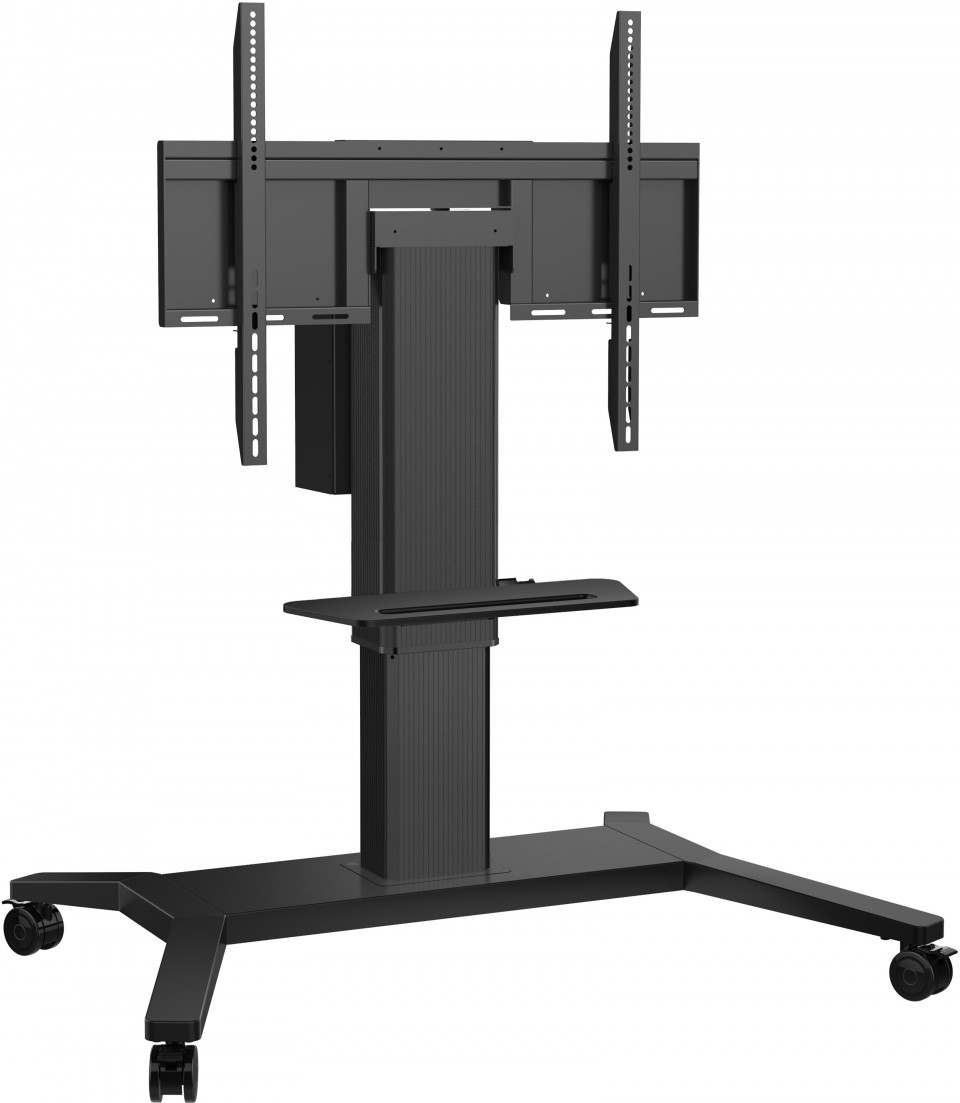

Wall mount bracket
up to 800x600mm
Material
Alumimum Alloy, Plastic, Steel

Loading
Wall mount: 100 kg max. / 220.46 lb max.
Plate: 20 kg max. / 44.09 lb max
Dimensions
Physical (WxHxD): 1234 x 1149.6 x 844 mm / 48.58 x 45.26 x 33.23 in
Packaging (WxHxD): 1342 x 372 x 934 mm / 52.83 x 14.65 x 36.77 in
Weight
Net: 54 kg / 119.05 lb
Gross: 64 kg / 141.10 lb
Input voltage
AC-in 100~240V 50/61Hz
Control panel
Control Pad, Physical button control , Software control for IFP50_IFP50-2
Compliance
FCC, cTUVus, CB, CE, RCM
Inbox items
Control Pad, Power Cord, Power Adapter Cord, USB Cable, Accessory Bag, Quick Start Guide
