OVERVIEW
Take your digital video installations to new lengths with the high-performance, small form factor ViewSonic HB10B HDBT Transmitter and Receiver kit. Featuring the world’s first integrated HDMI connector, as well as a miniature form factor, the HDBT receiver seamlessly integrates into almost any display device with an HDMI input. Utilizing HDBT technology, the HB10B kit is capable of sending uncompressed ultra-HD audio & video, 100BaseT Ethernet, IR controls, and power from up to 70 meters away via network cable. With an integrated IR blaster and receiver ports, the HB10B kit lets you take control of your media equipment on both ends with bi-directional control. The HDBT receiver comes equipped with PoC and microUSB power, making it one of the most versatile receivers in the market. In addition to seamlessly integrating with almost any HDMI-based display devices such as televisions, large format displays, digital signage, etc., the HDBT receiver (Dongle type) also fits into any PortAll® compartment available on select ViewSonic projectors – enabling you to discreetly stream uncompressed multimedia content from set-top boxes, Blu-ray players, AV receivers and more.Long Distance Video, Audio, and IR Control Transmission Solution
World's 1st HDBT Dongle
Featuring a miniature form factor, the HB10B receiver can be carried by installers easily, when deploying the Pro AV system in a large venue.
Extended Signal-Transmitted Application
Utilizing HDBT technology, this kit is capable of sending uncompressed HD video and audio via network cable – so it’s perfect for sending content over long distances to your display devices. Transmit 4K/2K video from up to 35 meters away, and transmit 1080p video from up to 70 meters away.
HDMI 3D Content and HDCP Compliance
With compliance to the HDMI specification, all audio and video transmitted, including 3D content, meets high-def standards for capacity, performance, resolution, and color. With HDCP compliance, data is encrypted when transmitted between the source and the display, thus preventing the possibility of illegal interception or copying of the data.
Seamless Installation with Display Devices
Featuring an integrated HDMI connector, as well as a miniature form factor, the HDBT receiver seamlessly integrates into almost any display device with an HDMI input. This includes televisions, large format displays, digital signage, and projectors.
Command Remote Multimedia Devices
Through IR extended cables, the integrated IR blaster and receiver ports allow you to take control of your media equipment on both ends with bi-directional control.
Discretely Streaming Fit into ViewSonic Projector PortAll®
ViewSonic's exclusive PortAll® feature is a hidden compartment with an integrated and secure MHL/HDMI port that lets you discretely stream multimedia content from the HB10B.
SPECIFICATIONS
- ConnectivityTransimitter: HDMI in x1 / HDBT x1 (LAN) / IR receiver x1(3.5mm) IR Blaster x1 (3.5mm) / Power socket x1 (with lock)
Receiver: HDMI out x1 / HDBT x1 (LAN) / IR receiver x1(3.5mm) IR Blaster x1 (3.5mm) / Power socket x1 ( by Micro USB) - CompatibilitySupport Output Resolution
(by Cat 5e/6/6a/7): HDMI: 1080P up to 70m
HDMI: 4K/2k@30 up to 40m
HDCP / CEC compliant - PowerTransmitter: 100~240VAC @ 50/60Hz, 12V/1A output (power adaptor)
Power consumption: 3W (Maximum)
Receive: from Transmitter or USB power (5V/1.5A)
Power consumption: 7W (Maximum)
- Operating ConditionTemperature: 23°F to 104°F (-5°C to 40°C)
Humidity: 0% to 95% Non-Condensing
Altitude: 0 to + 13123 ft - Storage ConditionTemperature: -22°F to 140°F (-30°C to +60°C)
Humidity: 0% to 95% Non-Condensing - DimensionsTransimitter Physical: 99.5 mm (W) x 74mm (D) x 18 mm (H)/ 3.92” (W) x 2.91“ (D) x 0.71” (H)
Receiver Physical: 41.5 mm (W) x 84.5 mm (D) x 23.9 mm (H) /1.63” (W) x 3.33“ (D) x 0.94” (H)
Packing Carton Box: 264 mm (W) x 170 mm (D) x 77 mm (H) /10.39” (W) x 6.69” (D) x 3.03” (H)
Shipping carton: 420mm (W)x 358(D)x 291mm(H)/ 16.54” x 14.10” x 11.46” - WeightGift box: Net: 214g (0.47lb) (Transmitter: 122g, Receiver 92g)
Gross: 650g(1.43lb)
Shipping carton: Gross: 7.5kg (16.54lb) - RegulationsSafety/EMC: FCC, CE, ErP, RoHS
- Include AccessoriesThe Top Level Assembly shall consist of : HB10B Transmitter /HB10 Receiver/ Universal Power Adapter x 1 (with US, EU, UK head ) / Quick Start Guide / IR receiver x1 / IR blaster x1 /Wall mount with screws x3 (2 for Receiver, 1 for receiver)
COMPATIBLE WITH HB10B
3,000 ANSI Lumens WXGA LED Business/Education Projector
3,000 ANSI Lumens WXGA Short Throw LED Business/Education Projector
3,200 ANSI Lumens WXGA Short Throw LED Business/Education Projector
3,200 ANSI Lumens WXGA Short Throw LED Business/Education Projector
3,000 ANSI Lumens WXGA LED Business/Education Projector
3,800 ANSI Lumens WXGA LED Business/Education Projector
4,500 ANSI Lumens WXGA LED Business/Education Projector
4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector
4,200 ANSI Lumens WXGA Short Throw Laser Installation Projector
5,000 ANSI Lumens 1080p Laser Installation Projector
5,000 ANSI Lumens WXGA Laser Installation Projector
5,000 ANSI Lumens WUXGA Laser Installation Projector
5,000 ANSI Lumens 1080p Laser Installation Projector
5000 Lumens Laser Light Projector
5,200 Lumens Installation Projector
5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector
5,000 ANSI Lumens WUXGA Installation Projector
5,000 ANSI Lumens WUXGA Installation Projector
5,500 ANSI Lumens 4K HDR Laser Installation Projector
6,000 ANSI Lumens 1080p Laser Installation Projector
6,000 ANSI Lumens WUXGA Laser Installation Projector
6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
7,100 ANSI Lumens WUXGA Laser Installation Projector
8,000 ANSI Lumens Short Throw WUXGA Laser Installation Projector
8,500 ANSI Lumens WUXGA Laser Installation Projector
1080p Smart LED Projector with Built-in Google TV
3,500 ANSI Lumens 4K Laser Home Projector
Smart LED Portable Projector with Harman Kardon® Speakers
Portable RGB Laser Smart Projector with Harman Kardon Speaker
Smart LED Portable Projector with Harman Kardon Speakers
4,500 ANSI Lumens SVGA Business & Education Projector
4,500 ANSI Lumens WXGA Business & Education Projector
4,500 ANSI Lumens XGA Business & Education Projector
4,000 ANSI Lumens WXGA Business/Education Projector
4,000 ANSI Lumens WXGA Short Throw Business & Education Projector
4,000 ANSI Lumens XGA Short Throw Business & Education Projector
3,200 ANSI Lumens 4K Home Projector
4,000 ANSI Lumens 1080p Home & Business Projector
4,000 ANSI Lumens 4K Home Projector
4,800 ANSI Lumens SVGA Business Projector
4,800 ANSI Lumens XGA Business Projector
4,800 Lumens WXGA Business Projector
4K UHD Home Cinema LED Projector

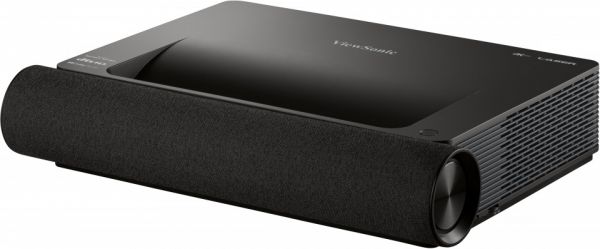

4K HDR Ultra Short Throw Smart LED Soundbar Projector
