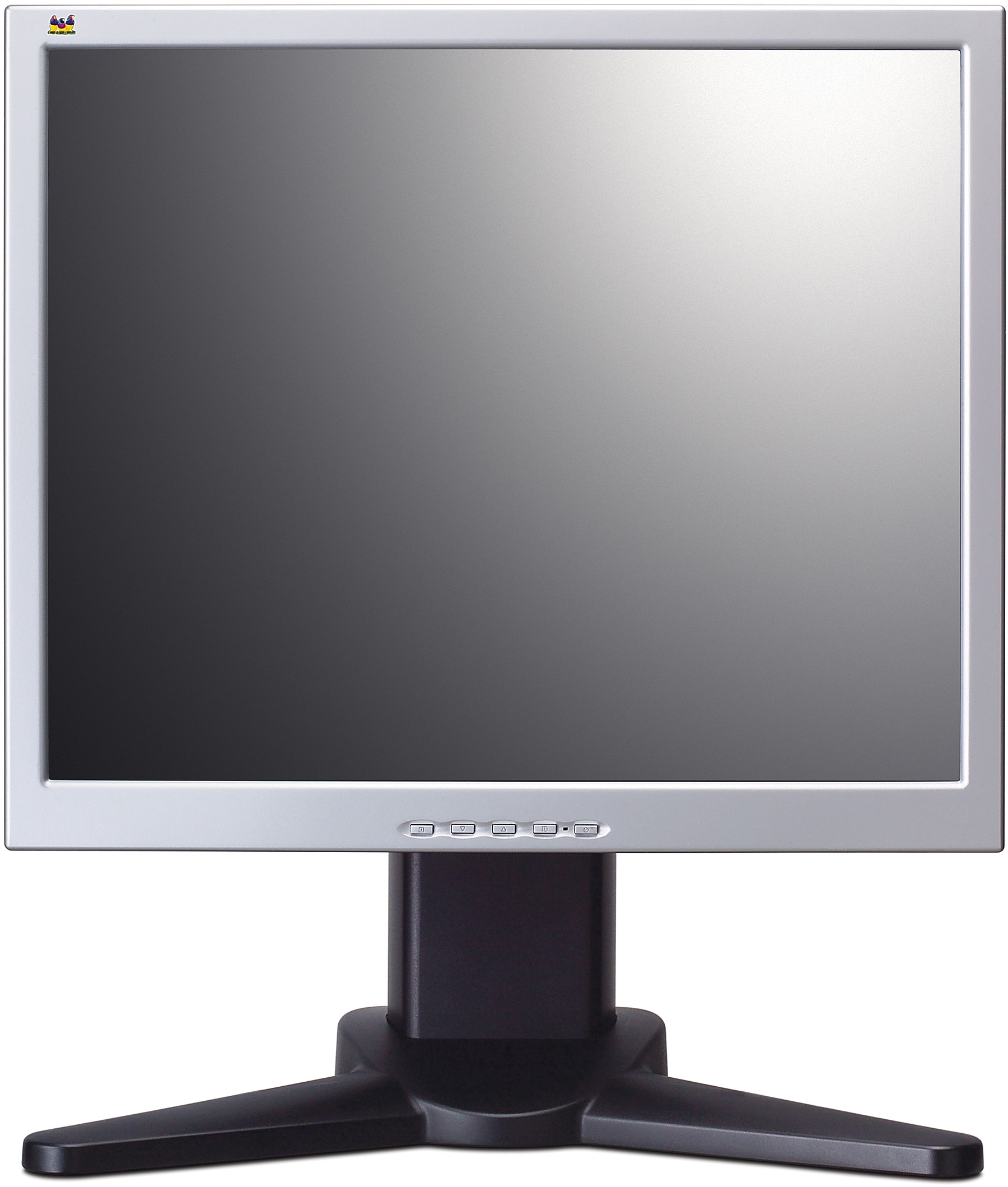

VP720
Descrierea produsului
Vizitează Noi
  • www.viewsonic.com
  • LCD
    Tip: 17” TN colour TFT active matrix SXGA LCD
    Rată de contrast: 500:1 (typ.)
    Unghiuri de vizualizare: 140° horizontal, 130° vertical (at 10:1)
    170° horizontal, 170° vertical (at 5:1)
    Display Area: 33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Timp de răspuns: 4ms (Grey-to-Grey), 8ms (off-on-off) (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.264mm
    Bandwidth: 135MHz
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Luminozitate: 280cd/m²
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz)
  • DIMENSIONS
    W x H x D mm: 376 x 463 x 229 (with stand)
    376 x 320 x 68 (without stand)
  • CONȚINUT PACHET
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
    Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • WARRANTY
    Please see:
    www.viewsoniceurope.com/UK/Support/warranty.htm
  • INPUT
    Sync: H/V separate (TTL), composite, sync on green
    Digital: DVI-D (TMDS, 100 ohm)
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
    Frequency: Fh: 24 – 82kHz, Fv: 50 – 85Hz
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Audio: 3.5mm stereo audio line-in
    Putere: 3-pin (CEE22)
  • POWER
    Voltaj: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Consum: <45 watt (max.), ≤1 watt in power save mode
  • CONTROLS
    Basic: Power on/off, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio
    adjust (volume, mute), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
    5000K, user RGB), information (resolution, H/V frequency, pixel clock, model
    number, serial number, website), manual image adjust (H/V position, H size,
    fine tune, sharpness), setup menu (language, resolution notice, OSD
    position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperatură: 0°C - 40°C
    Umiditate: 10% - 90% (non-condensation)
  • WEIGHT
    Masă: 5.45kg (with stand), 3.7kg (without stand)
  • POWER MANAGEMENT
    Meets TCO’03, ENERGY and Energy Star standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FPMPMI 100mm x 100mm
  • ERGONOMICS
    Înclinare: Down 5°, Up 20°
    Height Adjustment: 0~100mm
    Pivot: 0°~90°
  • AUDIO
    Speakers: 2 x 1 watt
