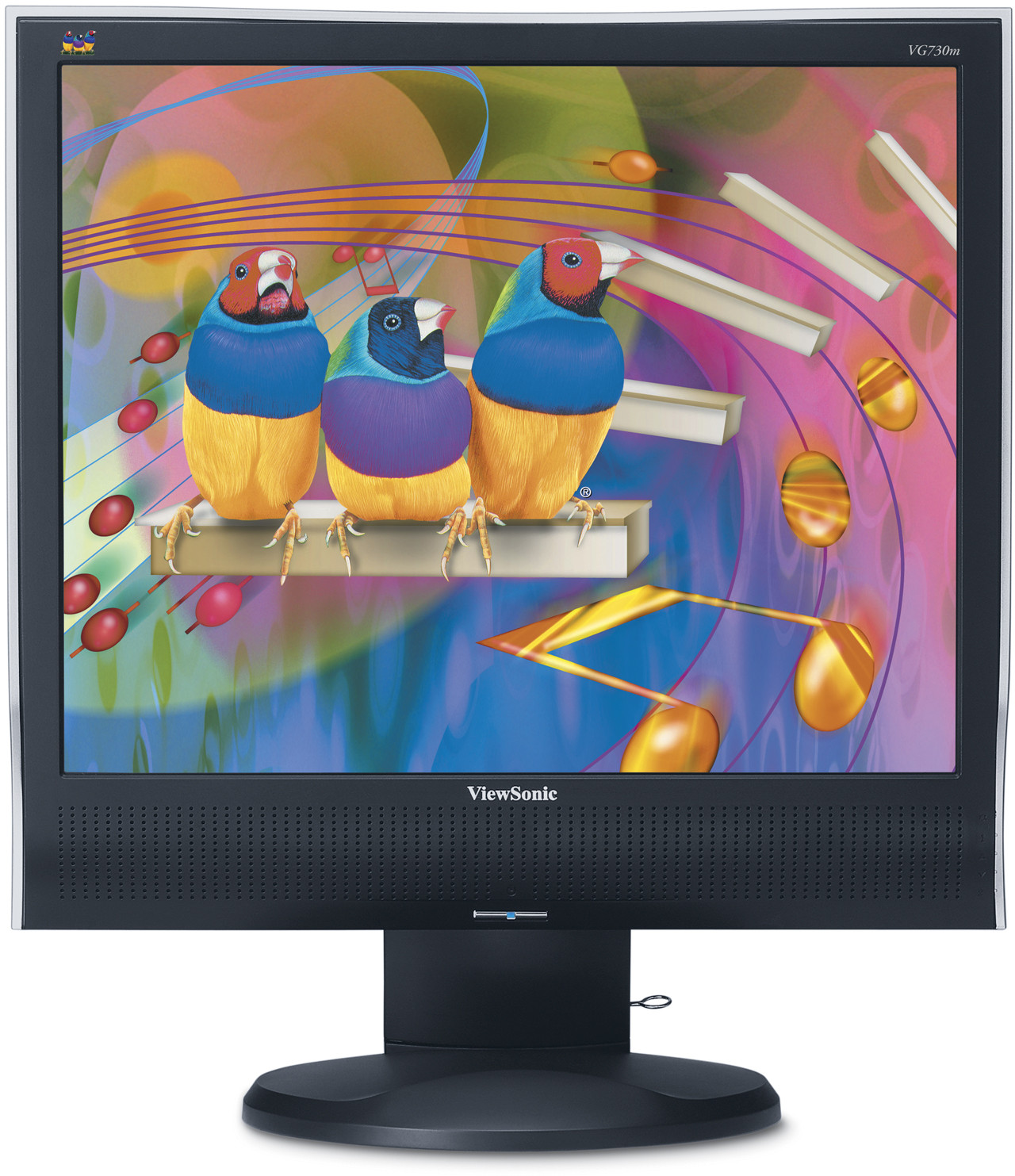

ViewSonic VG730m 17" DIGITALMEDIA™ LCD MONITOR WITH CLEARMOTIV® 8MS VIDEO RESPONSE

Funcții esențiale

Descrierea produsului

The 17” ViewSonic VG730m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivelfeatures, the VG730m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position andgreatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG730m is the ideal LCD monitor for business, home office, government or education use.

Vizitează Noi

www.viewsonic.com

COLORS

Black

LCD

Tip:	43cm / 17" TN colour TFT active matrix SXGA LCD
Rată de contrast:	600:1 (typ.)
Unghiuri de vizualizare:	150° horizontal, 145° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Luminozitate:	280cd/m² (typ.)
Display Area:	33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Timp de răspuns:	8ms (off-on-off) (typ.)
Sursă de lumină:	Long life, 50,000 hrs. (typ)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.264mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	140MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
DIMENSIONS

Physical With Stand: 387 x 475-555 x 230

Physical Without Stand: 387 x 367 x 67

W x H x D mm: 445 x 552 x 278
CONȚINUT PACHET

LCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language)
AUDIO

Difuzor: 2 x 1.5 watt integrated stereo speakers
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Putere: 3-pin AC plug (CEE22)

Audio: 3.5mm stereo audio line-in
POWER

Voltaj: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consum: 35 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2], mute

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatură: 5°C–35°C

Umiditate: 20%–80% (non-condensation)
WEIGHT

Net With Stand: 5.0kg

Greutate: 6.9kg
VIDEO INPUT

Frequency: Fh: 30–82kHz, Fv: 50–75Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Digital: DVI-D (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Înclinare: Down 5°, up 20°

Pivotant: 360° swivel base

Height Adjustment: 0~80mm

PC:	VGA up to 1280 x 1024 non-interlaced
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced

Physical With Stand:	387 x 475-555 x 230
Physical Without Stand:	387 x 367 x 67
W x H x D mm:	445 x 552 x 278

Analogue:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Putere:	3-pin AC plug (CEE22)
Audio:	3.5mm stereo audio line-in

Voltaj:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consum:	35 watt (typ.), <1 watt in power save mode

Temperatură:	5°C–35°C
Umiditate:	20%–80% (non-condensation)

Frequency:	Fh: 30–82kHz, Fv: 50–75Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Digital:	DVI-D (TMDS, 100 ohms)

Înclinare:	Down 5°, up 20°
Pivotant:	360° swivel base
Height Adjustment:	0~80mm

Net With Stand:	5.0kg
Greutate:	6.9kg
