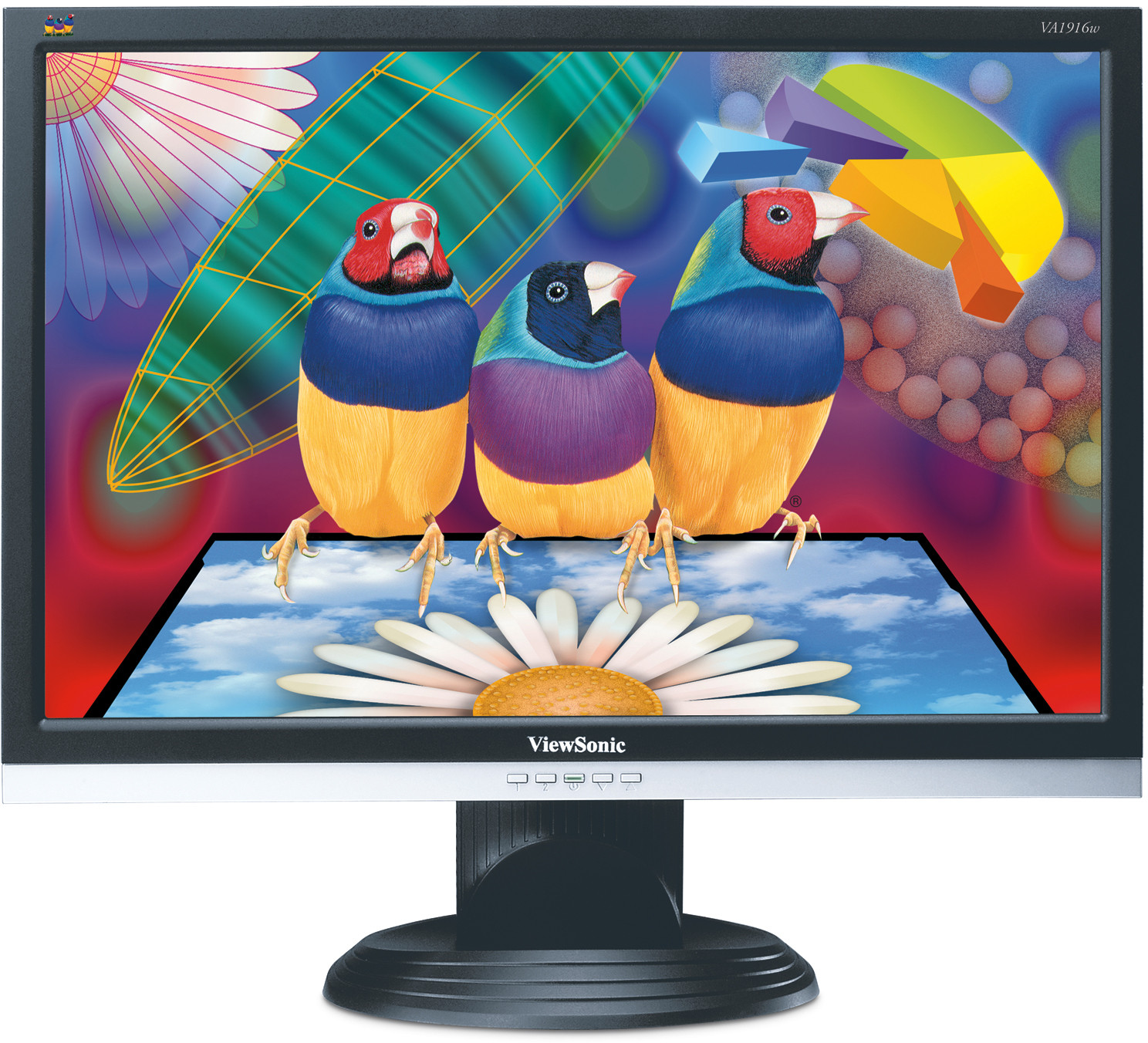

VA1916w
Descrierea produsului
Vizitează Noi
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tip: 48cm / 19" Wide TN colour TFT active matrix WXGA+ LCD
    Rată de contrast: 700:1 (typ.), 2000:1 (DCR)
    Unghiuri de vizualizare: 150° horizontal, 140° vertical (at 10:1)
    170° horizontal, 160° vertical (at 5:1)
    Luminozitate: 300 cd/m² (typ)
    Display Area: 40.8cm horizontal x 25.5cm vertical, 48.3cm diagonal
    Optimum Resolution: 1440 x 900@60Hz
    Timp de răspuns: 5ms (off-on-off) (typ.)
    Sursă de lumină: 300cd/m²
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.2835mm
    Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
    Pixel Clock: 140MHz
  • COMPATIBILITY
    PC: VGA up to 1440 x 900 non-interlaced
    Mac®: Power Mac™ up to 1440 x 900 non-interlaced
  • DIMENSIONS
    W x H x D mm: 440 x 383 x 195 (with stand)

    440 x 304 x 62 (without stand)

    520 x 460 x 142 (packaging)
  • CONȚINUT PACHET
    LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Putere: 3-pin AC plug (CEE22)
  • POWER
    Voltaj: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Consum: 32 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, DCR on/off, OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperatură: 0°C–40°C
    Umiditate: 20%–90% (non-condensation)
  • WEIGHT
    Masă: 4.0kg (with stand)
    Greutate: 5.1kg
  • VIDEO INPUT
    Frequency: Fh: 24–82kHz,

    Fv: 50–75 Hz
    Sync: H/V separate (TTL)
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
  • POWER MANAGEMENT
    TCO’03 and ENERGY STAR standards
  • SECURITY
    Kensington security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Înclinare: Down 5°, Up 20°
