Funcții esențiale
  • Versatile touch applications
  • Accurate yet smooth touch experience
  • USB Type-C one cable solution
  • DisplayPort out supporting Daisy Chain
  • Highly adjustable working angles to suit different needs

TD2455
Descrierea produsului
With responsive in-cell touch technology and an advanced ergonomic design, the ViewSonic® TD2455 touch monitor delivers hands-on control for more productive workspaces and collaborative classrooms. With high-performance in-cell touch technology, this 24” (23.8” viewable) Full HD display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design. USB Type-C connectivity offers a single-cable plug-and-play solution for laptops, while DisplayPort output enables easy screen mirroring or extended desktops ideal for office productivity and podium touch applications such as conference rooms or classrooms. A magnetic stylus pen lets you write or draw on screen, and easily attaches to the display stand for secure storage. So whether used on its own on office desktops, as a presentation station in corporate meeting spaces, or as a front-of-classroom interactive teaching hub, the TD2455 helps to boost efficiency and productivity. *Some laptops may need to enter BIOS mode and change the power management setting to “tap-to-wake”.

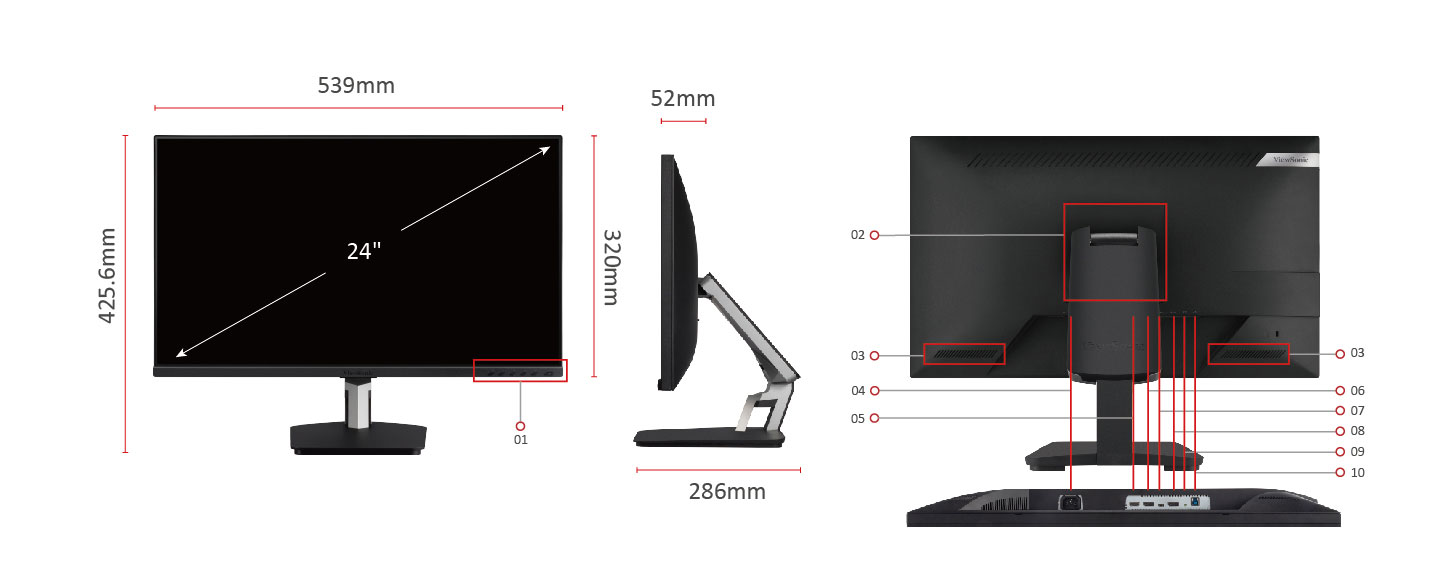

  1. Menu Controls
  2. VESA Compatible(Wall Mount 100x100mm)
  3. Internal Speakers
  4. AC IN
  5. HDMI
  6. DP IN
  7. USB Type C
  8. DP OUT(Output/MST daisy chain)
  9. Audio Out
  10. USB up stream
Vizitează Noi
  • www.viewsonic.com
  • DISPLAY
    Dimensiune Display (încheiat): 24
    Suprafață de vizualizare (inch): 23.8
    Tip Panel: IPS Technology
    Rezoluție: 1920 x 1080
    Tip rezoluție: FHD
    Rata de contrast static: 1,000:1 (typ)
    Rată de contrast dinamic: 50M:1
    Sursă de lumină: LED
    Luminozitate: 250 cd/m² (typ)
    Culori: 16.7M
    Suport pentru Colour Space: 8 bit (6 bit + A-FRC)
    Aspect Ratio: 16:9
    Timp de răspuns (GTG Tipic): 6ms
    Timp de răspuns (GTG w/OD): 6ms
    Unghiuri de vizualizare: 178º horizontal, 178º vertical
    Durată de viață sursă iluminare fundal (ore): 30000 Hrs (Min)
    Curbare: Flat
    Rată de refresh (Hz): Max. 75Hz (HDMI (v1.4), DisplayPort (v1.2), Type C) (Max)
    Filtru de lumină albastră: Yes
    Flicker-Free: Yes
    Spectru de culori: NTSC: 72% size (Typ), sRGB: 102% size (Typ)
    Dimensiune Pixel: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Tratament pentru protecția suprafeței: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITATE
    Rezoluție PC (maximă): 1920x1080
    Rezoluție Mac® (max): 1920x1080
    Sistem de operare PC: Windows 7/8.1/10/11 certified; macOS tested
    Rezoluție Mac® (min): 1920x1080
  • CONECTOR
    USB 3.1 Tip A: 1
    USB 3.1 Tip B: 1
    USB 3.1 Tip C: 1
    Ieșire audio 3.5mm: 1
    HDMI 1.4: 1
    Display Port: 1
    Ieșire Display Port: 1
    Putere intrare: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Difuzoare interne: 2Watts x2
  • PUTERE
    Mod Eco (Menținut): 9.7W
    Mod Eco (Optimizat): 12.8W
    Consum (tipic): 17.9W
    Consum (max): 20.4W
    Voltaj: AC 100-240V, 50/60 Hz
    Stand-by: 0.3W
    Sursă: Internal
  • HARDWARE EXTRA
    Slot blocaj Kensington: 1
  • CONTROALE
    Comenzi fizice: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display (OSD): Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu
  • CONDIțII DE FUNCțIONARE
    Temperatură: 32°F to 104°F (0°C to 40°C)
    Umiditate (lipsă condens): 20% to 90%
  • ADAPTOR DE PRIZă
    Compatibil VESA: 100 x 100 mm
  • SEMNAL INTRARE
    Frecvență orizontală: 15 ~ 82KHz
    Frecvență verticală: 50 ~ 75Hz
  • INTRARE VIDEO
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
  • ERGONOMIE
    Înclinare (față/spate): -5º / 60º
  • GREUTATE (IMPERIAL)
    Masă (Ibs): 14.2
    Greutate fără stand (Ibs): 8.2
    Greutate (Ibs): 18.6
  • GREUTATE (METRIC)
    Masă (kg): 6.4
    Greutate fără stand (kg): 3.7
    Greutate (kg): 8.4
  • DIMENSIUNI (IMPERIAL) (WXHD)
    Ambalare (în.): 24.3 x 16.3 x 11.2
    Dimensiuni (înch): 21.2 x 16.8 x 11.3
    Dimensiune fără stand (inch): 21.2 x 12.6 x 2
  • DIMENSIUNI (METRIC) (WXHD)
    Ambalare (mm): 617 x 415 x 285
    Dimensiuni (mm): 539 x 426 x 286
    Dimensiune fără stand (mm): 539 x 320 x 52
  • GENERAL
    Reguli: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
    CONȚINUT PACHET: TD2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1, Passive touch pen x1, Passive touch pen head x1
    Coș de gunoi: Please dispose of in accordance with local, state or federal laws.
    Garanție: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
