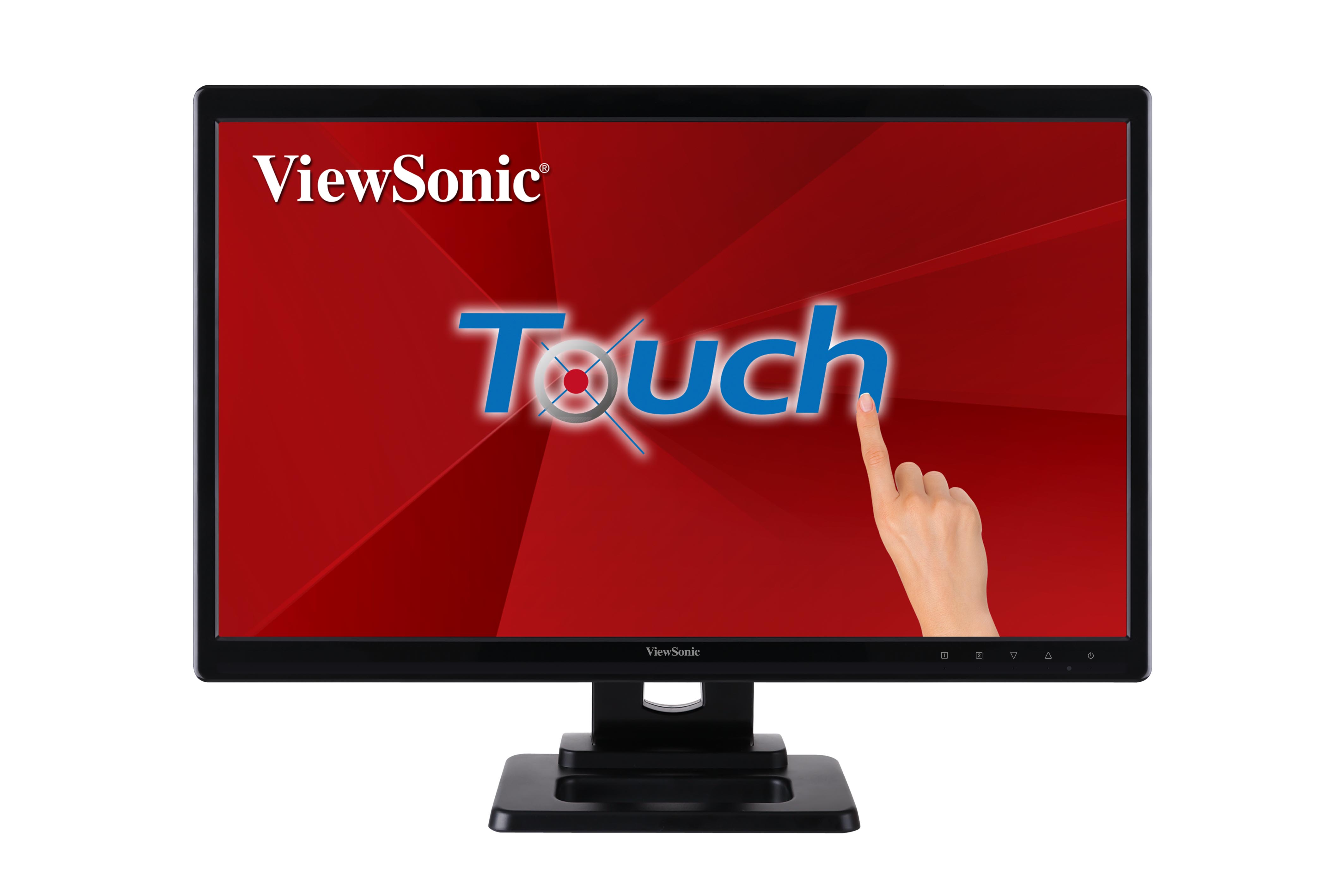

ViewSonic TD2220-2 22" 2-point Touch Screen Monitor

Funcții esențiale

8H hardness screen
Full HD 1080p resolution
Supports USB HID
VGA and DVI inputs

Descrierea produsului

The 22" (21.5"/54.6cm viewable) ViewSonic® TD2220-2 is a multi-touch Full HD LED backlit monitor with 1920x1080 resolution, DVI & VGA inputs and VESA mountable design. It has 20,000,000:1 MEGA Dynamic Contrast Ratio for sharp crisp images and Eco-mode for up to 40%* energy savings come standard in the new 22" (21.5"/54.6cm viewable) offering. Perfect for both commercial and consumer applications, the TD2220-2 supports the USB HID Touch driver and supports Windows^® 8 and Windows^® 10. The TD2220-2 is a one-stop solution for your multi-touch monitor needs.

Vizitează Noi

www.viewsonic.com

LCD

Tip:	22" (21.5"/54.6 viewable) Wide Color TFT Active Matrix LED
Optimum Resolution:	1920x1080
Rată de contrast:	1000:1 (typ.)
Unghiuri de vizualizare:	170º horizontal, 160º vertical
Timp de răspuns:	5ms (typ.)
Panel Surface:	hard-coating (7H)
Display Area:	18.8"/47.8cm horizontal x 10.6"/ 26.9 cm vertical; 21.5"/ 54.6 cm diagonal
Luminozitate:	200 cd/m² (typ.)
Rată de contrast dinamic:	20,000,000:1
Backlight:	White-light LED
Durată de viață sursă de lumină fundal:	40,000 hours (min.)

INTRARE VIDEO

Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Digital: DVI (TMDS, 100 ohms)

Frequency: Fh: 24~83kHz, Fv: 50~76Hz

Sync: Separate Sync
COMPATIBILITATE

PC: PC compatible (Windows ®7, 8, 10 operating system)
CONECTOR

Putere: Internal power board, 3-pin plug (CEE22)
CONTROALE

Front Panel: 1, 2, Down, Up, Power

DIMENSIONS

Physical With Stand:	511 x 635 x 240 mm / 20.11 x 14.37 x 9.45 in.
Physical Without Stand:	511 x 310 x 66 mm / 20.11 x 12.22 x 2.61 in.
Packaging:	570 x 427 x 214 mm / 22.44 x 16.81 x 8.43 in.

POWER

Conserve: 18W (typ.)

Voltaj: AC 100–240V (universal), 50 / 60Hz

Consum: 26W (typ.) / 43W (max.)

Optimize: 21W (typ.)
OPERATING CONDITIONS

Umiditate: 20–90% (non-condensing)

Temperatură: 32–104º F (0–40º C)
VESA® MOUNT

100mm x 100mm
ERGONOMICS

Înclinare: 20º~5º
WEIGHT

Greutate: 6.45 kg / 14.22 lb.

Net With Stand: 4.92 kg / 10.85 lb.

Net Without Stand: 3.96 kg / 8.73 lb.

Analog:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Digital:	DVI (TMDS, 100 ohms)
Frequency:	Fh: 24~83kHz, Fv: 50~76Hz
Sync:	Separate Sync

Conserve:	18W (typ.)
Voltaj:	AC 100–240V (universal), 50 / 60Hz
Consum:	26W (typ.) / 43W (max.)
Optimize:	21W (typ.)

Umiditate:	20–90% (non-condensing)
Temperatură:	32–104º F (0–40º C)

Greutate:	6.45 kg / 14.22 lb.
Net With Stand:	4.92 kg / 10.85 lb.
Net Without Stand:	3.96 kg / 8.73 lb.
