Funcții esențiale
  • 4,500 ANSI Lumens, offering clear images in any environment​
  • Up to 300" ultra large screen with lower cost-per-inch ​
  • Easy and flexible connection: dual HDMI ports, USB Type-A port​
  • Vivid colors with ViewSonic's SuperColor™ Technology​
  • Convenient software updates for projectors via USB connection

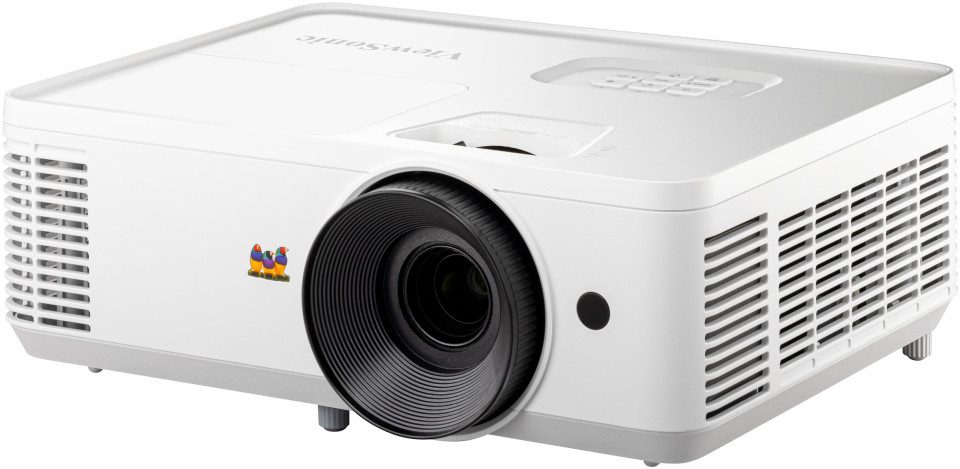

PA700S
Descrierea produsului
The PA700S is ViewSonic’s high brightness SVGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers. ​

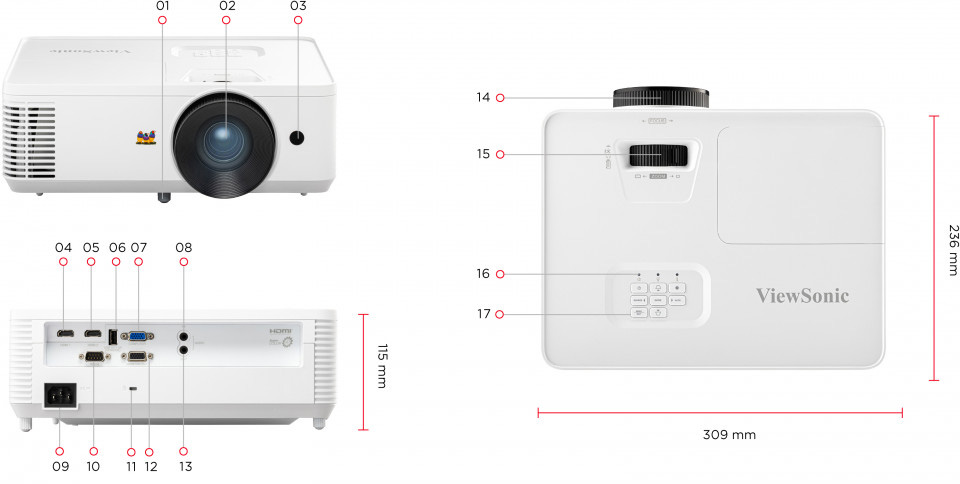

  1. Adjustment Foot
  2. Lens
  3. Front IR
  4. HDMI 1
  5. HDMI 2
  6. USB-A(5V/1.5A, Service)
  7. Computer In
  8. Audio In
  9. AC In
  10. R232
  11. Kensingtion Lock
  12. Monitor Out
  13. Audio Out
  14. Focus Ring
  15. Zoom Ring
  16. LED Indicator
  17. Keypad
Vizitează Noi
  • www.viewsonic.com
  • SPECIFICAțIE
    Sistem de proiecție: 0.55" SVGA
    Rezoluție Nativă: 800x600
    Luminozitate: 4500 (ANSI Lumens)
    Rată de contrast cu modul SuperEco: 12500:1
    Display Color: 1.07 Billion Colors
    Tip sursă de lumină: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lentile: F=2.42-2.53, f=21.85-24.01mm
    Decalaj de proiecție: 130%+/-10%
    Raportul de proiectare: 1.94-2.16
    Zoom optic: 1.1x
    Zoom Digital: 0.8x-2.0x
    Dimensiune Imagine: 30"-300"
    Distanță de proiectare: 1.18m-13.17m
    (100"@3.94m)
    Intrare Keystone: +/- 40° (V)
    Zgomot perceptibil (funcție Normal): 34dB
    Zgomot perceptibil (funcție Eco): 25dB
    Input Lag: 33.2ms
    Suport rezoluție: VGA(640 x 480) to FullHD(1920 x 1080)
    Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Frecvență orizontală: 15K-102KHz
    Rată verticală de scanare: 23-120Hz
  • INPUT
    Intrare computer (partajare componentă): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Intrare audio (3.5mm): 1
  • IEșIRE
    Ieșire monitor: 1
    Audio-out (3.5mm): 1
    Difuzor: 3W
    USB Tip A (Alimentare): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB-pin-tată): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • ALTELE
    Voltaj sursă: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Consum de putere: Normal: 295W
    Standby: <0.5W
    Temperatură de funcționare: 0~40℃
    Carton: Brown
    Greutate netă: 2.70kg
    Gross Weight: 3.80Kg
    Dimensiuni (WxDxH) cu Adjustment Foot: 309x234x115mm
    Packing Dimensions: 400x337x168mm
    Limbă meniu display: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • ACCESORIU STANDARD
    Cablu alimentare: 1
    Cablu VGA: 1
    Telecomandă: 1
    QSG: Yes
    Filtru de aer: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • ACCESORIU OPțIONAL
    Lampă/ Sursă de lumină: RLC-128
    Filtru de aer: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Geantă de transport: PJ-CASE-008
