Proiector
LS901HD
Funcții esențiale
- 6,000 ANSI Lumens ensure vibrant images in large venues
- High native contrast ratio provided by a 0.65” DMD chip and DLP technology
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
- Installation flexibility: 1.7x zoom, V lens shift, H/V keystone correction, and 360° projection
- Centralized LAN control for efficient management
- HDMI 2.0b enables 4K HDR/HLG content playback
Descrierea produsului
Introducing the LS901HD from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 6,000 ANSI Lumens brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. With a 1.7x optical zoom, it allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. The projector also features HDMI 2.0b, allowing you to enjoy original 4K quality content with HDR and HLG support. Employing advanced 3rd generation laser phosphor technology, the LS901HD boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

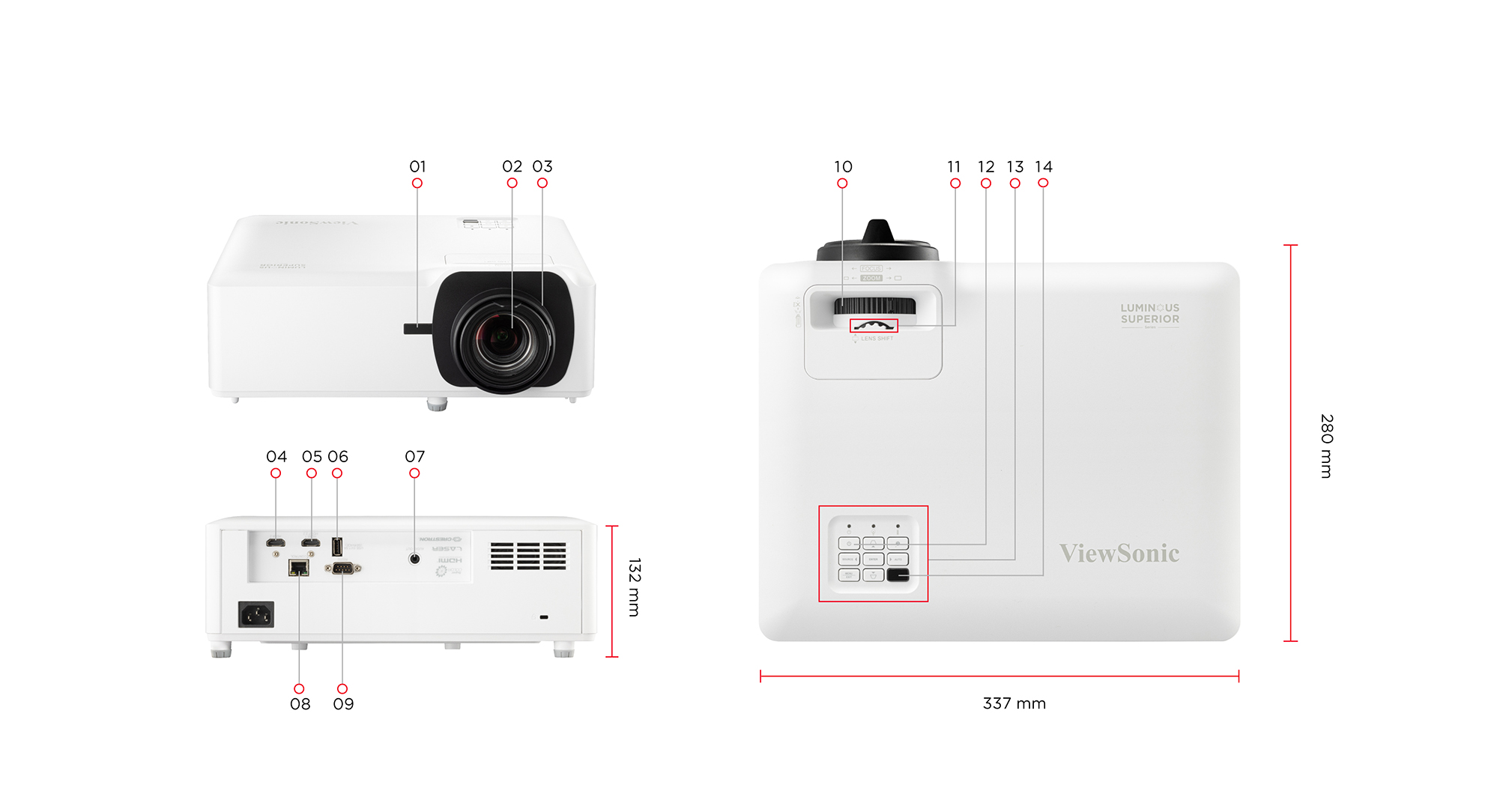

- Front IR
- Lens
- Focus Ring
- HDMI 1.4/HDCP 1.4
- HDMI 2.0/HDCP 2.2
- USB-A (5V/1.5A, Service)
- Audio Out
- RJ45
- RS232
- Zoom Ring
- Lens Shift Control Knob
- Power Button
- Keypad
- Top IR
Vizitează Noi
- www.viewsonic.com
-
SPECIFICAțIE
Sistem de proiecție: 0.65" 1080p Rezoluție Nativă: 1920x1080 Luminozitate: 6000 (ANSI Lumens) Brightness (Center Lumens): 6600 Rată de contrast: 3000000:1 Display Color: 1.07 Billion Colors Tip sursă de lumină: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lentile: F=2.3-3.0, f=17.63-27.9mm Decalaj de proiecție: 154% +/- 10% Raportul de proiectare: 1.2-2.04 Zoom optic: 1.7X Zoom Digital: 0.8x-2.0x Dimensiune Imagine: 30"-300" Distanță de proiectare: 0.80-13.55m
(100”@2.66m)Intrare Keystone: H:+/-30° , V:+/-30° Lentile Shift V. Range: 0%, -21% Zgomot perceptibil (funcție Normal): 31dB Audible Noise (Eco): 25dB Input Lag: 16ms Suport rezoluție: VGA(640 x 480) to 4K UHD(3840 x 2160) Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Frecvență orizontală: 15K-135KHz Rată verticală de scanare: 23-120Hz -
INPUT
HDMI: 2
(HDMI 2.0/ HDCP 2.2
HDMI 1.4/ HDCP 1.4) -
IEșIRE
Audio-out (3.5mm): 1 Difuzor: 15W x2 USB Tip A (Alimentare): 1 (5V/1.5A) -
CONTROL
RS232 (DB-pin-tată): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
ALTELE
Voltaj sursă: 100-240V+/- 10%, 50/60Hz
(AC in)Consum de putere: Normal: 245W
Standby: <0.5WTemperatură de funcționare: 0~40℃ Carton: Brown Greutate netă: 4.77kg Gross Weight: 6.7kg Dimensiuni (WxDxH) cu Adjustment Foot: 337x280x132mm Packing Dimensions: 496x387x195mm Limbă meniu display: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Cablu alimentare: 1 Telecomandă: 1 QSG: Yes Warranty Card: Yes (CN Only) -
ACCESORIU OPțIONAL
Wall/Ceiling Mount: PJ-WMK-007
