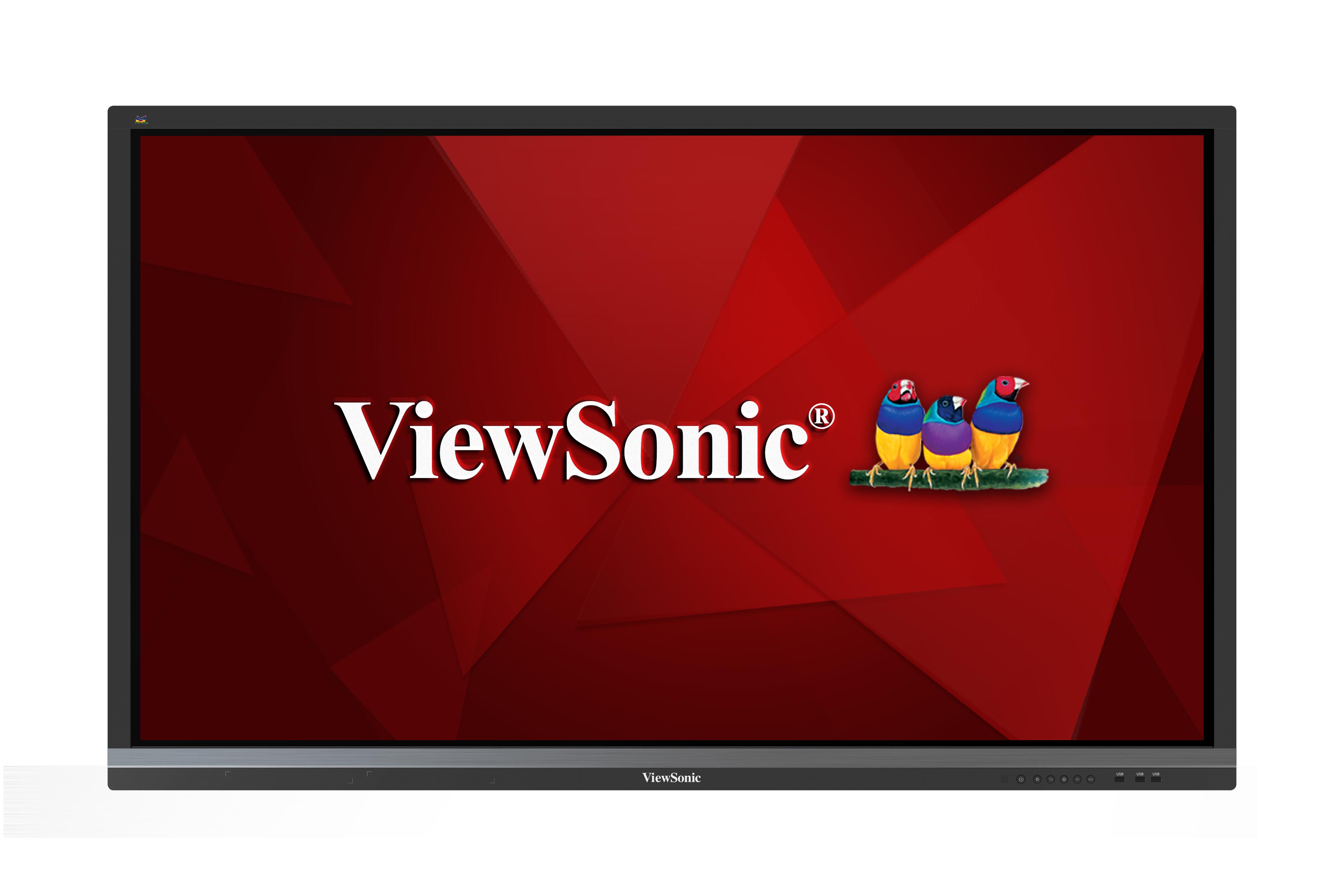

ViewBoard
IFP6550
Funcții esențiale
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
Descrierea produsului
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP6550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 65” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. IFP6550 display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP6550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
- SPEAKERS
- VESA® WALL MOUNT 600x400 mm
- MENU CONTROLS
- USB 2.0
- CVBS IN (AV IN)
- SPDIF (COAX OUT)
- RS232 IN
- AUDIO OUT
- RJ45 (LAN)
- POWER ON/OFF
- AC IN
- USB 2.0 & 3.0
- HDMI IN
- AUDIO IN
- USB 2.0 & 3.0
- PC SLOT
- HDMI OUT
- WIFI & BLUETOOTH MODULE SLOT
- USB 2.0(Touch)
- DisplayPort
- VGA IN
Vizitează Noi
- www.viewsonic.com
-
LCD PANEL
Dimensiune Panel: 65" Tipul/ Tehnologia: TFT LCD Module with DLED Backlight Suprafață Display (mm): 1431 (H) x 807 (V) (64.5” diagonal) Aspect Ratio: 16:09 Rezoluție: 3840 x 2160 Colors: 1.07B colors (10bit) Luminozitate: 350 nits (typ.) 300 nits (min.) Rată de contrast: 1200:1 (typ.) Timp de răspuns: 8 ms Unghiuri de vizualizare: H = 178, V = 178 (typ.) Backlight: DLED Durată de viață sursă de lumină fundal: 30,000 Hours Min. Hardness: 7H -
TOUCH
Tipul/ Tehnologia: IR Recognition Rezoluție Touch: 32767 x 32767 Touch Point: 20 points touch, 10 points writing Timp de răspuns: <15ms System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome Life Time: 80,000hrs -
INPUT
HDMI: x 3 RGB/ VGA: x 1 Display Port: x 1 Audio: x 1 CVBS (AV): x 1 RS232: x 1 PC Slot: x 2 -
OUTPUT
HDMI: x 1 (for all sources) Audio (Earphone out): x 1 SPDIF: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC) 3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC) 2.0 Type B (For touch): x 2 -
DIFUZOARE
16W x 2 -
BUILT-IN PC
Procesor: ARM Cortex A53 Quad Core 1.2G Hz CPU Graphic: ARM Mali-450 Quad Core Memorie: 2GB DDR3 Stocare: 16GB eMMC Networking: 10/100M auto-identification and DHCP -
COMPATIBILITY
VGA: Refer to timing table HDMI: 3840x2160 DP: 3840x2160 CVBS: 480i -
POWER
Voltaj: 100-240VAC +/- 10% Wide Range Consum: 190W(Typ, without Slot-In PC); 285W(Typ, Including Slot-In PC) -
ERGONOMICS
Montare pe perete (VESA® ): 600 x 400mm; Screw: M8 x 25mm -
OPERATING CONDITIONS
Temperatură (º C): 32°F to 104°F (0°C to 40°C) Umiditate: 10% ~ 90% non-condensing -
DIMENSIONS
Physical w/o Stand (mm / inch): 1521 x 922 x 99 mm / 59.9 x 36.3 x 3.9 inch Packaging (mm / inch): 1697 x 1071 x 220 mm / 66.81 x 42.17 x 8.66 inch -
WEIGHT
Net (kg / lb): 47kg / 103.62lbs Gross (kg / lb): 60kg / 132.28lbs -
WHAT'S IN THE BOX?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
