E92fSB
Descrierea produsului

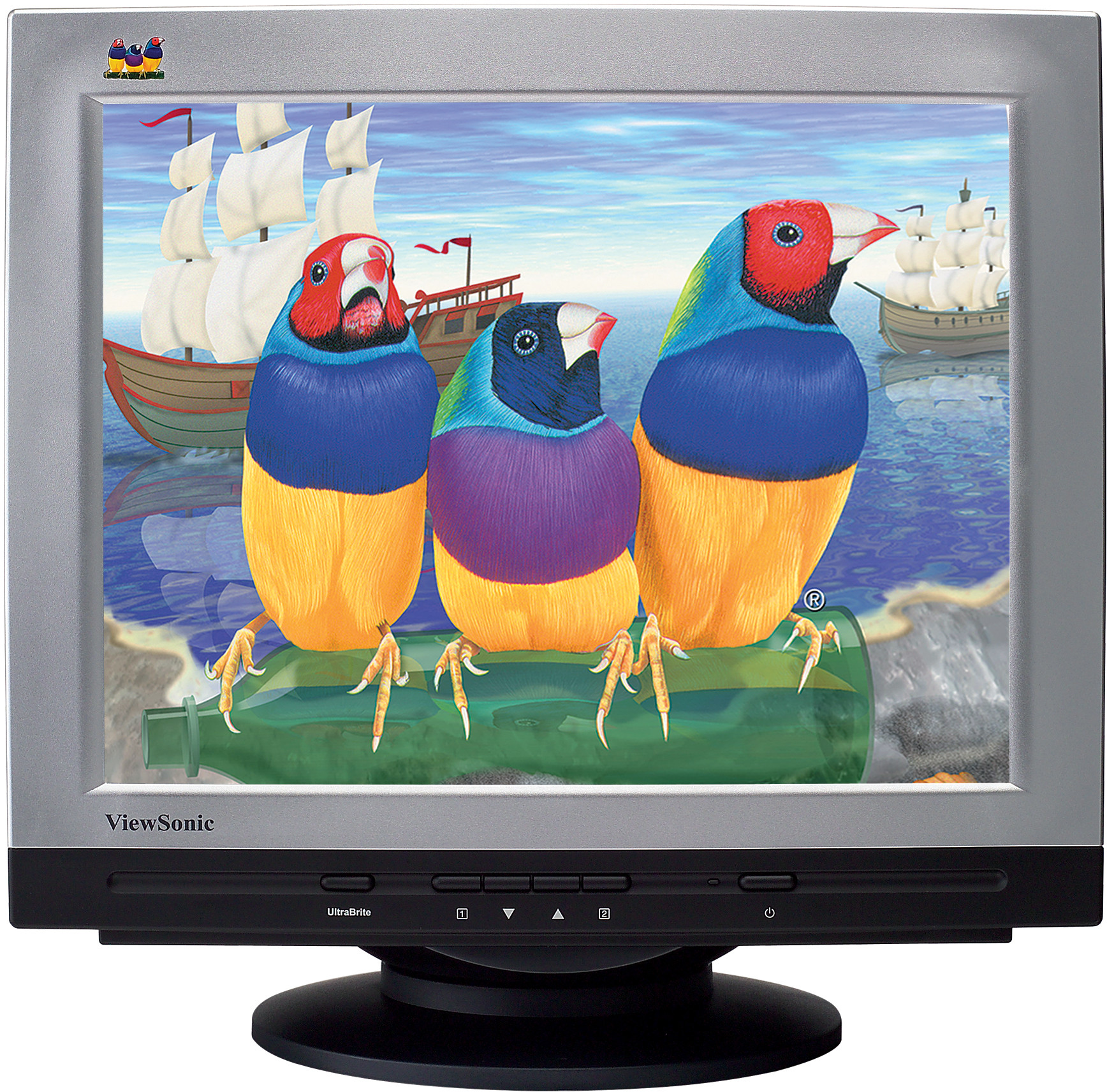

The 19” E92f+SB monitor, with an attractive metallic-on-black design, isequipped with a fine 0.25 mm shadow mask and achieves a maximumresolution of 2048 x 1536. Thanks to UltraBrite technology, this modelprovides perfect brightness and contrast for varying applications. Forexample, users can invoke the extra-rich colours that makes viewingvideos, DVDs, TV or playing games a real treat at the touch of a button.A further press is all it takes to return to normal colour and brightnesslevels for everyday applications. This feature offers professionals excellentcolour saturation for video editing as well as graphic and web design.The portrayals are accurate right to the periphery of the screen andmake a remarkably life-like impression. Due to the flat screen surface,the E92f+SB minimises annoying reflections while also ensuring thatimage proportions remain precise.
Vizitează Noi
  • www.viewsonic.com
  • COMPATIBILITY
    PC: IBM compatible (from VGA up to 1792 x 1344)
    Mac®: Power Mac™ (G3/G4 from 640 x 480 to 1152 x864)
  • DIMENSIONS
    Dimensiuni (DxÎxA): 449mm (W) x 451mm (H) x 453.4mm (D)
  • INPUT SIGNAL
    Frequency: fh: 30-97kHz; fv: 50-180Hz
    Video: RGB analogue (75 ohms, 0.7 Vp-p)
    Sync: H/V separated (TTL), Composite
  • CONNECTOR
    Signal: 15-pin mini D-sub (high density)
    Putere: 3-pin plug (IEC320)
  • POWER
    Voltaj: AC 90-264VAC, 50–60Hz (+/-2)Hz
    Consum: 90W (typ), 110W (max)
  • CONTROLS
    Basic: Power on/off, 1, Down, Up, 2, UltraBrite
    OSD: Contrast, Brightness, Degauss, Horizontal Size, Horizontal
    Position, Vertical Size, Vertical Position, Pincushion,
    Pincushion Balance, Trapezoid, Parallelogram, Tilt, CORNER,
    Horizontal Moire, Vertical Moire, ViewMatch (9300K,
    6500K, 5000K, User), ViewMeter, OSD Position,
    Languages, Memory Recall, Zoom, OSD lock/unlock
  • OPERATING CONDITIONS
    Temperatură: 0–40º C (32–104º F)
    Umiditate: 5–95% (non-condensing)
  • WEIGHT
    Masă: 21.9kg
  • VIDEO INPUT
    Bandwidth: 240MHz
  • POWER MANAGEMENT
    Meets TCO’03
  • CRT
    Tip: 48cm / 19" (18.0" viewable), 90º deflection, PerfectFlat
    Dot Pitch: 0.21mm Hor., 0.14mm Ver., 0.25mm Diagonal dot pitch
    Phosphor: RGB B22 medium/short persistence
    Glass Surface: Tint (TM = 53%), Anti-Reflection and Anti-Static
  • MISCONVERGENCE
    0.25mm (max) at centre

    0.35mm (max) at corners
  • DISPLAY AREA
    Factory Setting: 352mm x 264mm
    Maximum Scan: 360mm x 270mm
