Funcții esențiale

CDP4260-L
Descrierea produsului

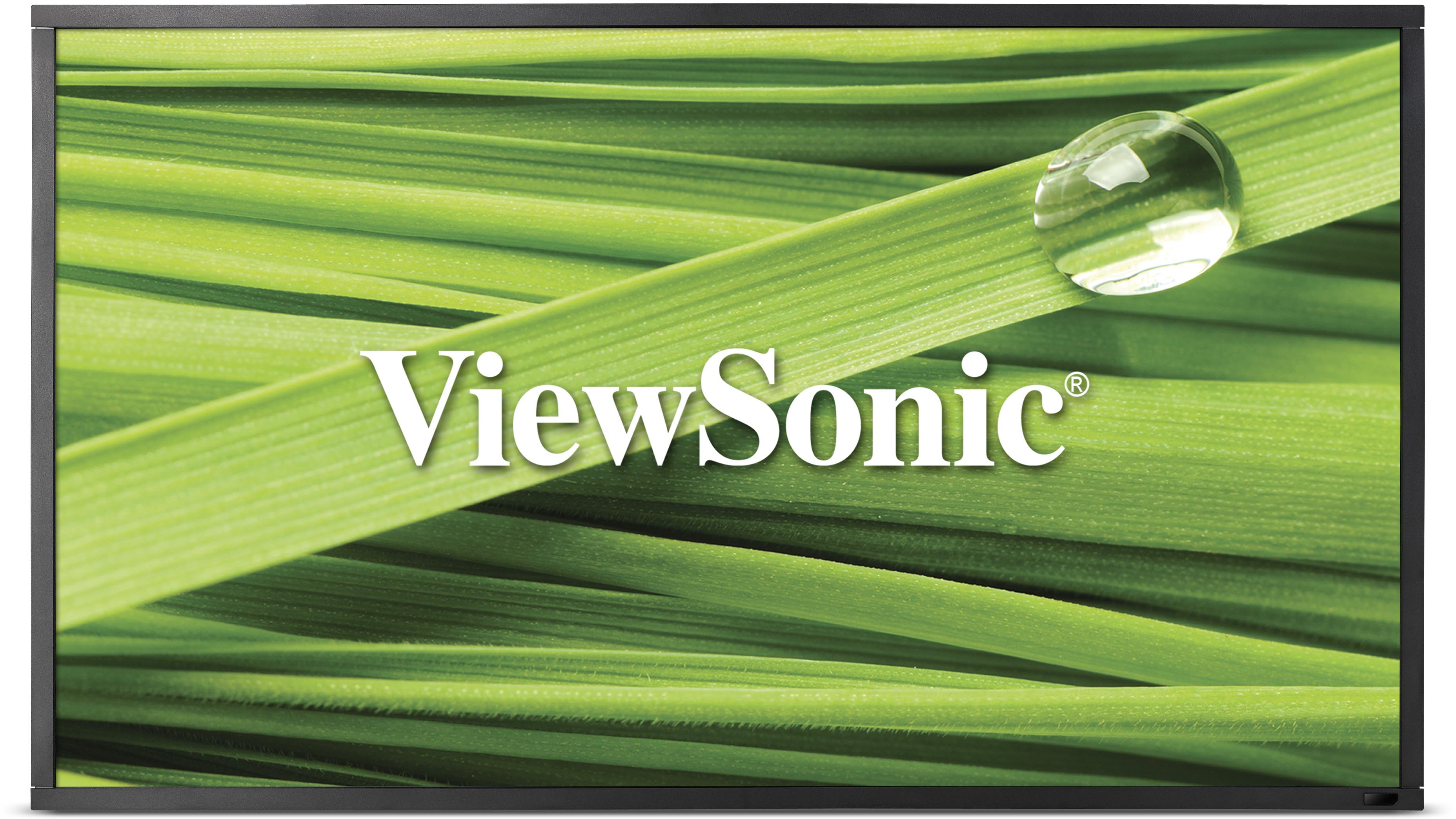

The ViewSonic CDP4260-L is a 42” (42’’ viewable) commercial LED display designed for use 24 hours a day, 7 days a week. The CDP4260-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP4260-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP4260-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP4260-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP4260-L an easy to-manage solution for 24/7 use.
Vizitează Noi
  • www.viewsonic.com
  • LCD
    Tip: TFT LED Module with LED Backlight
    Rată de contrast: 1300:1
    Unghiuri de vizualizare: 178° horizontal, 178° vertical
    Display Area: 930.24(H) x 523.26 (V) (42” diagonal)
    Optimum Resolution: 1920 x 1080
    Timp de răspuns: 12ms
    Panel Surface: hard coating (3H)
    Colour Support: 1073.7M colors
    Size: 42”
    Luminozitate: 450 cd/m2
    Backlight: LED
    Durată de viață sursă de lumină fundal: 30,000 Hours Typ
  • COMPATIBILITY
    RGB PC / HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 480i, 480p,720p,1080i,1080p
    DVI-D: 480i, 480p,720p,1080i,1080p
    YPbPr: 480i, 480p,720p,1080i,1080p
    DP: 480i, 480p,720p,1080i,1080p
  • DIMENSIONS
    Dimensiuni (DxÎxA): 38.1 x 22 x 2.7 (inches) / 965.8 x 558.8 x 69 (mm)
    Packaging: 46.4 x 31.3 x 9.8 (inches)/ 1178 x 795 x 250 (mm)
  • CONȚINUT PACHET
    1. CDP4260-L & CDP4262-L LCD Monitor

    2. Remote Control with batteries

    3. User manual CD wizard

    4. Quick Start Guide

    5. Power Cables

    6. VGA cable

    *Actual content may differ from market to market
  • WARRANTY
    3-year limited

    **Warranty offered may differ from market to market
  • CONNECTOR
    Audio Out: x 1
    HDMI (input): x 1
    RS-232: x 1
    RGB: x 1
    Audio Input: x 1
    DVI: x 1
    Difuzor: x 1
    PC Audio Input: x 1
    CVBS: x 1
    IR Pass Through: x 1
    DP: x 1
  • POWER
    Voltaj: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
  • CONTROLS
    Picture: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Brightness, Contrast, Sharpness,Black Level, Tint, Color, Colour Temperature, Gamma
    Screen: Selection, Noise Reduction, Film Mode, Picture Reset Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset
    PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset
    Configuration 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset
    Configuration 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset
    Advanced Options: Input Change, Terminal Setting, Scan Conversion, Colour System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset
    Sound: Balance, Treble, Bass, Audio Reset
    Configuration 3: Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset
  • VESA® MOUNT
    400 x 200mm/ 200 x 200mm
  • WEIGHT
    Greutate: 53.1 (lbs)/ 24.1 (kg)
    Masă: 45.4 (lbs)/ 20.6 (kg)
  • OPERATING CONDITIONS
    Umiditate: 20% ~ 80% non-condensing
    Temperatură: 0°C to 40°C
    Altitude: 0 meter to 3,000 meters (9842ft) above sea level
  • VIDEO I/O
    YPbPr in: x 1
  • AUDIO I/O
    Speakers: 10-watt x 2
  • PORT
    RJ45: x 1
