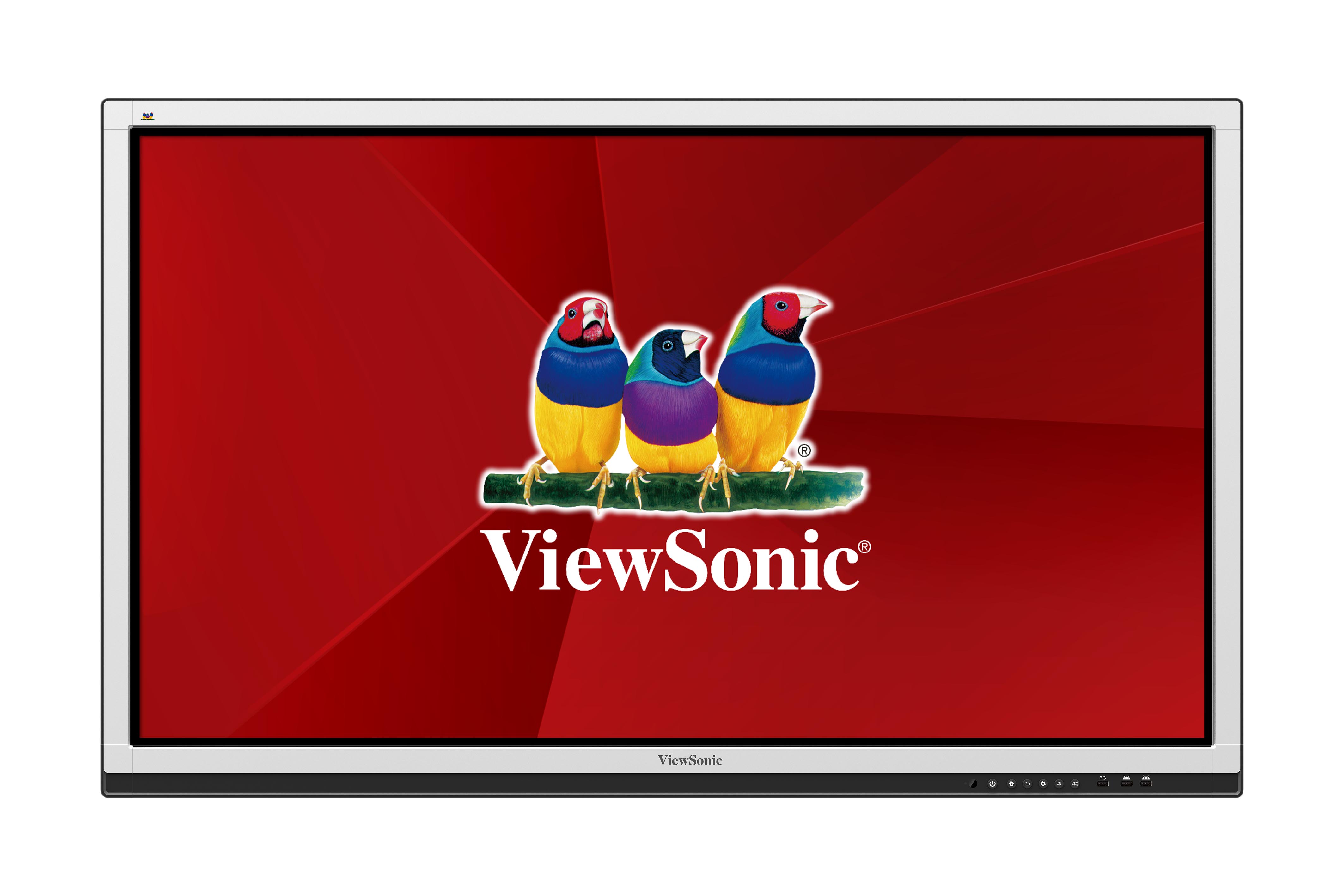

CDE7061T
Descrierea produsului
The ViewSonic® CDE7061T 70’’ Full HD interactive flat panel display is a perfect solution for interactive business and educational classroom applications. This 20-point touch-enabled display, paired with PC-less operation and pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s 7H hardness surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms, while Flicker-Free and Blue Light filter technologies create a more comfortable viewing environment. With a built-in dual core processor and 8GB internal storage, as well as versatile connectivity including HDMI, VGA, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP711-P10) capability with Windows® 10 OS and ViewBoard annotation software, for more computing-intensive interactive applications. The CDE7061T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Vizitează Noi
  • www.viewsonic.com
  • CD PANEL
    Dimensiune Panel: 70” (69.5” viewable)
    Tipul/ Tehnologia: TFT LCD Module with LED Backlight
    Suprafață Display (mm): 1549.44(H)x871.56(V) (70.0" diagonal)
    Aspect Ratio: 16:09
    Rezoluție: 1920x1080
    Colors: 1 billion colors
    Luminozitate: 350 nits (typ.)
    Rată de contrast: 4000:1 Typ.
    Timp de răspuns: 6ms
    Unghiuri de vizualizare: H = 176, V = 176
    Backlight: LED
    Durată de viață sursă de lumină fundal: 50,000 Hours Typ
    Hardness: 7H
  • TOUCH
    Tipul/ Tehnologia: Infrared
    Rezoluție Touch: 32767 x 32767
    Touch Point: 20 points for gesture, 5 points for writing
    Response time: 15ms MAX.
    System: Windows10 / Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome
  • INPUT
    HDMI: x3
    RGB/ VGA: x3
    Audio: x3 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS / ViewSonic PC module slot: N/A / x1 (for NMP710)
  • OUTPUT
    RGB/ VGA: x1
    SPDIF: x1 (Coxial)
  • LAN
    RJ45: x1
  • USB
    Tip A: x3 (2.0); x1 (3.0)
    Tip B: x1 (for touch)
  • DIFUZOARE
    10W x 2
  • BUILT-IN PC
    Procesor: ARM Cortex A9 Dual Core CPU
    Graphic: ARM Mali400 MP4
    Memorie: 1.5GB
    Stocare: 8GB
    Networking: Integrated 10/100/1000M Adaption
  • COMPATIBILITY
    RGB PC/ HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 480i, 480p,720p, up to 1080
  • CONTROLS
    Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
    Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
    Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist
  • POWER
    Voltaj: 100-240VAC +/- 10% Wide Range
    Consum: "On" 350W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400 (M8 x 60mm)With Wall Mount Spacer
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Umiditate: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Dimensiuni (inch/ mm): 65.6 x 40.0 x 3.9 / 1665 x 1015x 98
    Ambalare (inch/ mm): 71.0 x 44.6 x 9.6 / 1803 x 1134x 1803
  • WEIGHT
    Masă (Ib/ kg): 121.25 / 55
    Greutate (Ib/ kg): 149.91 / 68
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX?
    • CDE Interactive Large Format Display Monitor
    • VGA cable
    • Power cable x 4
    • Remote control
    • USB cable
    • Audio cable
    • Touching pen x 3
    • User manual CD wizard
    • RS232 adapter
