Główne cechy

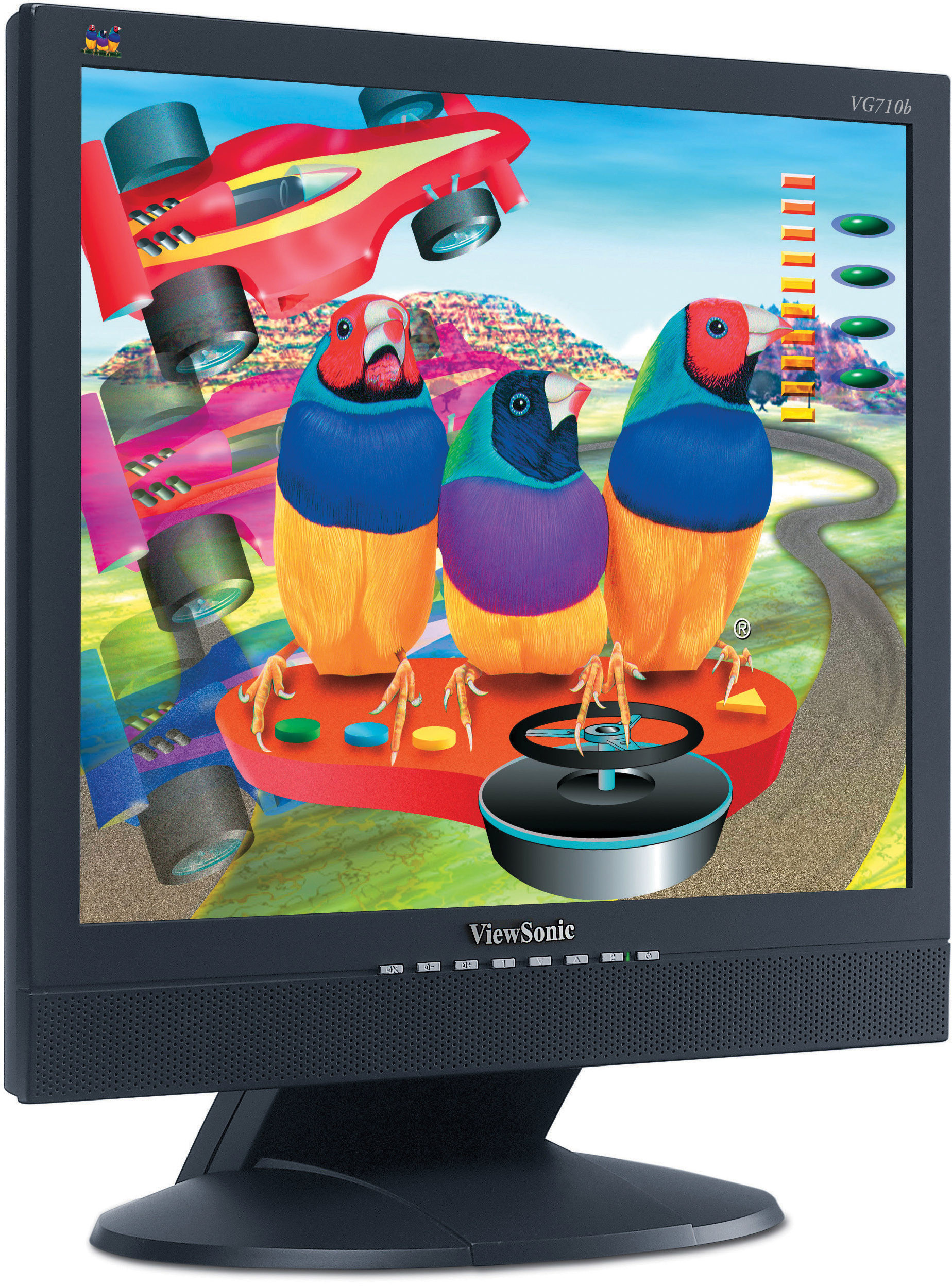

VG710b
Opis produktu
Odwiedź Nas
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Typ: 43mm / 17.0" colour TFT active matrix SXGA LCD
    Współczynnik kontrastu: 450:1 (typ)
    Kąty widzenia: 140° horizontal, 120° vertical
    Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
    Optimum Resolution: 1280x1024
    Czas reakcji: 16ms (typ.)
    Panel Surface: Anti-glare
    Jasność: 250 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280x1024
    Mac®: Power Mac™ G3/G4 up to 1280x1024
  • DIMENSIONS
    Physical With Stand: 378mm x 405mm x 177mm (with stand)
    Physical Without Stand: 378mm x 405mm x 50mm (without stand)
  • AUDIO
    Głośnik: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Moc: 3-pin AC plug
    Dźwięk: 3.5mm audio line-in
    Signal: 15-pin mini D-sub, DVI-D
  • POWER
    Napięcie: AC 100–240V external adapter
    Zużycie energii: < 36W (typ)
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness input select, audio adjust
    (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
    5400K, 5000K, user colour), information (mode, model
    number, serial number), manual image adjust (H. size, H. position,
    V. position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout), memory recall
  • OPERATING CONDITIONS
    Temperatura: 0–40°C
    Wilgotność powietrza: 10–90% (non-condensing)
  • WEIGHT
    Waga netto: 5.3kg
  • VIDEO INPUT
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
  • POWER MANAGEMENT
    Meets TCO’03 (VG710s), TCO’99 (VG710b) and ENERGY standards.
