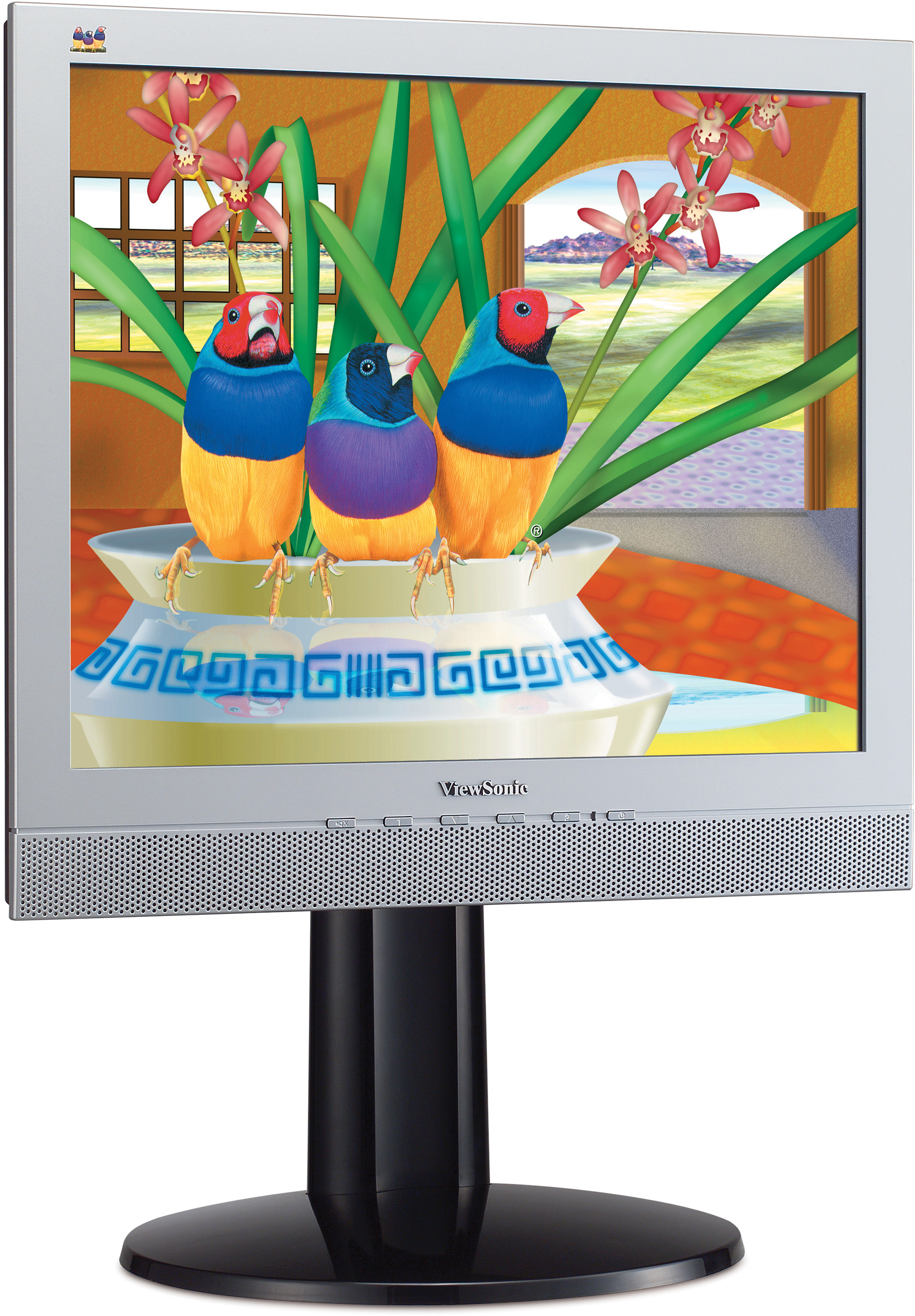

ViewSonic VE720m ERGONOMIC 43 cm / 17" LCD MONITOR WITH MULTIMEDIA

LCD

Typ:	43cm / 17" TN colour TFT active matrix SXGA LCD
Współczynnik kontrastu:	350:1 (typ.)
Kąty widzenia:	160° horizontal, 120° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Jasność:	350cd/m² (typ.)
Display Area:	33.8cm horizontal x 27.0cm vertical; 43.2cm diagonal
Optimum Resolution:	1280 x 1024
Czas reakcji:	8ms (off-on-off) (typ.)
Źródło Światła:	Long life, 50000 hrs. (typ.)
Panel Surface:	Anti-glare 3H
Pixel Pitch:	0.264mm
Colour Support:	16.2M colours (6-bit+2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)
DIMENSIONS

Physical With Stand: 386mm x 404mm – 504mm x 221mm (with stand)

Physical Without Stand: 386mm x 354mm x 61mm (without stand)
ZAWARTOść OPAKOWANIA

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Głośnik: 2 x 1-watt

Amplifier: 1-watt @ THD < 8%
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Moc: 3-pin AC plug (CEE22)

Dźwięk: 3.5mm stereo audio line-in
POWER

Napięcie: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Zużycie energii: <42 watt (typ.) <2 watt in power save mode

CONTROLS

Basic:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6800K, 6500K, User-RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), audio (volume, mute), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 0°C – 40°C

Wilgotność powietrza: 10% – 90% (non-condensation)
WEIGHT

Waga: 4.3kg (with stand)
VIDEO INPUT

Frequency: Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)

Sync: H/V separate (TTL)
POWER MANAGEMENT

Meets TCO’99 and Energy Star® standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA® FPMPMI 75mm x 75mm
ERGONOMICS

Nachylenie: Down 5°, up 20°

Height Adjustment: 0 ~ 100mm

PC:	VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)

Physical With Stand:	386mm x 404mm – 504mm x 221mm (with stand)
Physical Without Stand:	386mm x 354mm x 61mm (without stand)

Analogue:	15-pin mini D-Sub (detachable cable)
Moc:	3-pin AC plug (CEE22)
Dźwięk:	3.5mm stereo audio line-in

Napięcie:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Zużycie energii:	<42 watt (typ.) <2 watt in power save mode

Temperatura:	0°C – 40°C
Wilgotność powietrza:	10% – 90% (non-condensation)

Głośnik:	2 x 1-watt
Amplifier:	1-watt @ THD < 8%

Nachylenie:	Down 5°, up 20°
Height Adjustment:	0 ~ 100mm
