Główne cechy

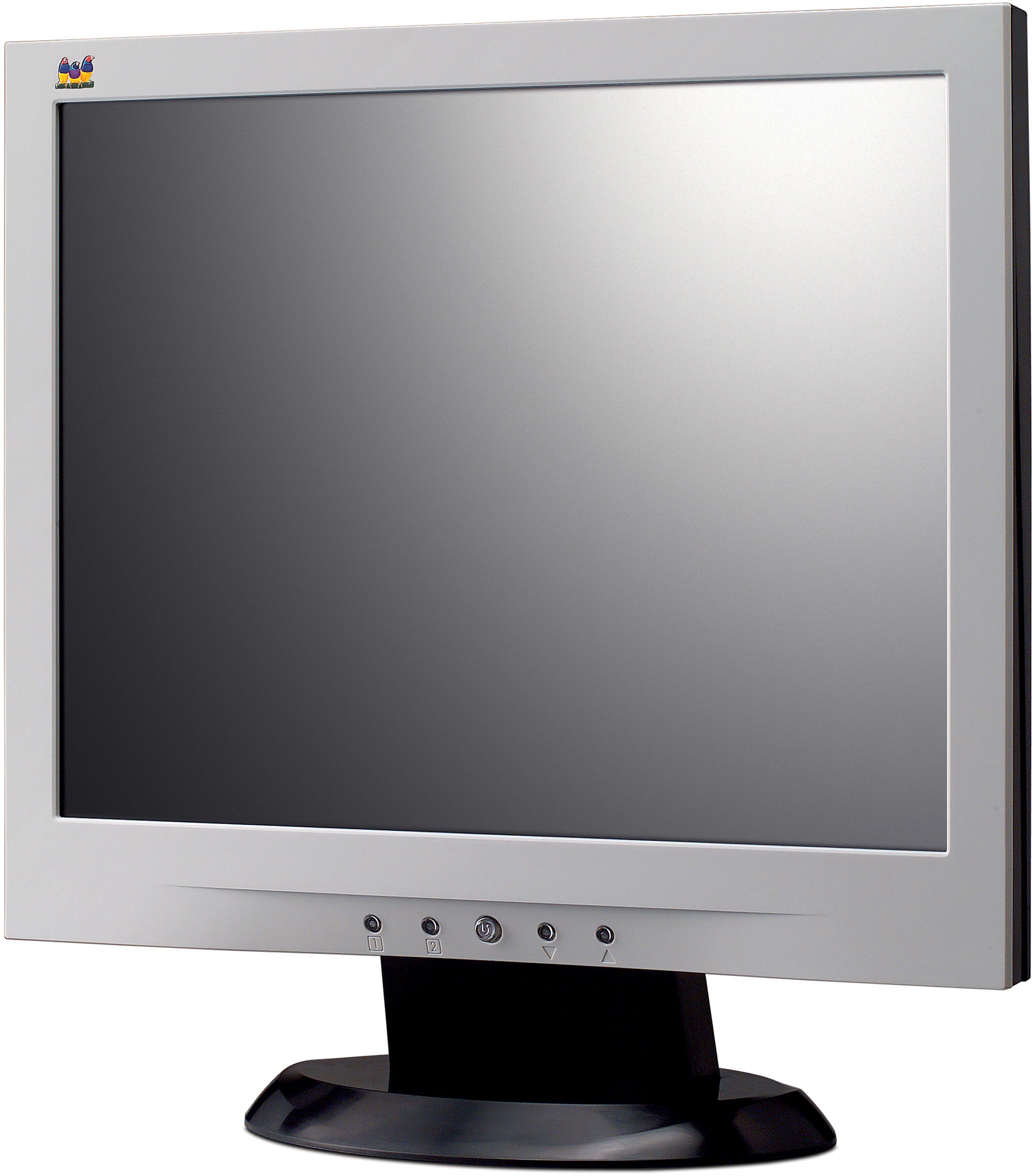

VA503m
Opis produktu
Odwiedź Nas
  • www.viewsonic.com
  • LCD
    Typ: 38cm / 15" TN colour TFT active matrix XGA LCD
    Współczynnik kontrastu: 450:1 (typ.)
    Kąty widzenia: 120° horizontal, 100° vertical (at 10:1)
    Jasność: 250cd/m² (typ.)
    Display Area: 30.4cm horizontal x 22.8cm vertical; 38.1cm diagonal
    Optimum Resolution: 1024 x 768
    Czas reakcji: 16ms (off-on-off) (typ.)
    Źródło Światła: Long life, 30000 hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.297mm
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Pixel Clock: 85MHz
  • COMPATIBILITY
    PC: VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)
    Mac®: Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended)
  • DIMENSIONS
    Physical With Stand: 344 x 348 x 147
    Physical Without Stand: 344 x 290 x 54
  • ZAWARTOść OPAKOWANIA
    LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • AUDIO
    Głośnik: 2 x 1 Watt integrated invisible stereo speakers
  • CONNECTOR
    Analogue: 15-pin mini D-sub (attached cable)
    Moc: 3-pin AC plug (CEE22)
    Audio (input/output): 3.5mm stereo audio line-in
  • POWER
    Napięcie: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Zużycie energii: <23 watt (max.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperatura: 0°C – 40°C
    Wilgotność powietrza: 20% – 90% (non-condensing)
  • WEIGHT
    Net With Stand: 2.7kg
  • VIDEO INPUT
    Frequency: Fh: 30 – 82kHz
    Fv: 50 – 85Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
  • POWER MANAGEMENT
    Meets TCO’99 and Energy Star standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 75mm x 75mm
  • ERGONOMICS
    Nachylenie: Down 5°, Up 20°
