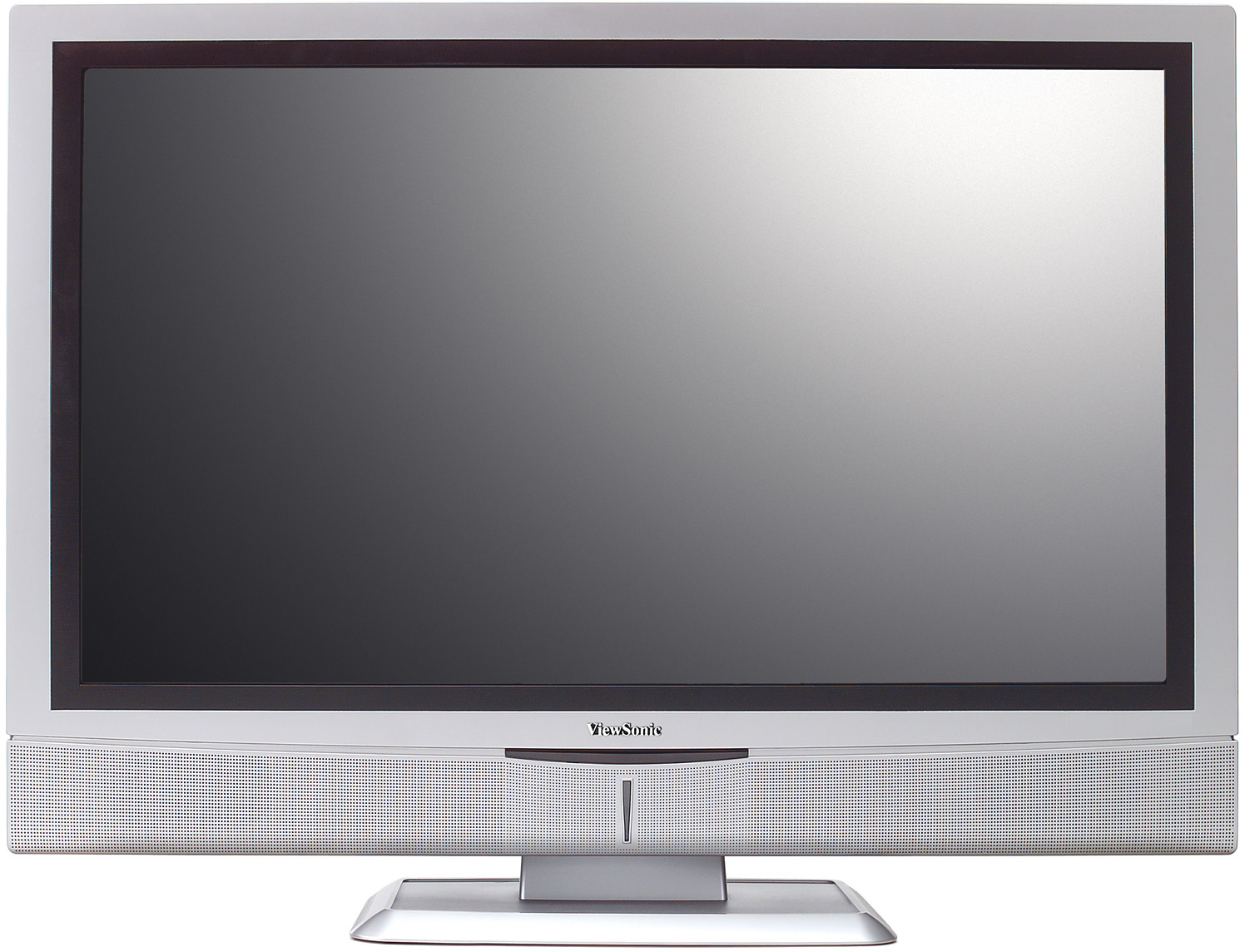

ViewSonic N3240w 32” WIDESCREEN HD-READY LCD TV WITH SRS DIGITAL SURROUND SOUND

LCD

Typ:	32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Współczynnik kontrastu:	1200:1 (typ.)
Kąty widzenia:	176° horizontal, 176° vertical (at 20:1)
Jasność:	500cd/m² (typ.)
Glass Surface:	Anti-glare 3H
Display Area:	70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Czas reakcji:	8ms (grey-to-grey)
Proporcje obrazu:	16:9 native

COMPATIBILITY

PC: Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS

W x H x D mm: 810 x 605 x 237 (with base)

810 x 556 x 116 (without base)

984 x 707 x 252 (packaging)
ZAWARTOść OPAKOWANIA

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Głośnik: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTOR

Digital:	1 x HDMI (HDCP)
Audio Out:	1 x L/R RCA set
Moc:	3-pin plug (CEE22)
Composite Video Input:	2 x RCA
S-Video Input:	1 x 4-pin mini DIN jack
Audio Input:	1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC)
Dźwięk:	Audio-In 1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC) Audio-Out 1 x L/R RCA set
SCART:	2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Tuner:	1 x Coax RF (PAL/SECAM)
PC-VGA:	1 x 15-pin mini D-sub
Composite Video:	1 x RCA set (YPbPr/YCbCr)

POWER

Napięcie: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Zużycie energii: 180 watt (max.)

CONTROLS

Basic:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock

OPERATING CONDITIONS

Temperatura: 0°C to 35°C

Wilgotność powietrza: 20% to 90% (non condensation)
WEIGHT

Waga netto: 15.6kg (with base), 14.1kg (without base)

Brutto: 19.1kg
VESA MOUNT COMPLIANT

VESA FDMI 200mm x 200mm, M6 screws
VIDEO INPUT

PAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
TELETEXT/MHEG5

Yes (1000 pages)

PC:	Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Napięcie:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Zużycie energii:	180 watt (max.)

Temperatura:	0°C to 35°C
Wilgotność powietrza:	20% to 90% (non condensation)

Waga netto:	15.6kg (with base), 14.1kg (without base)
Brutto:	19.1kg
