Główne cechy
  • Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience​
  • myViewBoard Whiteboard software with engaging classroom tools​
  • Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
  • Intuitive remote device control and multimedia broadcast with myViewBoard Manager ​
  • Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradeable to Android 13)

ViewBoard IFP8650-5
Opis produktu
Designed with modern educators in mind, the ViewBoard® 50-5 Series offers an intuitive and interactive interface for a multi-user writing experience. With a single-cable USB-C for instant, worry-free connectivity, teachers can seamlessly plug-in and control their devices while continuing the lesson. Both students and educators enjoy smooth writing with Ultra Fine Touch Technology offering 40-point touch, and the dual-pen that comes in a range of colors and sizes. Rest assured you and your students' eyes are cared for and protected as the ViewBoard® 50-5 Series comes with Flicker-Free technology and an integrated TÜV certified blue light filter for all brightness levels. Fully integrated with the myViewBoard suite, the ViewBoard® 50-5 Series brings together hardware and software for a complete classroom solution. Compatible with a full line of accessories, the ViewBoard® 50-5 Series enables you to effectively teach with a variety of engaging tools.

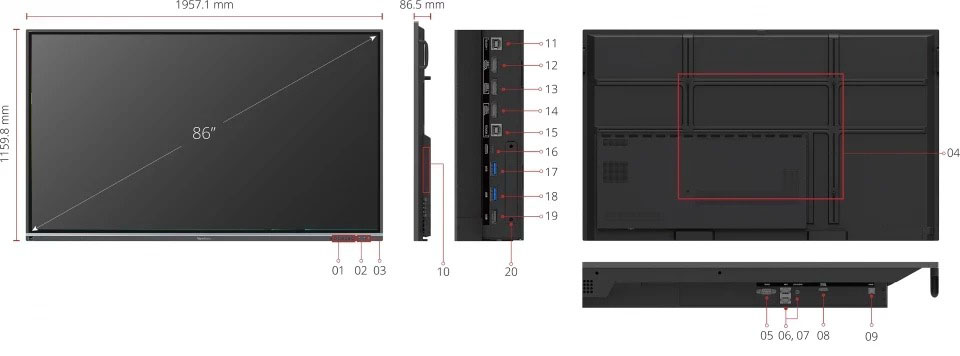

  1. Menu Control
  2. USB 3.0
  3. USB 2.0
  4. VESA® Wall Mount (800x600mm)
  5. RS-232
  6. LAN
  7. AUDIO OUT
  8. HDMI OUT
  9. SPDIF
  10. OPS Slot
  11. TOUCH 1
  12. HDMI 1
  13. HDMI 2
  14. HDMI 3
  15. TOUCH 2
  16. USB Type-C
  17. USB 3.0
  18. USB 3.0
  19. USB 2.0
  20. Wi-Fi Module Slot
Odwiedź Nas
  • www.viewsonic.com
  • WYśWIETLACZ
    Rozmiar panelu: 86"
    Typ panelu: TFT LCD Module with DLED Backlight. IPS
    Obszar wyświetlania (mm): 1913.0(H) x 1084.0 (V)
    Proporcje obrazu: 16:9
    Rozdzielczość: UHD 3840x2160
    Colors: 1.07B colors (10bit)
    Jasność: 450 nits
    Współczynnik kontrastu: 1200:1 (typ.) 5000:1 (DCR)
    Czas reakcji: 8ms
    Kąty widzenia: H = 178, V = 178 typ.
    Czas pracy podświetlenia: 50,000 hours (Min)
    Obróbka powierzchni: Hardness: 7H, Anti-glare coating
    Ramka: Slim
    Orientacja: Landscape
    Disclaimer: 50,000 hours backlight life at 8 hours of use per day
  • PLATFORMA
    Procesor: ARM Cortex-A73*4 + Cortex-A53*4
    RAM: 4GB
    Pamięć masowa: 32GB
  • TOUCH
    Rodzaj/Technologia: Ultra Fine Touch Techology (IR Recognition)
    Czułość dotyku: 32768 ×32768
    Punkt dotyku: Windows: 40 points of touch, Android : 20 points of touch
  • INPUT
    HDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
    RS232: x1
    OPS: x1
    WiFi: x 1 module slot
  • OUTPUT
    HDMI: x1 (4K@60Hz)
    Dźwięk: x1 (Earphone out)
    SPDIF: x1 (optical)
  • SIEć LOKALNA
    RJ45: x2
  • USB
    Typ A: 2.0 x 2
    3.0 x 4
    Typ B: x2, for touch
    Typ C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)
  • GłOśNIKI
    15W x 2 + 16W x 1 subwoofers
  • TOP CAMERA PLATE
    Yes
  • ZINTEGROWANY SYSTEM OPERACYJNY
    Android 11 (Upgradeable to Android 13)
  • PAKIET OPROGRAMOWANIA
    Basic Annotation Software: myViewBoard
    Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
    Wireless Presentation: vCast/myViewBoard Display App
  • CECHY SZCZEGóLNE
    All-in-one USB port: “SmartPort™ USB” to all channels.
    Proste udostępnianie LAN między IFP a urządzeniem typu "slot-in": Yes
    Light Sensor: Yes
  • MOC
    Napięcie: 100-240VAC +/- 10% Wide Range
    Zużycie energii: 158W(typ.), 0.5W (off)
  • ERGONOMICS
    Uchwyt do montażu na ścianie (standard VESA®): 800 mm x 600 mm
  • OPERATING CONDITIONS
    Temperatura (º C): 0°C to 40°C
    Wilgotność powietrza: 10% ~ 90% RH non-condensing
  • WYMIARY (S X W X G)
    Wymiary fizyczne (cale / mm): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm
    Opakowanie (cale/mm): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm
  • WEIGHT
    Waga netto (lb / kg): 150.8lb/68.4kg
    Brutto (Ib/kg): 200lb/90.7kg
  • REGULATIONS
    cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA
  • ZAWARTOść OPAKOWANIA
    1. Power cord by ship area (UK/EU)

    2. Remote control with AAA battery

    3. Touch USB cable

    4. Touch pen x 2 (VB-PEN-009)

    5. Quick Start Guide + Compliance statement

    6. RS232 adapter

    7. Clamp x 5

    8. Camera Plate

    9. Screw x 8

    10. HDMI cable 3m

    11. USB-C cable 1.8m
  • KOMPATYBILNY KOMPUTER TYPU SLOT-IN
    VPC12-WPO series

    VPC25-O-B series

    VPC27-O-B series
