Wyświetlacz CRT

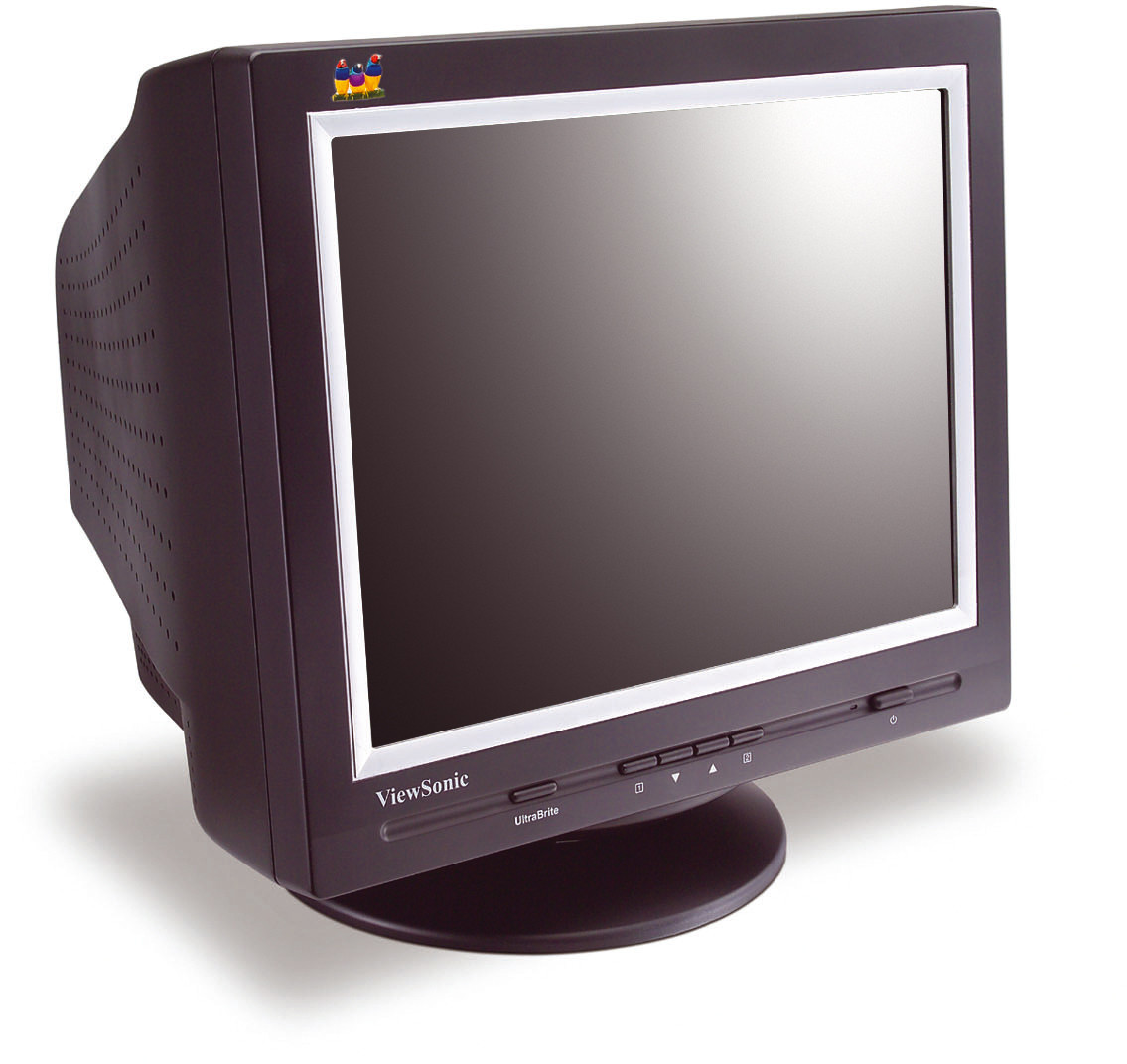

E96fSB
Główne cechy
Opis produktu
Odwiedź Nas
- www.viewsonic.com
-
COLORS
Black -
COMPATIBILITY
PC: PC and compatible (from VGA up to 1792 x 1344) Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864) -
DIMENSIONS
Wymiary fizyczne (szer. x wys. x gł.): 445mm (W) x 424mm (H) x 465mm (D) -
INPUT SIGNAL
Frequency: Fh: 30 – 86kHz
Fv: 50 – 160HzVideo: RGB analogue (0.7 Vp-p, 75 ohms) Sync: H/V separated (TTL) -
CONNECTOR
Moc: 3-pin plug (IEC320) Signal: 15-pin mini D-sub -
POWER
Napięcie: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch) Zużycie energii: 55 watts (typ.) -
CONTROLS
Basic: Power on/off, menu, up, down, select, UltraBrite OSD: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction,
degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall -
OPERATING CONDITIONS
Temperatura: 32-104ºF (0-40ºC) Wilgotność powietrza: 5% to 95% (no condensation) -
WEIGHT
Waga netto: 18.0kg -
VIDEO INPUT
Bandwidth: 210MHz (typ.) -
POWER MANAGEMENT
Meets MPR II -
CRT
Typ: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat Dot Pitch: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal Phosphor: RGB P22 (Cd free) Glass Surface: Tint: (TM ~ 53.6%), anti-reflection, anti-static -
PLUG & PLAY
DDC1, DDC2B -
MISCONVERGENCE
0.25mm (max.) at centre
0.35mm (max.) at corner -
PROGRAMMABLE MODES
Factory: 10 User: 12 -
DISPLAY AREA
Factory Setting: 352mm (H) x 264mm (V) (typ.) Maximum Scan: 360mm (H) x 270mm (V) (depending on signal timing used)
