Główne cechy

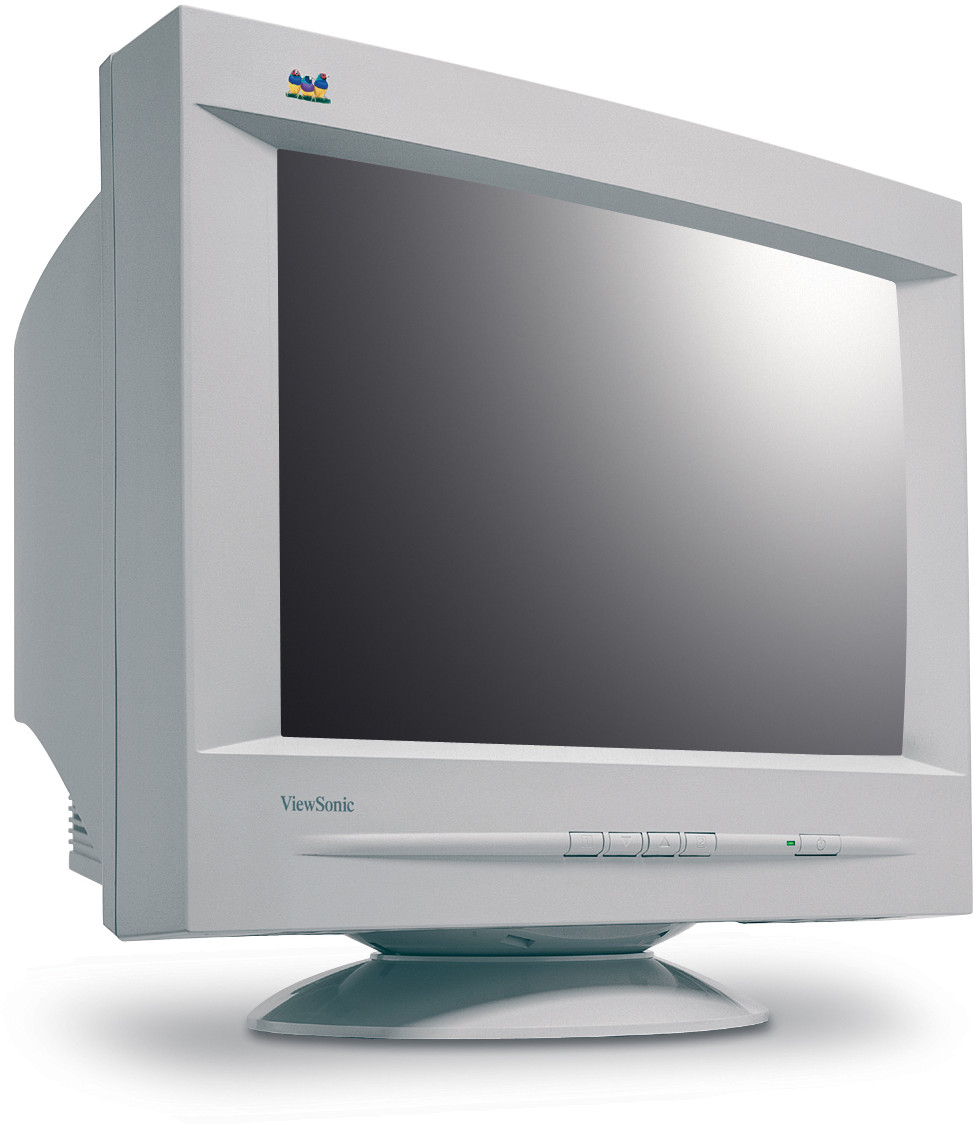

E70
Opis produktu
Odwiedź Nas
  • www.viewsonic.com
  • COMPATIBILITY
    PC: PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)
    Mac®: Power Mac®
  • DIMENSIONS
    Wymiary fizyczne (szer. x wys. x gł.): 410mm (W) x 425mm (H) x 402mm (D)
  • INPUT SIGNAL
    Frequency: Fh: 30 - 70kHz,
    Fv: 50 - 160Hz
    Video: RGB Analogue (0.7V/1.0Vp-p, 75 ohms)
    Sync: H/V separated (TTL), composite
  • CONNECTOR
    Moc: 3-pin plug (IEC320)
    Signal: 15 pin mini D-sub, attached cable
  • POWER
    Napięcie: AC 90 - 264V, 50/60Hz (auto switch)
    Zużycie energii: 75W (typ.), < 2 watt in power save mode
  • CONTROLS
    Basic: Power on/off, Key 1, Key 2, up, down
    OSD: Contrast, Brightness, zoom, H/V Size, H/V Position, Pin-balance, Pincushion, Parallel, Trapezoid, Rotation, moiré reduction, degauss, ViewMatch colour adjust (9300K, 6500K, 5000K, User), mode information (ViewMeter), language, memory recall
  • OPERATING CONDITIONS
    Temperatura: 0°C to 40°C
    Wilgotność powietrza: 5% to 95% (no condensation)
  • WEIGHT
    Waga netto: 14kg
  • VIDEO INPUT
    Bandwidth: 120MHz (Typical)
  • POWER MANAGEMENT
    Meets MPR II
  • CRT
    Typ: 43cm / 17" (16" diagonal viewable area), 90°deflection
    Dot Pitch: 0.27mm dot pitch
    Phosphor: RGB P22 medium/short persistence
    Glass Surface: Anti-static, anti-glare, AR coat (TM=50%)
  • PLUG & PLAY
    DDC1, DDC2B
  • MISCONVERGENCE
    0.25mm (max.) at centre
    0.35mm (max.) at corner
  • DISPLAY AREA
    Factory Setting: 310mm (H) x 230mm (V) (typ.)
    Maximum Scan: 325mm (H) x 243mm (V) (depending on signal timing used)
