ViewBoard
CDE8452T
Główne cechy
Opis produktu

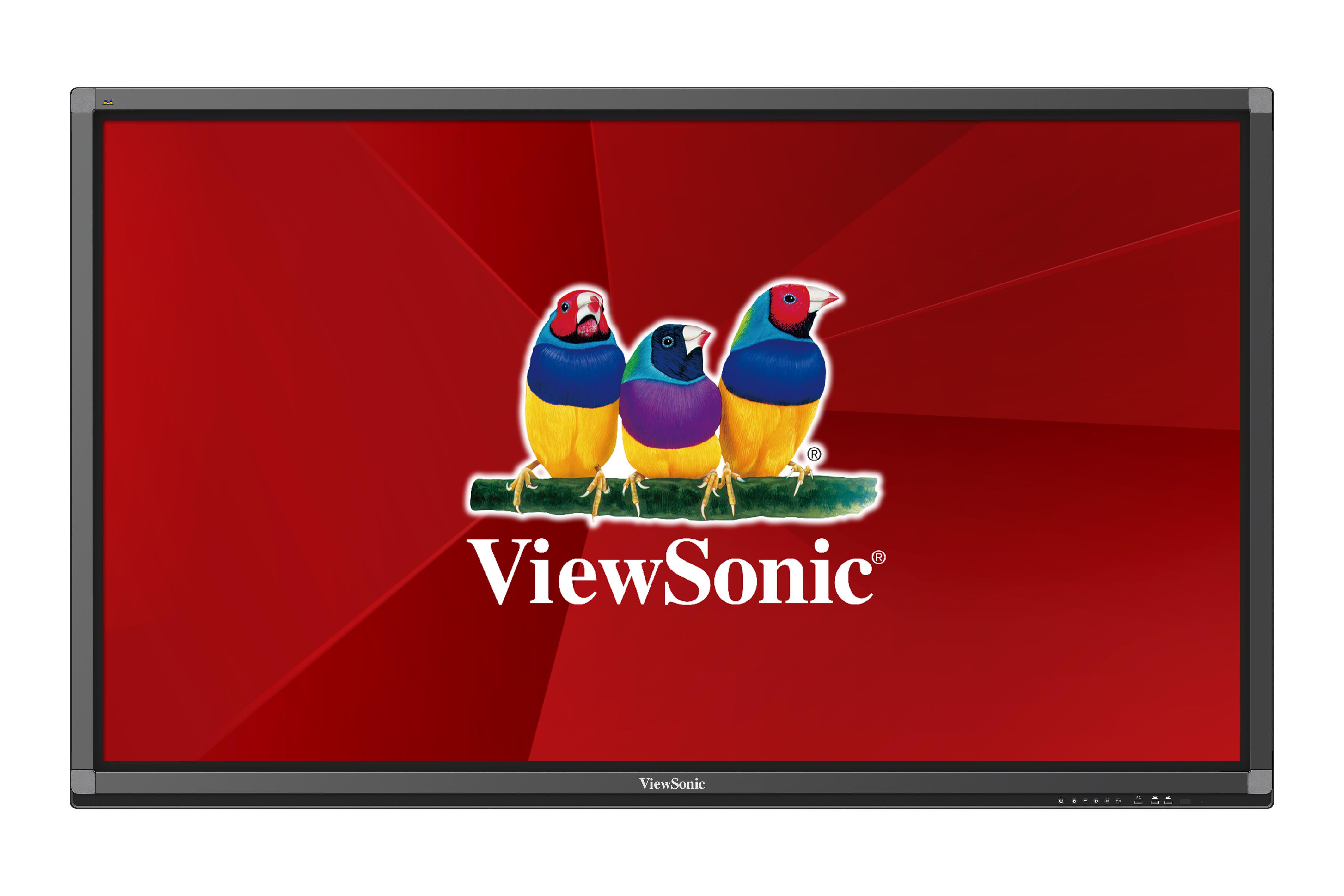

The ViewSonic CDE8452T is a stunning 84" 4K Ultra HD interactive flat panel. Delivering four times the detail of Full HD displays, the CDE8452T is ideal for higher education and corporate meeting applications, as well as for scientific, GIS, and wayfinding applications. The 10-point touch-enabled display allows up to ten users to simultaneously write or draw on the display’s surface using their fingers or styluses. The large-format LED screen and Ultra HD 3840 x 2160 resolution guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the CDE8452T is designed for heavy usage in high-traffic areas. The ViewSonic CDE8452T Ultra HD interactive flat panel is the perfect solution where ultra-high resolution imaging and touch interactive performance is needed.
Odwiedź Nas
- www.viewsonic.com
-
LCD
Display Area: 1860.48mm(H) x 1046.52mm(V), 84” diagonal Optimum Resolution: 3840 x 2160 Współczynnik kontrastu: 1600:1 (typ) Kąty widzenia: 178º horizontal, 178º vertical Czas reakcji: 8 ms Źródło Światła: Long life, 50,000 hrs. (typ) Jasność: 350 cd/m2 (typ) Proporcje obrazu: 16:9 Panel Surface: Anti-glare, hard coating 7H scratch resistant Touch Type: Yes, Infrared, 10 point multi touch Typ: 84" colour TFT LCD Module with LED Backlight -
INPUT
Video Output: VGA Control Input/Output: RS232 Wejście wideo: HDMI, Component, VGA, CVBS -
CONNECTOR
Analog: 3x VGA in (D-SUB), 1x VGA out (D-SUB), 1x CVBS Dźwięk: 3x PC Audio in (3.5mm Jack) USB: 3x USB A type (2.0), 1x USB A type (3.0), 1x USB B type (Touch function) Digital: 3x HDMI (up to 1080p), 1x HDMI (up to 4K2K) -
AUDIO
Speakers: 2x Internal 15 Watt -
VIDEO SIGNAL
HDMI resolution: up to 3840x2160 (30Hz) CVBS resolution: 640x480 (480i) VGA resolution: up to 1920x1200 (60Hz) -
CONTROLS
Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF Mode, AD Switch OSD: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer Panel: Power, Input, PC/VGA, Vol+, Vol-, Zoom, Energy Saving Set Up: OSD Language, TT Language, Hearing Imparied, PVR File System, Record list, Aspect Ratio, Blue Screen, First Time Installation, Reset, Software Update (USB) Advanced Options: Lock System, Set Password, Block Program, Parental Guidance, Key Lock Picture: Picture Mode, Contrast, Brightness, Colour, Tint, Sharpness, Colour Temperature, Noise Reduction -
POWER
Zużycie energii: 500W (Typ), <0.5W (suspend) Napięcie: AC 100–240V (universal), 50–60Hz -
OPERATING CONDITIONS
Wilgotność powietrza: 20–80% (non-condensing) Temperatura: 0-40º C, Landscape mount only -
DIMENSIONS
Wyświetlacz: 1978 x 1187 x 95 mm / 77.9 x 46.7 x 3.7 in. Packaging: 2170x1370x320 mm, 85.4x53.9x12.6 in -
WEIGHT
Waga netto: 107kg/235.89 lb Brutto: 135kg/297.62 lb -
WALL MOUNT
VESA®: 600 x 600mm -
INCLUDED ACCESSORIES
•CDE8452T display
•Power cables (EU, UK)
•VGA cable
•Audio cable
•USB cable
•Remote control with batteries
•Stylus (x3)
•ViewSonic Wizard CD (User Guide and ViewBoard Software) -
OPTIONAL ACCESSORIES
PC Module (NMP711-P10), Trolley (LB-STND-003)
