TD1630-3

16” 10-point Touch Screen Monitor

  • HD 768p Resolution
  • 10-point projected capacitive touch
  • HDMI and VGA inputs
  • Dual integrated speakers
  • Durable, Scratch-resistant Screen
Pytanie dotyczące sprzedaży  udostępnić

PRZEGLĄD

The ViewSonic TD1630-3 is a 16” (15.6” viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X

10-Point Projected Capacitive Touch

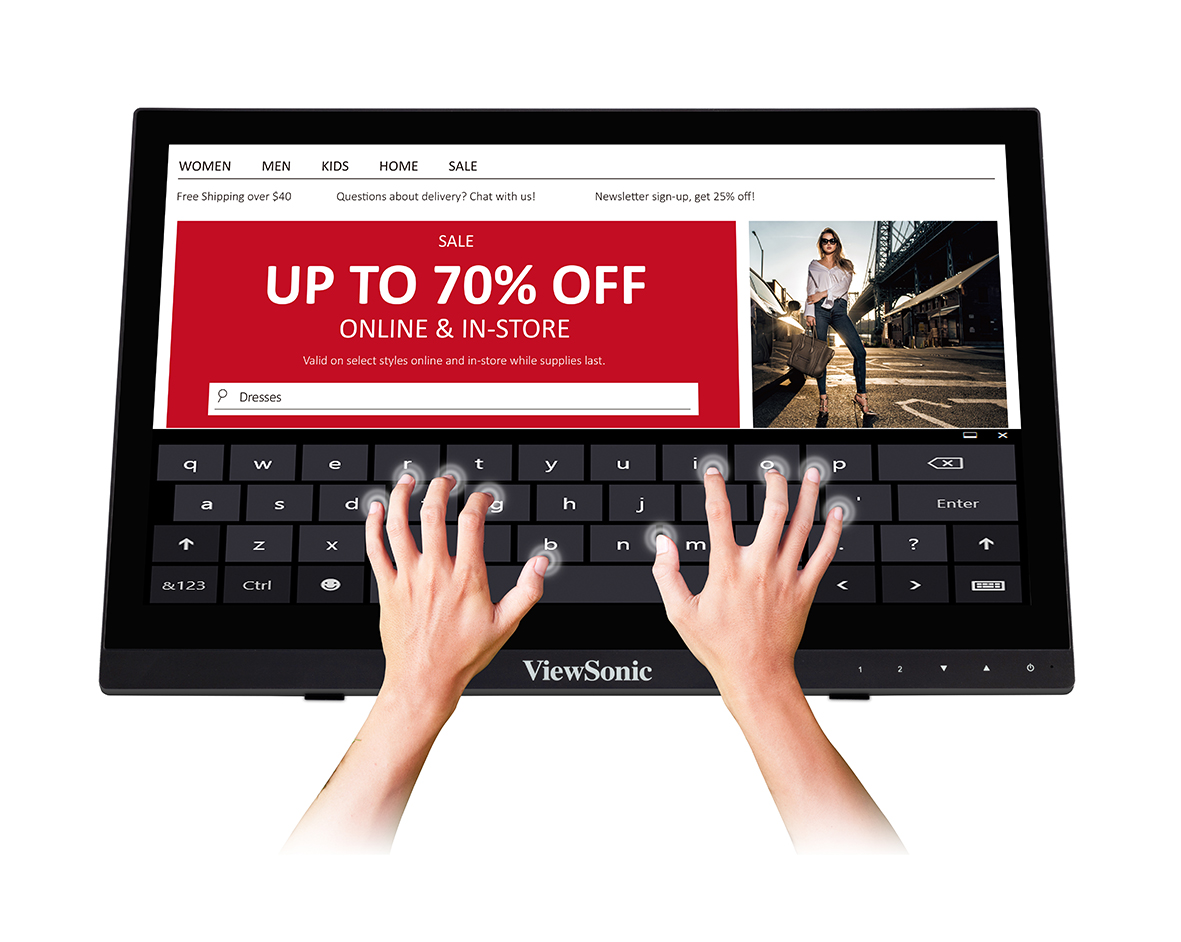

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

Advanced Ergonomic Stand Design

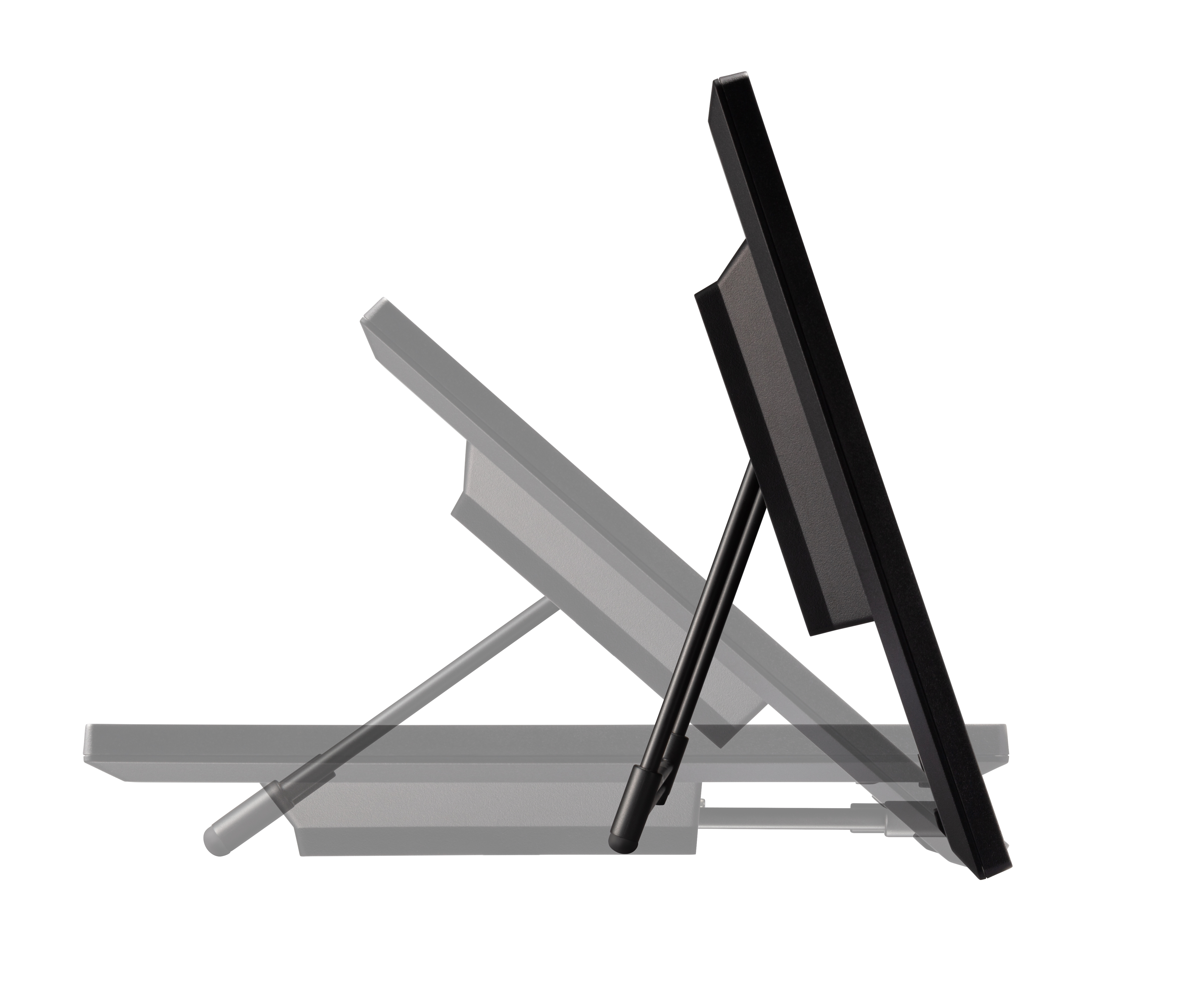

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

Versatile Connectivity

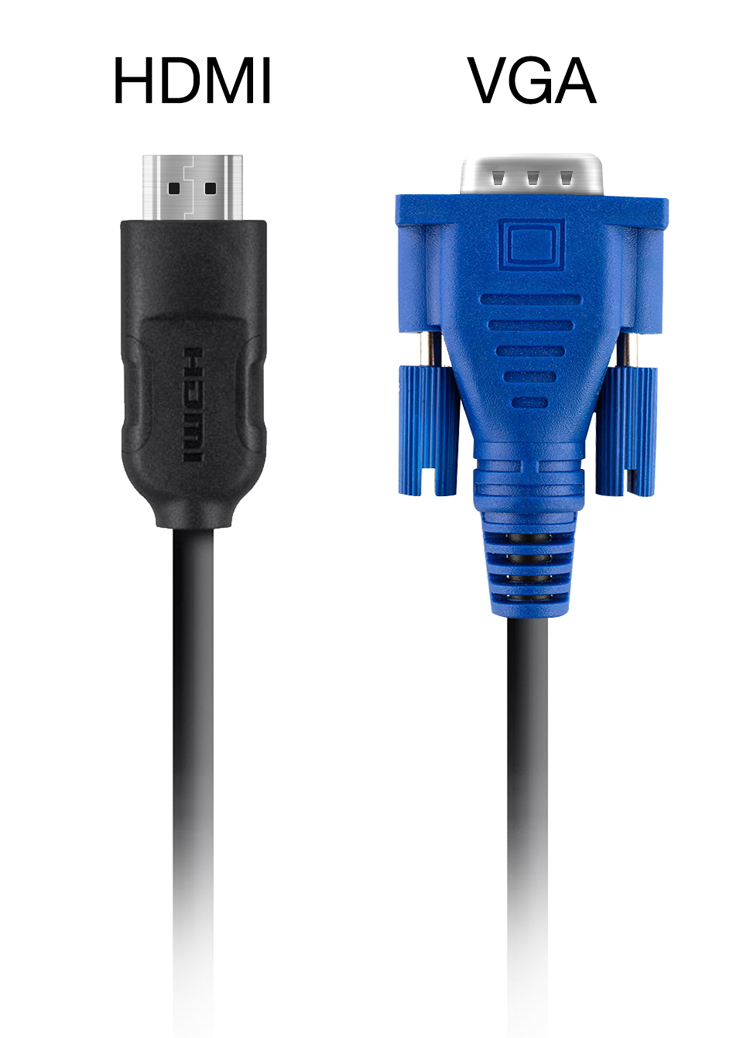

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Cross-platform Compatibility

"Cross compatibility with a wide range of operating systems including Windows 10/11 and certain Linux versions*.
*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X

Durable, Scratch-resistant Screen

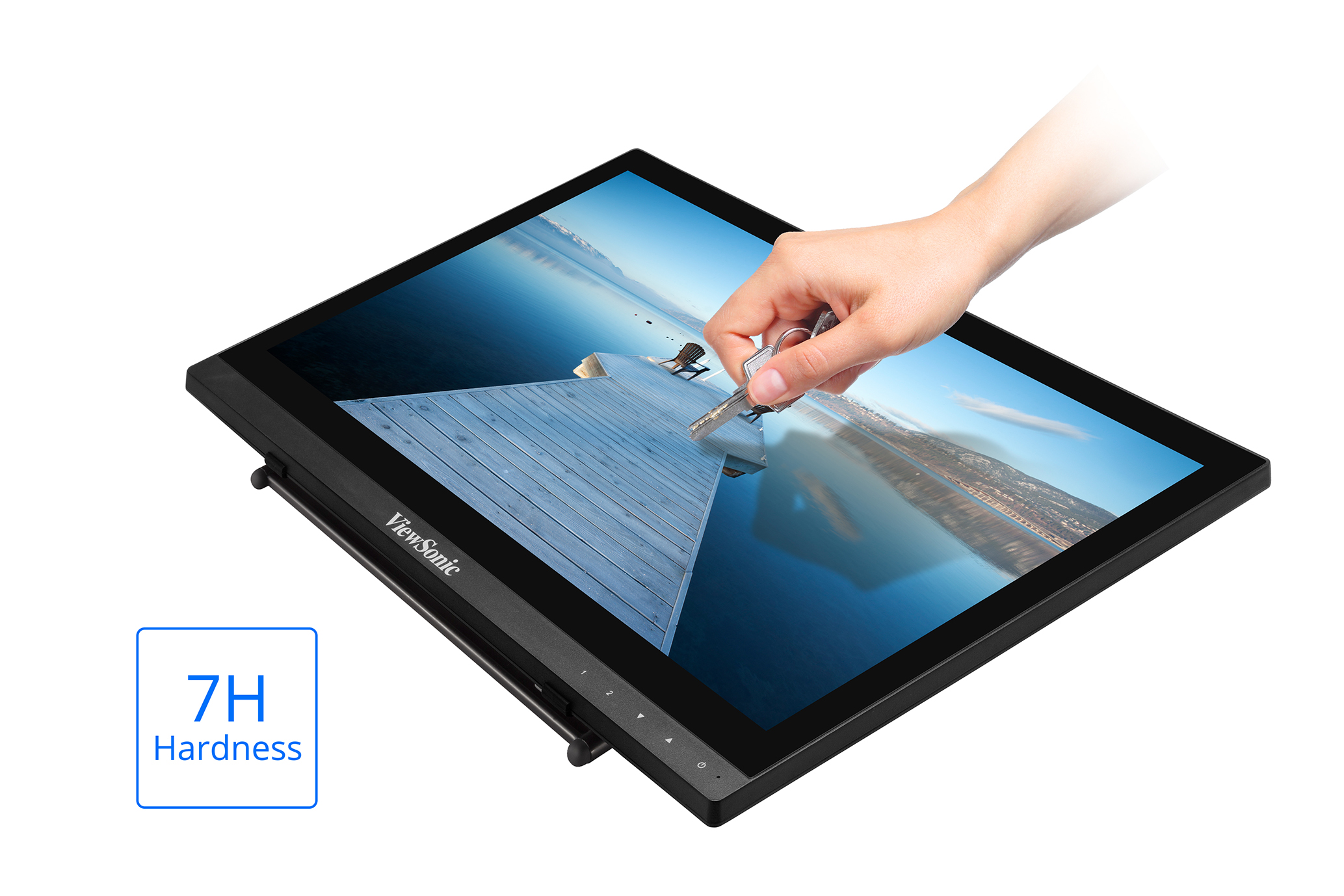

This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.

Dual Integrated Speakers

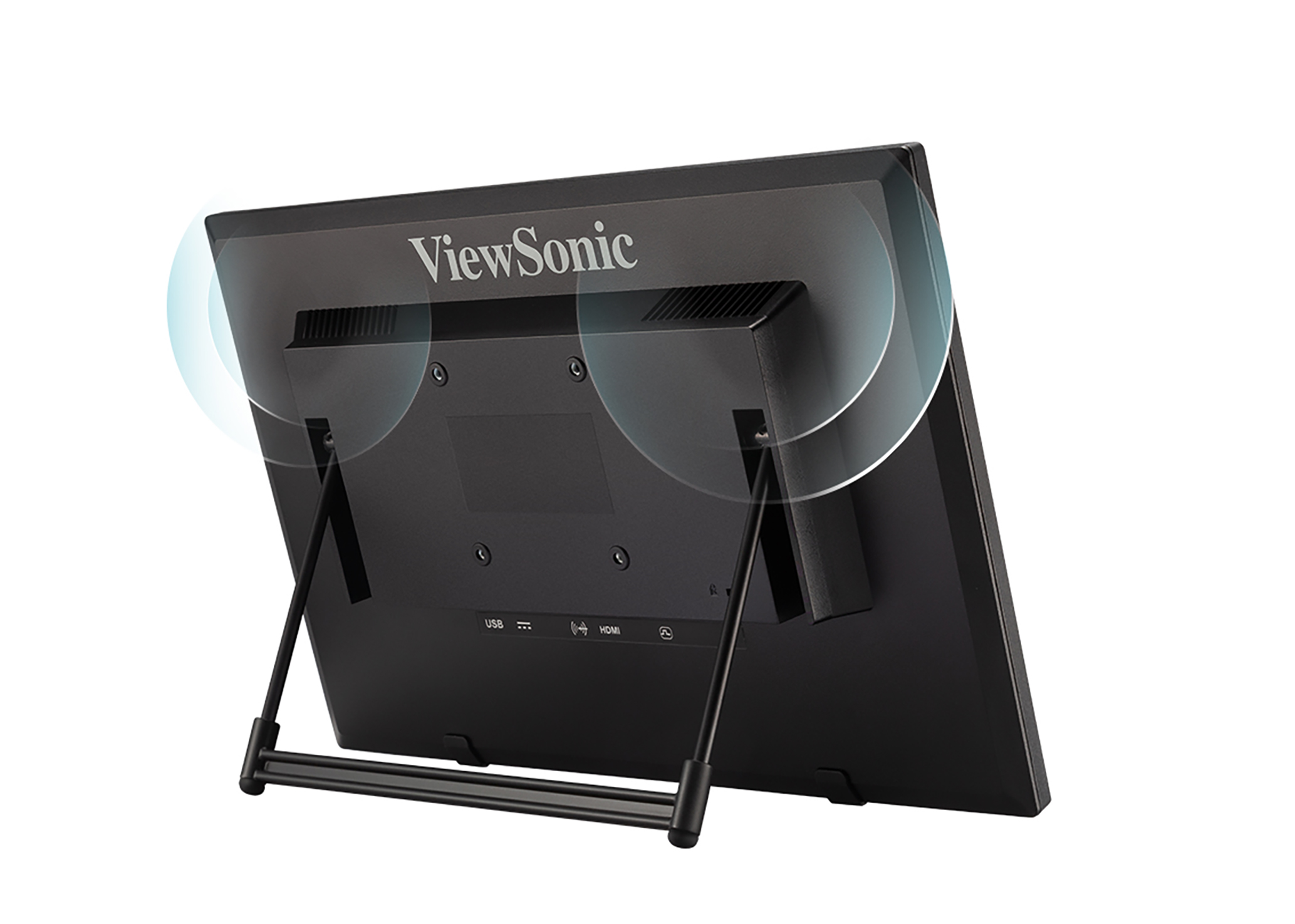

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Enhanced Viewing Comfort

Blue Light Filter helps to eliminate eye strain from extended viewing periods.

VESA-compatible mount

Conveniently mount the monitor to your liking by utilising its VESA compatible mount design.
75mm x 75mm
  1. Internal Speakers
  2. USB
  3. DC In
  4. VESA Compatible(Wall Mount 75x75mm)
  5. VGA
  6. HDMI
  7. Earphone

DANE TECHNICZNE


  • Wyświetlacz
    Rozmiar wyświetlacza (cale): 16
    Widoczny obszar ( cale): 15.6
    Typ panelu: TN Technology
    Rozdzielczość: 1366 x 768
    Typ rozdzielczości: WXGA (Wide XGA)
    Współczynnik kontrastu statycznego: 500:1 (typ)
    Dynamiczny kontrast: 10M:1
    Źródło Światła: LED
    Jasność: 190 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Proporcje obrazu: 16:9
    Response Time (Typical Tr+Tf): 12ms
    Kąty widzenia: 90º horizontal, 60º vertical
    Żywotność podświetlenia (godziny): 15000 Hrs (Min)
    Zakrzywienie: Flat
    Częstotliwość odświeżania (Hz): 60
    Filtr światła niebieskiego: Yes
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 67% size (Typ)
    Rozmiar piksela: 0.252 mm (H) x 0.252 mm (V)
    Ekran dotykowy: Projected Capacitive, 10-point multi-touch
    Obróbka powierzchni: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 0.83mm
  • Kompatybilność
    Rozdzielczość PC (maksymalna): 1366x768
    Rozdzielczość Mac® (maks.): 1366x768
    System operacyjny PC: Windows 7/8/8.1/10/11 certified; macOS tested
    Rozdzielczość Mac® (min.): 1366x768
  • Złącze
    VGA: 1
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    HDMI 1.4: 1
    Wejście zasilania: DC Socket (Center Positive)
