Key Features
  • SuperClear® IPS panel for vivid picture quality and wider viewing angles
  • Frameless bezel and stylish stand
  • 75Hz Refresh Rate delivers fluid visuals
  • Flexible connectivity with VGA and two HDMI ports
  • User-customized and pre-calibrated ViewMode for every scenario

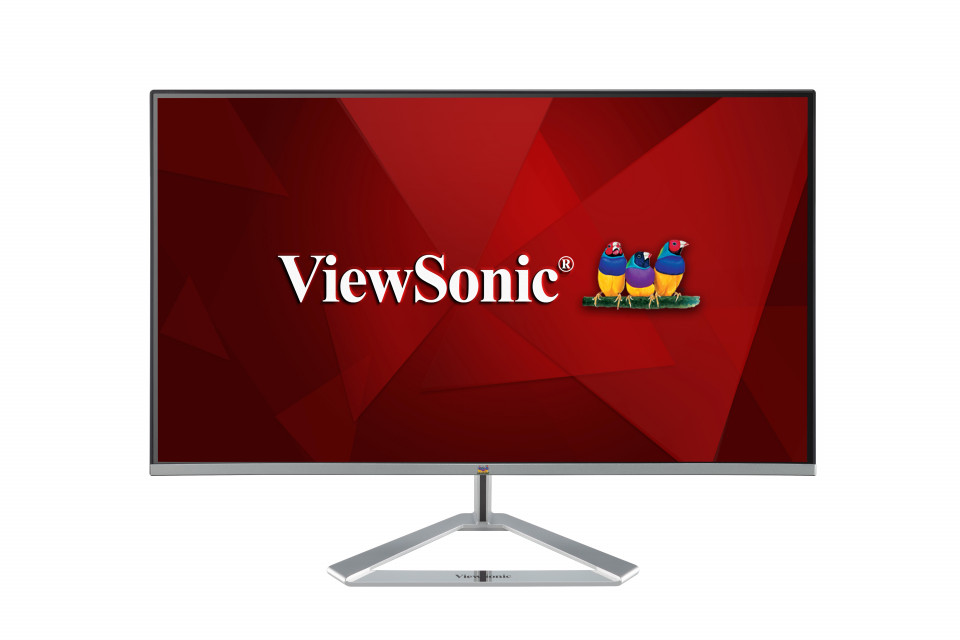

VX2776-SMH
Product Description
Whether for office use or for enjoying entertainment at home, the ViewSonic® VX2776-SMH is designed to take your viewing experience to another level. With a SuperClear® IPS panel and a sleek frameless design, this monitor provides a near-seamless viewing experience ideal for multi-monitor setups. The Full HD resolution boosts efficiency and image detail needed for work or play. A mega dynamic contrast ratio of 80M:1 delivers enhanced image depth for a better user experience. The Built-in HDMI and VGA inputs deliver flexible connectivity options for a wide range of devices.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 27
    Viewable Area (in.): 27
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,300:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 4ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 100
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 100% size (Typ)
    Pixel Size: 0.311 mm (H) x 0.311 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 2
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 18W
    Eco Mode (optimized): 21W
    Consumption (typical): 24W
    Consumption (max): 25W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 15 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -3º / 15º
  • WEIGHT (IMPERIAL)
    Net (lbs): 8.8
    Net Without Stand (lbs): 7.9
    Gross (lbs): 12.1
  • WEIGHT (METRIC)
    Net (kg): 4
    Net Without Stand (kg): 3.6
    Gross (kg): 5.5
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 27.6 x 18.2 x 4.4
    Physical (in.): 24.2 x 17.5 x 7.2
    Physical Without Stand (in.): 24.2 x 14.1 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 702 x 462 x 112
    Physical (mm): 614 x 443 x 184
    Physical Without Stand (mm): 614 x 357 x 49
  • GENERAL
    PACKAGE CONTENTS: VX2776-SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
