Key Features

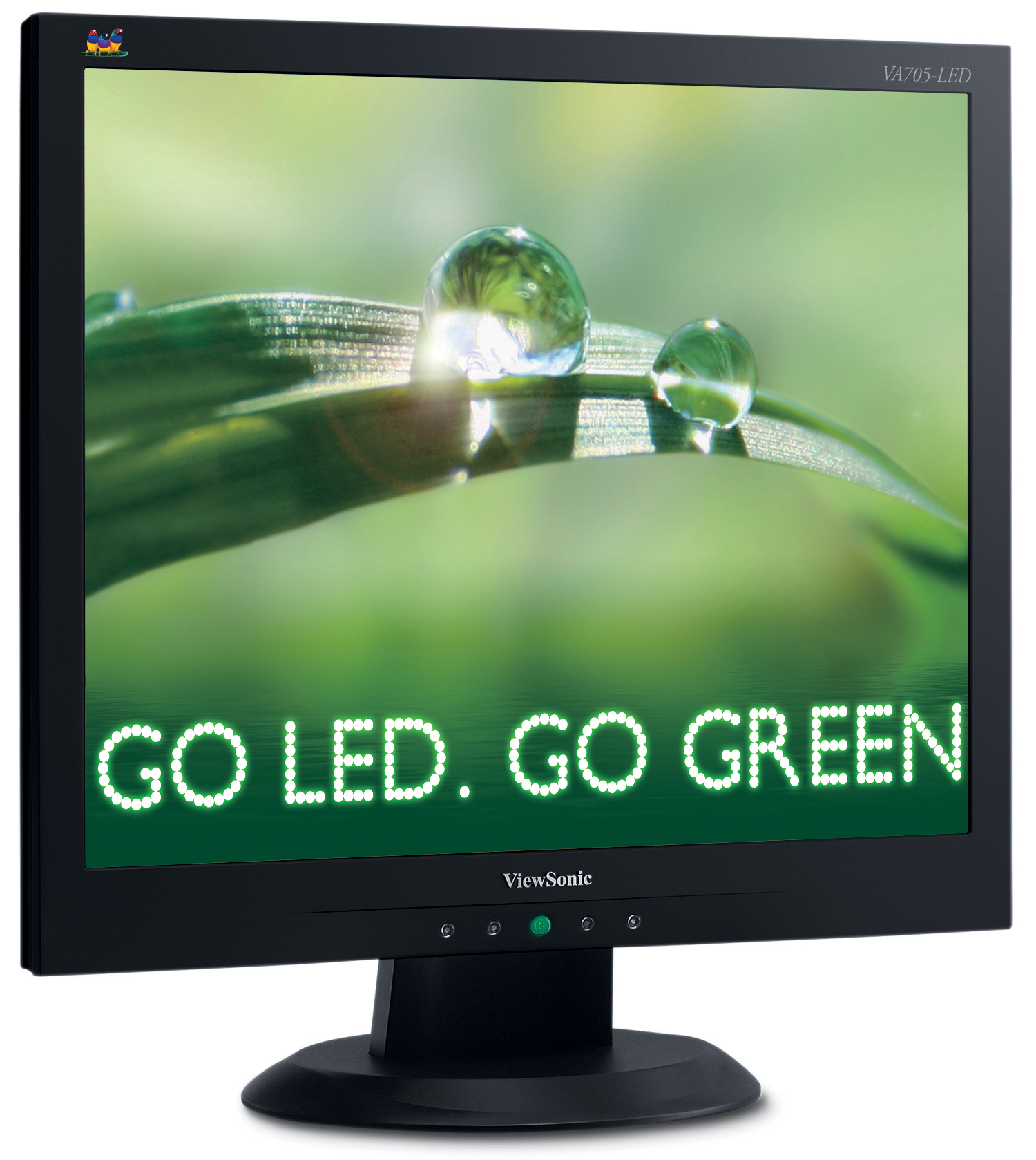

VA705-LED
Product Description
ViewSonic's 17" LED display, the VA705- LED, is a professionally built monitor for government and corporate applications while featuring a small size and a SXGA 1280 x 1024 resolution allowing for a more pleasant and efficient working environment. This Energy Star® certified display comes equipped with a long-lasting and highly efficient power-saving LED backlight as well as ViewSonic’s exclusive ECO Mode that reduces power consumption based on different lighting environment and minimizes maintenance effort and costs. Embedded dynamic contrast ratio technology not only enhances the dark and bright contrast of images but helps to produce an ultrahigh 10,000,000:1 ratio to deliver perfect image performance. Built-in sRGB color correction technology revives image color and captures the most realistic for consistent color performance for professional presentation, photographs, graphic designs or printings. The VA705-LED provides an eco-friendly solution for office applications and enormously boosts work efficiencies.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 17-inch
    Display Area: 17 inch
    Optimum Resolution: 1280x1024
    Contrast Ratio: 1,000:1 (typical), 10,000,000:1 (DCR)
    Brightness: 250 cd/m2 (typ)
    Viewing Angles: 170° / 160° (typ.)
    Response Time: 5ms
    Panel Surface: Anti-glare Type, 3H Hardness
    Light Source: 40,000 Hrs (Min.)
  • VIDEO INPUT
    Analog: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
    Frequency: Fh: 24-82KHz; Fv: 50-75Hz
    Sync: Separate Sync
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024
    Mac: MAC up to 1280 x 1024
  • CONNECTOR
    Analog: 15-pin Mini D-sub *1
    Power: Internal Power Board, 3-pin Plug (CEE22) *1
  • POWER
    Consumption: 20 W (Typ.) / 24 W (Max.)
  • OPERATING CONDITIONS
    Temperature: 0 - 40 (° C) 32-104(° F)
    Humidity: 10%-90% (non-condensing)
  • DIMENSIONS
    Physical: 379mm (width) x 400mm (height) x 210mm (depth)
  • WEIGHT
    Net: 2.9 kg
  • WALL MOUNT
    100mm x 100mm
  • PACKAGE CONTENTS
    Power Cable *1, D-Sub *1, Quick Start Guide *1, ViewSonic Wizard CD-ROM *1
