Key Features
  • 4,000 ANSI Lumens offering clear images in any environment​
  • 0.616 Short throw ratio for minimal space consumption​
  • Up to 300" ultra large screen with lower cost-per-inch​​
  • Easy and flexible connection: dual HDMI ports, USB Type-A port​
  • Convenient software updates for projectors via USB connection​

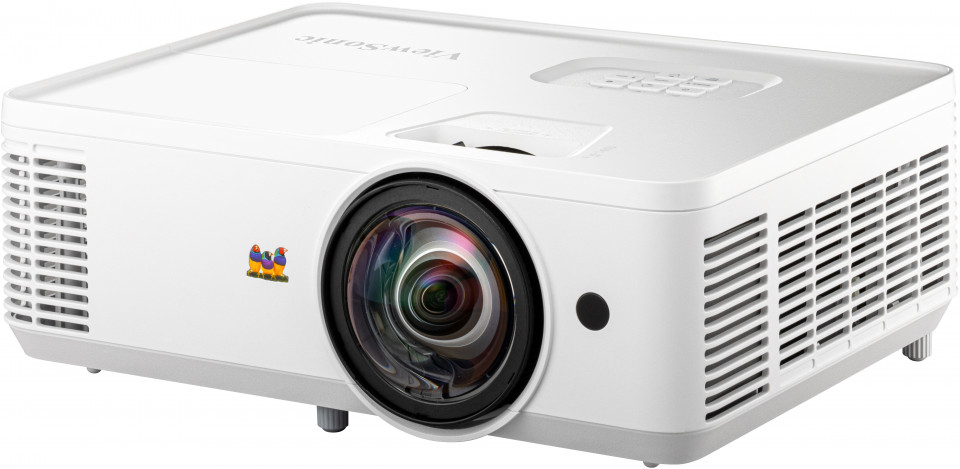

PS502X
Product Description
The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1024x768
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 15000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lens: F=2.7, f=7.15mm
    Projection Offset: 130%+/-10%
    Throw Ratio: 0.616
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-300"
    Throw Distance: 0.75m-3.76m
    (77"@0.96m)
    Keystone: +19°/-19° (V)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 25dB
    Input Lag: 33.2ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 16W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 295W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.87kg
    Gross Weight: 4.08Kg

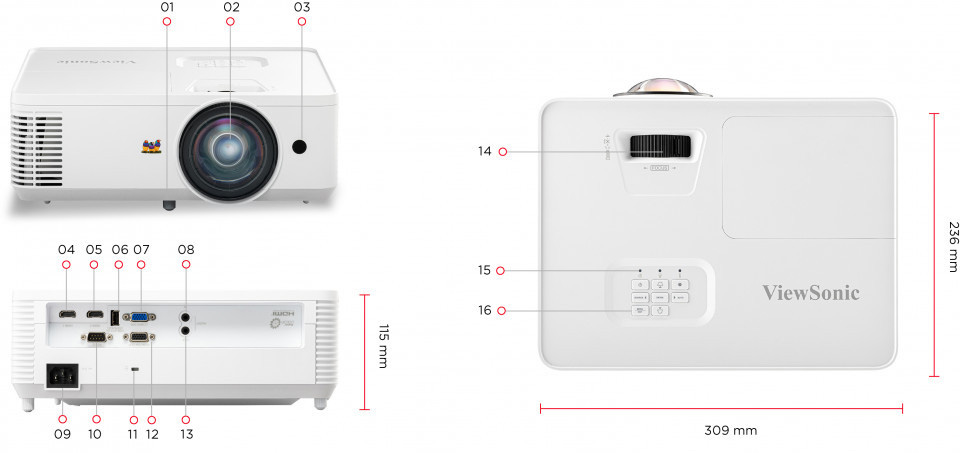

    Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
    Packing Dimensions: 400x337x168mm
    OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Lens Cover: Yes
    Air Filter: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-128
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-305
    PJ-WMK-007
    Carry Bag: PJ-CASE-008
