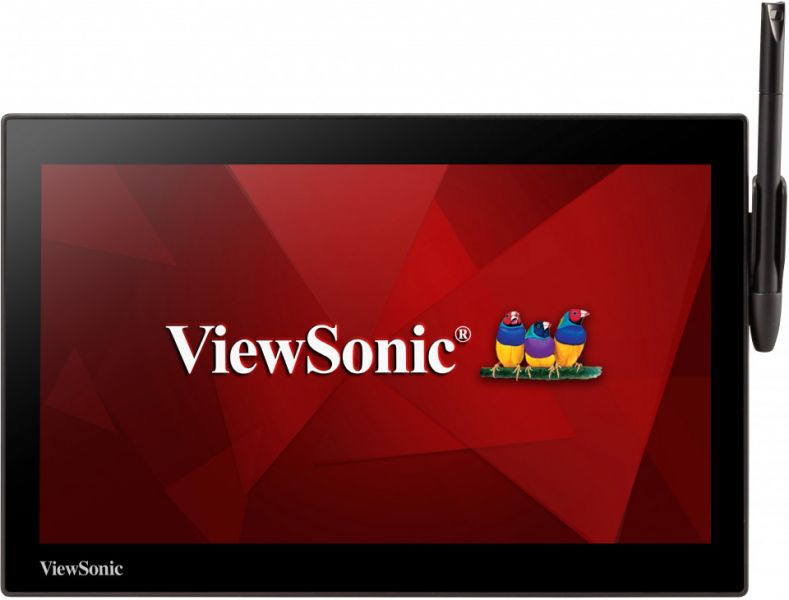

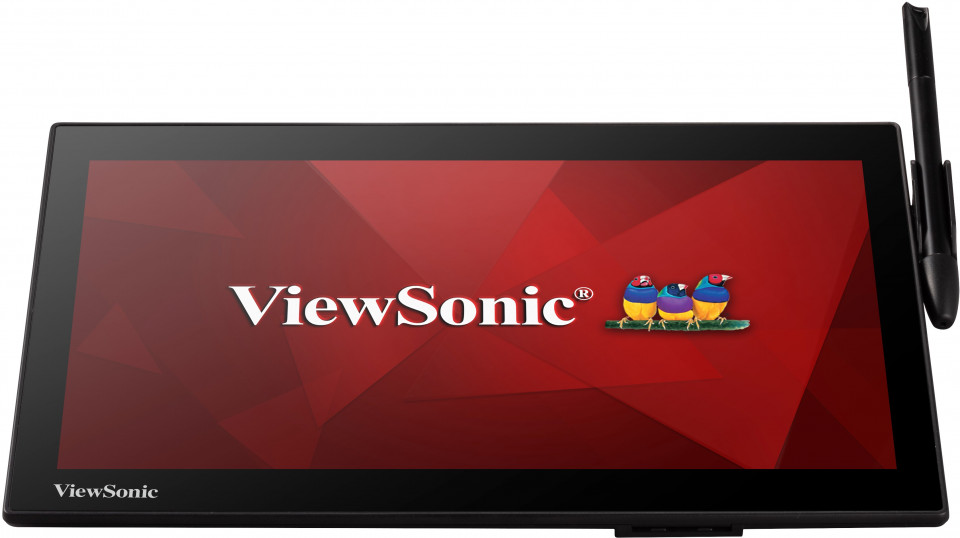

PD1213
A perfectly suited for efficient e-document workflow
- Implemented antimicrobial technology on pen and housing
- High Performance and e-Signature precision with 2048 pen pressure
- Ergonomic design, VESA-compliance, and Kensington lock security
- Windows® compatible and support e-Signature software
- 8H tempered glass with anti-scratch, anti-glare, and anti-fingerprint
- Ergonomic design in portrait and landscape mode
OVERVIEW
ViewSonic PD1213 is an ideal solution for optimizing user experience with streamlined service via Kiosk solution. 11.6 - inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and signed documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.A verified 99.9% antimicrobial solution
A verified 99.9 % antibacterial solution have been tested by SGS.Antibacterial technology implemented across all aspects of our product line including the pen, housing.*Option by request
A superior and intuitive handwriting experience

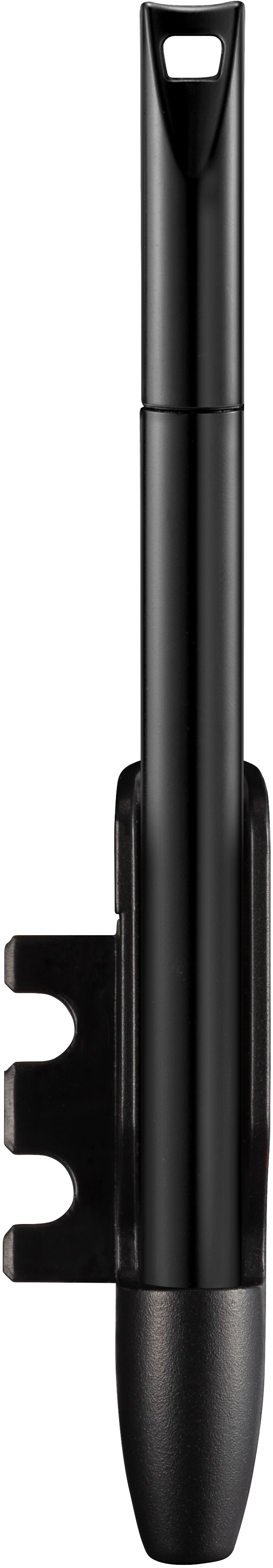

ViewSonic pen display delivers intuitive and accurate handwriting with 2048 levels of pen pressure sensitivity.The 250 pps response rate produces written text and highlighting on the screen without delays.
Multi-Touch Screen
The 10-points capacitive touch screens supports intuitive gesture input like zoom, scroll.

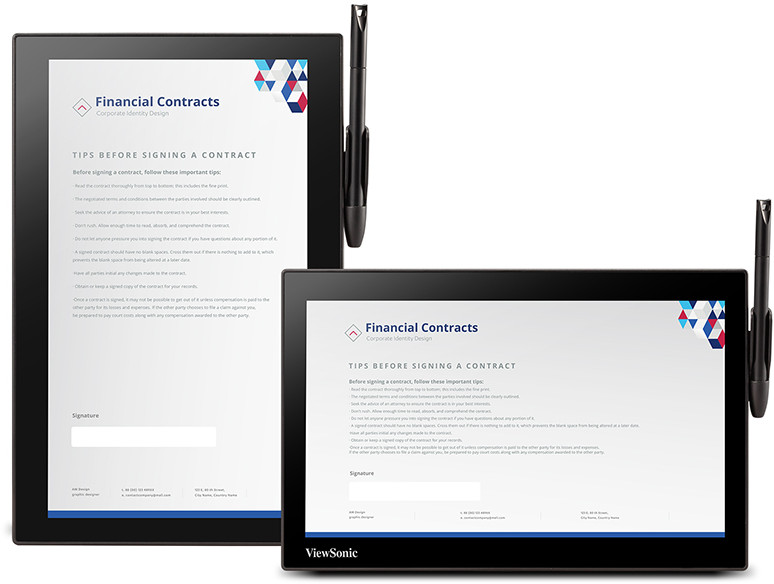

Ergonomic design for comfortable working

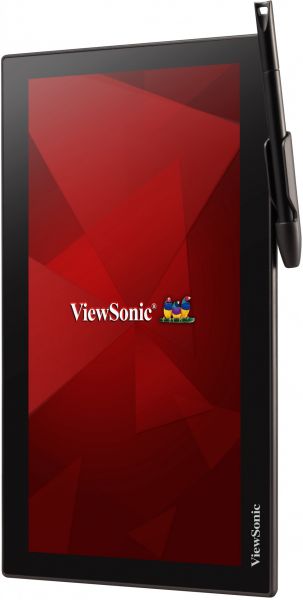

PD1213 can be displayed in portrait and landscape mode, making it easier for the user to view and signed documents.

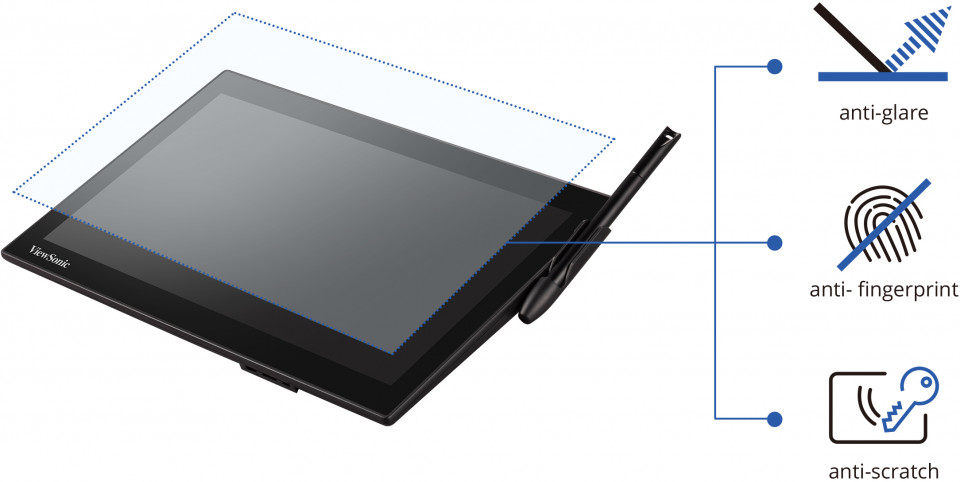

Outstanding durability surface
Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.

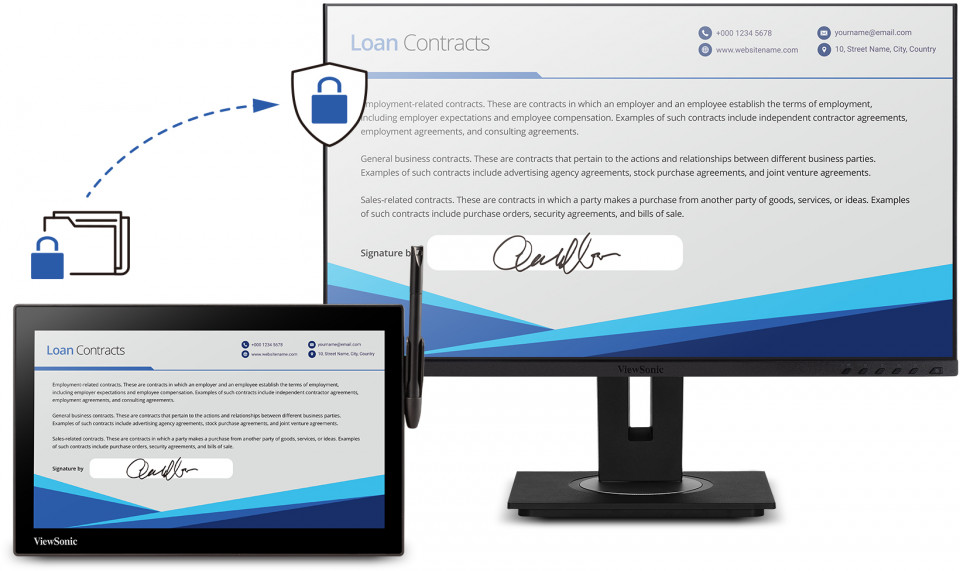

Secured Encryption
Each signature signed on the pen display undergoes a hardware and software based encryption. All data is protected according to RSA2048 & AES256,the highest industry standards.*Option by request

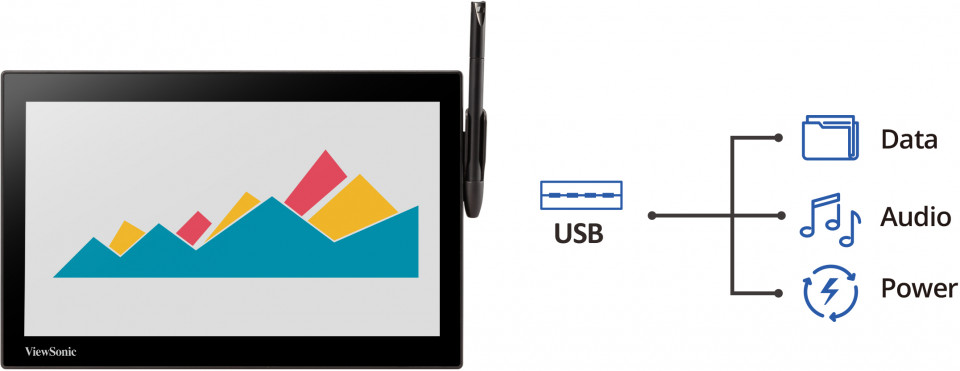

One Cable Solution
With an integrated USB port to connect to a PC or laptop for data transmission, managing and storing your information is fast, easy and secure. USB cable supports sufficient power supply and ensures stable data transmission, providing simple customer-oriented solutions for everyday use.SPECIFICATIONS
- LCD PANELDisplay Area: 256.32 x 144.18 mm (11.6" TFT LCD)
Optimum Resolution: 1920 x 1080 pixels
Brightness: 200 cd/m2
Contrast Ratio: 1000:1
Backlight: LED Light-Bar
Viewing Angles: H:170° (85°/ 85°) V:170° (85°/ 85°)
Panel Surface: 8H tempered glass - CONNECTORUSB: Micro USB2.0
- TOUCHTechnology: EMP Technology
Digitizer Resolution: 5080 LPI
Writing Response: 250 PPS
Accuracy: +/- 0.5mm(center)
Pressure Level: 2048 levels

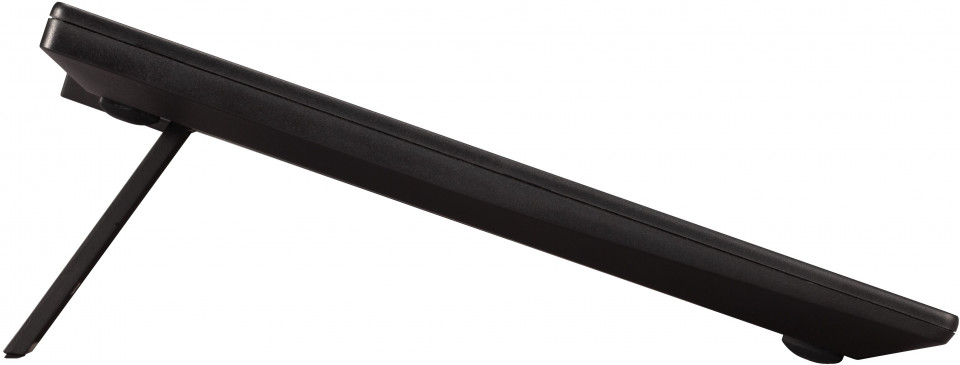

- ERGONOMICSTilt: Portrait : 0/ 15°/ 20°
Landscape: 0/ 9°/ 13° - COMPATIBILITYPC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request) - POWERVoltage: USB 5V
Consumption: 6.98W (Typ.)/ 7.63W (Max.) - OPERATING CONDITIONSTemperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-Condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 287.0 X 185.6 X 14.3 mm
Box (in / mm): 350.0 X 273.0 X 76.0 mm - WEIGHTNet (lb / kg): 0.72 kg
Gross (lb / kg): 1.15 kg - REGULATIONSCE/ FCC/ BSMI
- WARRANTY1 Year
- WHAT'S IN THE BOX1. PD1213 Pen Display x 1
2. USB 2.0, 2 in 1 Y-cable (Micro USB to Type A x 2) x 1
3. EMP-001 Pen x 1
4. Replacement Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power Adapter 5V/2A x 1
9. Quick Start Guide x 1
