VG2439Smh

24" Ergonomic Business Monitor

SuperClear® technology
HDMI, DisplayPort and VGA inputs
ViewMode technology
Flicker-Free and Blue Light Filter
Full HD 1080p resolution

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.6ms
Response Time (GTG w/OD): 6.6ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 8 certified; macOS tested
Mac® Resolution (min): 1920x1080

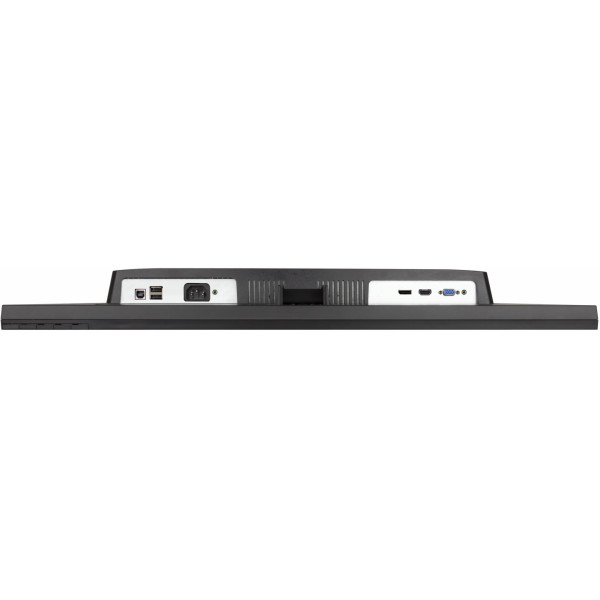

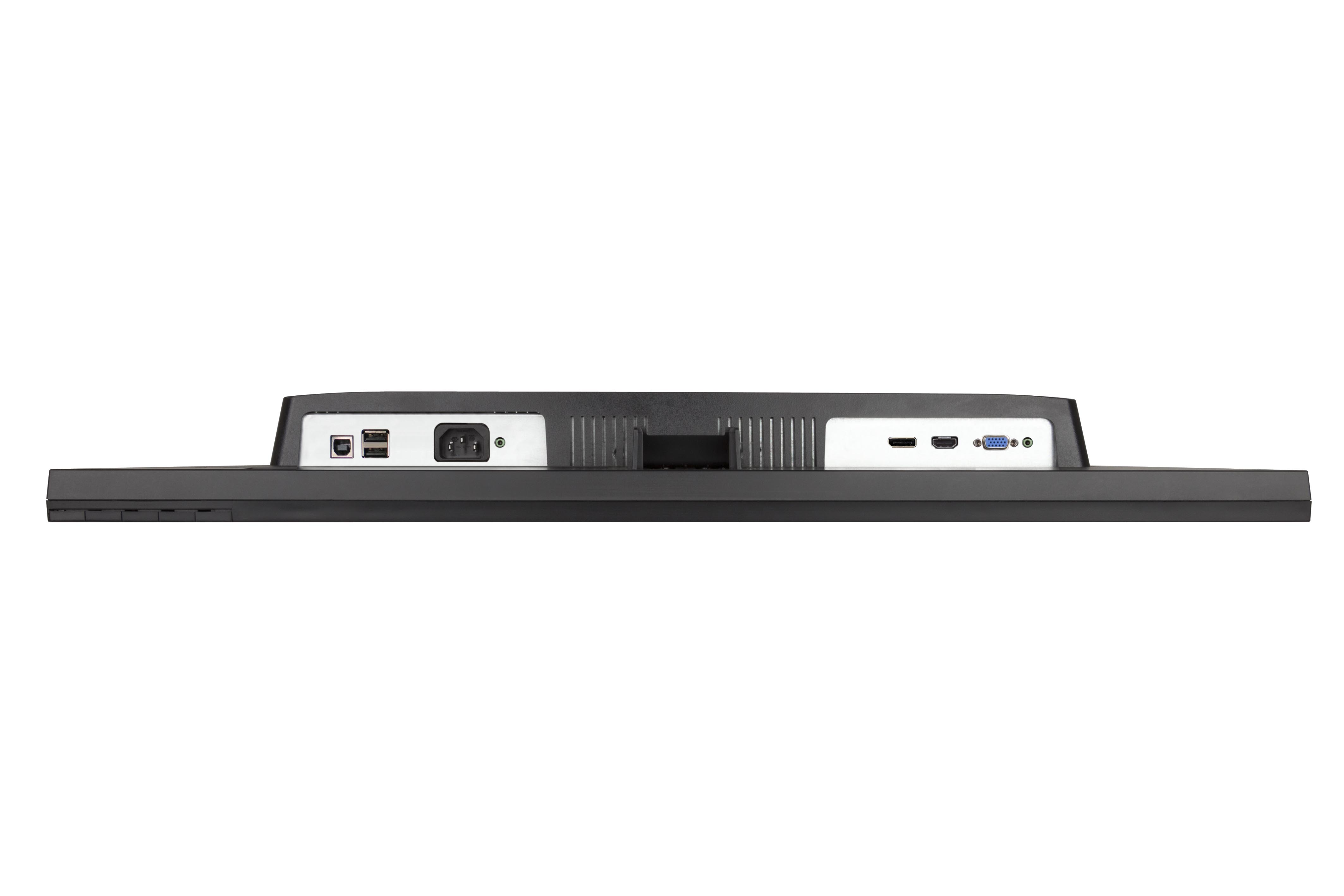

Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.3: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 16W
Eco Mode (optimized): 19W
Consumption (typical): 21.5W
Consumption (max): 23W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.3), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Height Adjust (mm): 135
Swivel: 360º
Tilt (Forward/Back): -5º / 20º
Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 11.4
Net Without Stand (lbs): 8.2
Gross (lbs): 15.3
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 3.7
Gross (kg): 6.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 25 x 20 x 7.5
Physical (in.): 22.1 x 17.13~22.45 x 9.4
Physical Without Stand (in.): 22.1 x 13.1 x 2.3
Dimensions (metric) (wxhxd)
Packaging (mm): 634 x 508 x 190
Physical (mm): 560 x 435.2~570.2 x 240
Physical Without Stand (mm): 560 x 333 x 58
General
PACKAGE CONTENTS: VG2439SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
