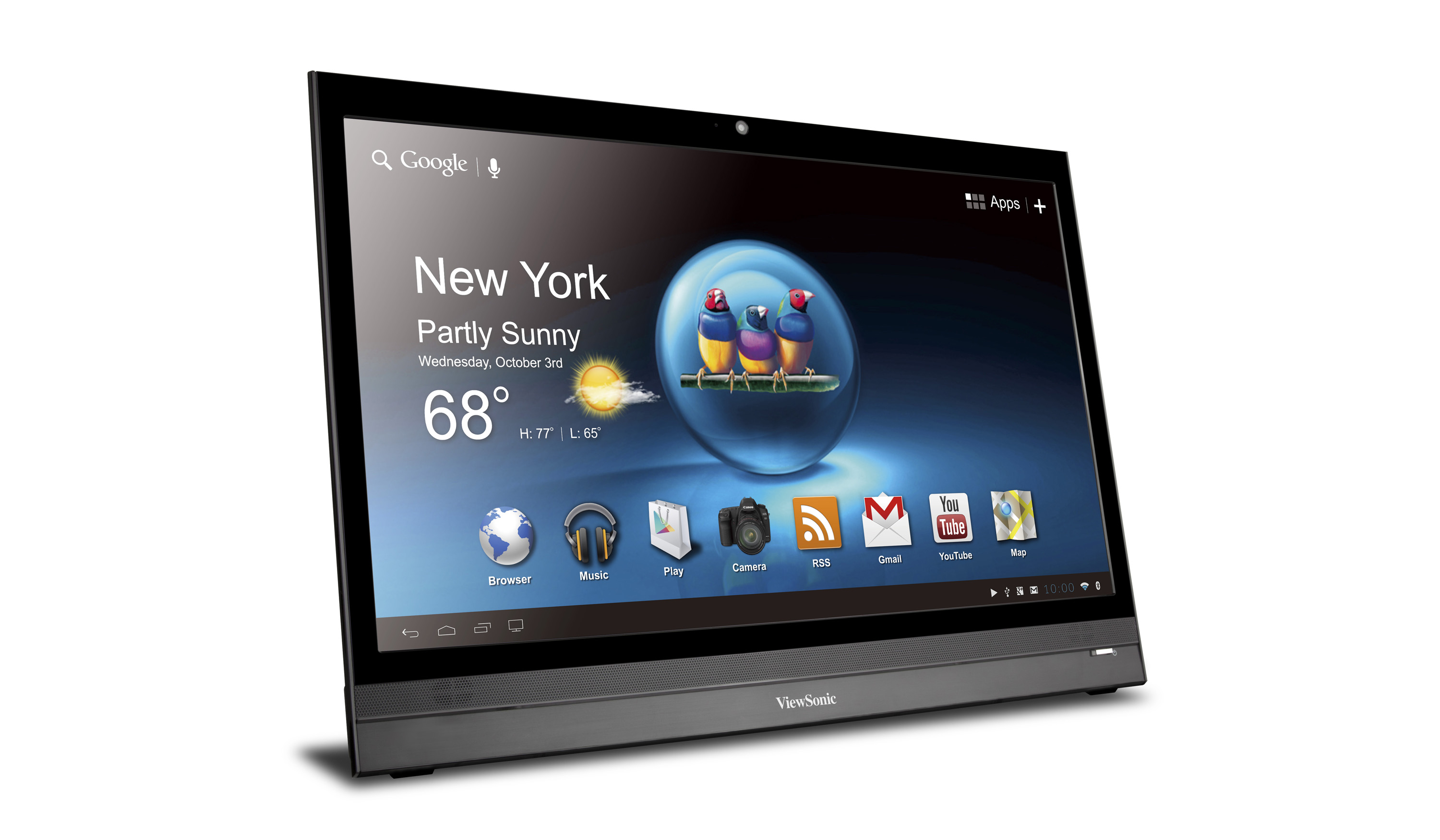

ViewSonic VSD220 22" (21.5" viewable) 1080p LED Smart Display. Endless Possibilities, One Smart Display.

Key Features

Product Description

PC-less computing is at your fingertips with the ViewSonic® VSD220 22" (21.5" viewable) smart display with its large,1920x1080 Full HD dual point optical touch screen. Perfect for surfing the web, watching movies and keeping up with friends thanks to Texas Instruments® fast Multicore OMAP Processor and Android™ 4.0 Ice Cream Sandwich. Versatile connectivity options include micro HDMI ®, 3 USB ports (2 Type A and 1 micro USB), micro SD slot, LAN (RJ45), headphone jack, and 1.3 megapixel webcam with integrated microphone for video chatting. Wireless and Bluetooth connections provide instant access to transfer data, documents, and multimedia files. The VSD220 can also operate as a 22" (21.5" viewable) full HD touch display via HDMI and USB connections for office work, web browsing and hands-on gaming. Integrated speakers with SRS 3D Technology® complete the package for your immersive multimedia adventure.

Visit Us

www.viewsonic.com

SYSTEM

CPU Processor:	TI OMAP 4430, Dual-Core ARM® Cortex-A9, 1GHz
Operating System:	Android 4.0 Ice Cream Sandwich
System Memory:	LPDDR2 1GB
Storage Memory:	8GB (eMMC4.4)
Internal MIC:	Echo cancelling

DISPLAY

Type:	22" (21.5" viewable) Wide Color TFT Active Matrix LED
Display Area:	18.8" horizontal x 10.6" vertical; 21.5" diagonal
Optimum Resolution:	1920x1080
Backlight Life:	30,000hrs (min.)
Contrast Ratio:	1000:1 (typ.)
Viewing Angles:	170º horizontal, 160º vertical

MEMORY

RAM: 1G

FLASH: 8G
INTERNET CONNECTION

Wireless: WiFi 802.11 b/g/n + Bluetooth V2.1
INPUT/OUTPUT

USB: Type A (x2) and micro USB (x1)

Speakers: 1.5-watt (x2) with SRS 3D Technology

Front Camera: 1.3MP – HD 720p
COMPATIBILITY

PC: PC compatibles (from VGA up to 1920x1080 non-interlaced)
ERGONOMICS

Tilt: 15°~70°
OPERATING CONDITIONS

Temperature: 32–104º F (0–40º C)

Humidity: 20–90% (non-condensing)
DIMENSIONS(W X H X D)

Physical: 20.19 x 13.9 x 0.86 in. / 512.8 x 353 x 21.9 mm

Packaging: 23.7 x 17.1 x 5.0 in. / 602 x 435 x 127 mm
WEIGHT

Net: 10.57 lb. / 4.8 kg

Gross: 12.78 lb. / 5.8 kg
WALL MOUNT

VESA®: 100 x 100 mm

USB:	Type A (x2) and micro USB (x1)
Speakers:	1.5-watt (x2) with SRS 3D Technology
Front Camera:	1.3MP – HD 720p

Temperature:	32–104º F (0–40º C)
Humidity:	20–90% (non-condensing)

Physical:	20.19 x 13.9 x 0.86 in. / 512.8 x 353 x 21.9 mm
Packaging:	23.7 x 17.1 x 5.0 in. / 602 x 435 x 127 mm

RAM:	1G
FLASH:	8G

Net:	10.57 lb. / 4.8 kg
Gross:	12.78 lb. / 5.8 kg
