Key Features
  • Hardware colour calibration
  • Frameless bezel
  • Ergonomic stand with auto pivot
  • Delta E < 2 colour accuracy
  • Pre-calibrated uniformity correction

VP2768
Product Description
Engineered to deliver unmatched color accuracy crucial for professional applications, the ViewSonic® VP2768 WQHD monitor displays your work with the vivid and lifelike color it deserves. With a SuperClear® IPS panel and a sleek frameless design, the VP2768 provides a near-seamless viewing experience ideal for multi-monitor setups. For simple, single-cable daisy chaining of multiple monitors, the VP2768 is equipped with future-proof DisplayPort technology, in addition to HDMI. To ensure precise, uniform color, each of our monitors is factory calibrated to deliver an amazing Delta E<2 value for superior color accuracy. An integrated color uniformity function ensures consistent chromaticity across the screen, while a 14-bit 3D look-up table generates a stunningly smooth palette of 4.39 trillion colors. Add to that 6-axis color adjustment functionality, and this monitor provides the ultimate color processing capability for professional applications. What’s more, an advanced ergonomic design delivers customized comfort for increased productivity. Hardware calibration is also available with the optional ViewSonic Colorbration Kit, which allows you to quickly and easily calibrate the monitor for photography, graphic design, content creation, and other color-critical applications.

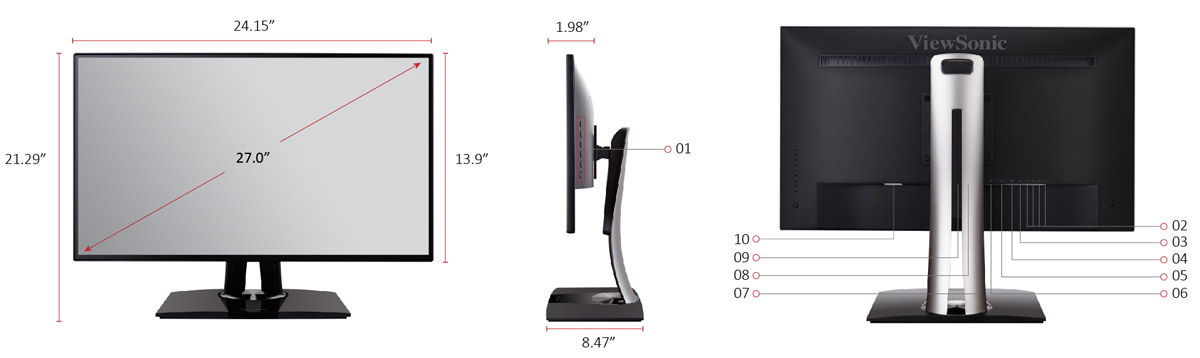

  1. Menu Controls
  2. USB Down Stream
  3. USB Up Stream
  4. Audio Out
  5. DP Out
  6. DisplayPort
  7. Mini DP
  8. HDMI
  9. HDMI
  10. AC In
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 27
    Viewable Area (in.): 27
    Panel Type: IPS Technology
    Resolution: 2560 x 1440
    Resolution Type: QHD (Quad HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    Brightness: 350 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: Adobe RGB: 84% size / 78% coverage (Typ) DCI-P3: 83% size / 83% coverage (Typ) EBU: 112% size / 98% coverage (Typ) REC709: 113% size / 100% coverage (Typ) SMPTE-C: 122% size / 100% coverage (Typ) NTSC: 80% size (Typ) sRGB: 113% size / 100% coverage (Typ)
    Pixel Size: 0.233 mm (H) x 0.233 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 2560x1440
    Mac® Resolution (max): 2560x1440
    PC Operating System: Windows 10 certified; macOS tested
    Mac® Resolution (min): 2560x1440
  • CONNECTOR
    USB 3.2 Type A Down Stream: 4
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 2
    DisplayPort: 1
    DisplayPort Out: 1
    Mini DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • POWER
    Eco Mode (Conserve): 22.5W
    Eco Mode (optimized): 26.5W
    Consumption (typical): 32W
    Consumption (max): 35W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 90KHz
    Frequency Vertical: 59 ~ 61Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), PCI-E - mini DisplayPort (v1.2)
  • ERGONOMICS
    Height Adjust (mm): 130
    Swivel: 120º
    Tilt (Forward/Back): -5º / 21º
    Pivot (Right/Left): 90º / 90º
  • WEIGHT (IMPERIAL)
    Net (lbs): 15.2
    Net Without Stand (lbs): 9.7
    Gross (lbs): 21.2
  • WEIGHT (METRIC)
    Net (kg): 6.9
    Net Without Stand (kg): 4.4
    Gross (kg): 9.6
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 28.3 x 18.1 x 10.6
    Physical (in.): 24.1 x 16.15~21.27 x 8.5
    Physical Without Stand (in.): 24.1 x 13.9 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 720 x 460 x 268
    Physical (mm): 613 x 410.43~540.43 x 215
    Physical Without Stand (mm): 613 x 353 x 50
  • GENERAL
    PACKAGE CONTENTS: VP2768 x1, 3-pin Plug (IEC C13 / CEE22) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
