Key Features

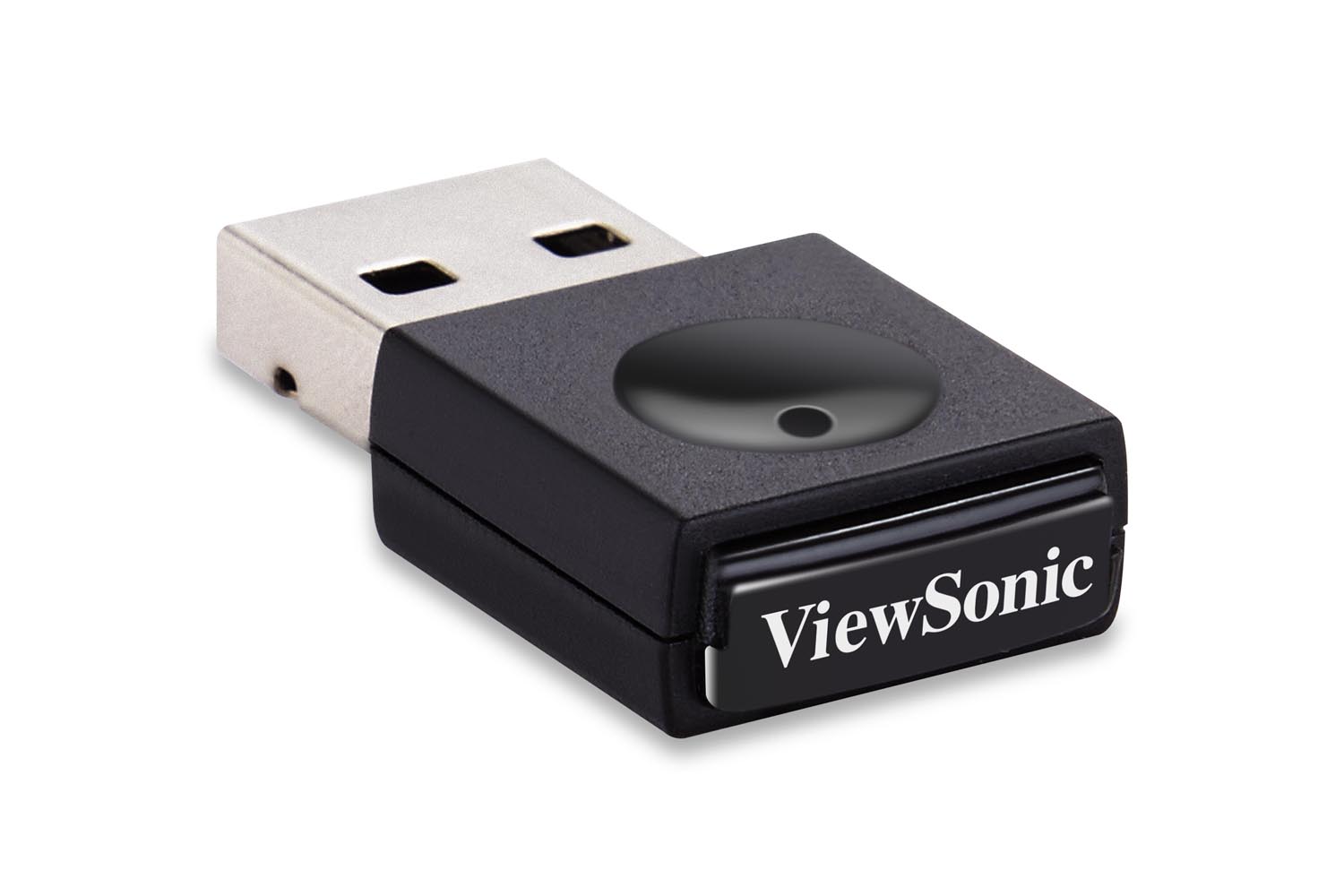

PJ-WPD-200
Product Description
The ViewSonic® PJ-WPD-200 USB wireless adapter provides added convenience and flexibility to your projection needs. With the PJ-WPD-200, you can wirelessly project from Windows® or Mac laptops, and you can use your Android™ or iOS devices to wirelessly stream content to a projector. Equipped with 2T2R MIMO, and support for up to 300Mbps, the PJ-WPD-200 delivers high-speed and robust data transmission via the IEEE 802.11b/g/n protocol. In addition, the portable and compact design of the PJ-WPD-200 provides an easy way for users to wirelessly connect their projectors. The PJ-WPD-200 is compatible with USB 2.0, most laptops, and select ViewSonic projectors equipped with ViewSync™ Advanced Connect™ Technology (ACT), as well as select ViewSonic PLED models.
Visit Us
  • www.viewsonic.com
  • DATA TRANSFER RATE
    maximum of 300M bps
  • MODULATION METHOD
    BPSK/ QPSK/ 16-QAM / 64-QAM / DBPSK/ DQPSK/ CCK
  • FREQUENCY BAND
    2.4GHz ISM Band
  • SPREAD SPECTRUM
    IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division M ultiplexing)
  • RF OUTPUT POWER (TOLERANCE ± 2DBM)
    13dBm@11n, 15dBm@11g, 17dBm@11b
  • OPERATION MODE
    Ad hoc, Infrastructure
  • RECEIVER SENSITIVITY
    11M bps -80dBm@8%,54M bps -70dBm@10%,300M bps -64dBm@10%
  • OPERATION RANGE
    Indoor up to 100 meters, Outdoor up to 280 meters
  • LED
    Blue
  • OS SUPPORT
    Window XP/7/8, MAC
  • SECURITY
    64 bit/128 bit WEP, TKIP, AES, WPA, WPA2
  • INTERFACE
    USB 2.0
  • POWER
    Consumption: Transmit: 253 mA /Receive: 162 mA / Transmit+ Receive: 274 mA
  • OPERATING CONDITIONS
    Temperature: 14°F to 140°F (-10°C to 60°C)
    Humidity: 0% to 95% Non-Condensing
    Altitude: 0 to + 13123 ft
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 1.14 x 0.28 x 0.63/29 x 7 x 16
  • WEIGHT
    Net (oz /g): 0.13 / 3.70
  • WHAT'S IN THE BOX?
    The Top Level Assembly shall consist of : 1. Wireless Presentation Dongle PJ-WPD-200 2. Quick User Manual
