Key Features
  • Auto Power Off
  • 22,000:1 contrast ratio
  • SuperColor™ Technology
  • 5 colour modes
  • Vertical Keystone

PA503SB
Product Description
The ViewSonic PA503SB offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3800 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503SB reduces power consumption and extends the lamp life by up to 15,000 hours.

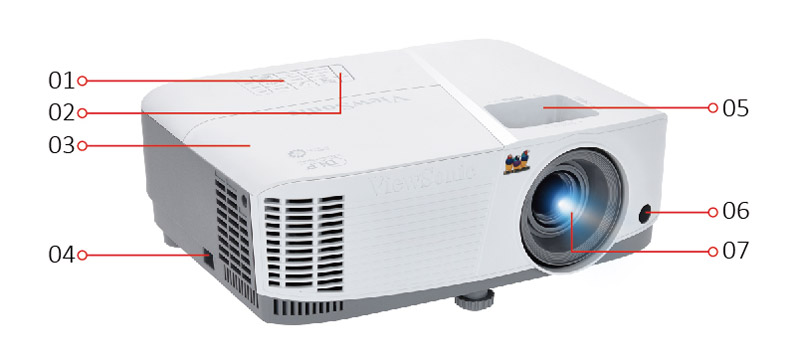

  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens

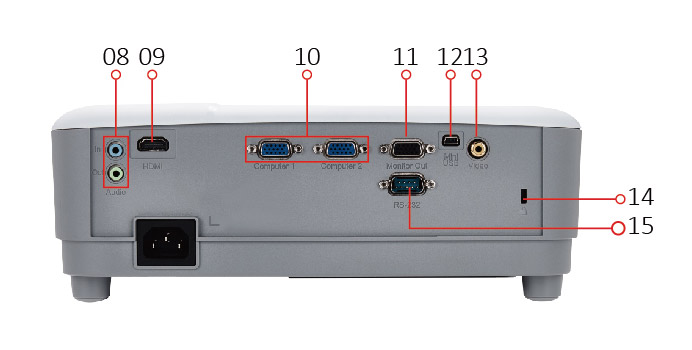

  8. Audio in/out
  9. HDMI
  10. Dual VGA
  11. VGA out
  12. Mini USB
  13. Video
  14. Kensington® Lock Slot
  15. RS232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 800x600
    DC type: DC3
    Brightness: 3800 ANSI lumens
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light source life (Nor/SuperEco): 5000/15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1 mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96~2.15
    Image size: 30" - 300"
    Throw Distance: 1.19m-13.11m(100" @3.98m)
    Keystone: ±40° (Vertical)
    Optical Zoom: 1.1x
    Audible Noise (Eco): 27dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (share with component): 2
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI: 1 (Back)
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 2W
  • CONTROL
    RS232: 1
    USB type mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 260W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.2kg
    Dimensions (WxDxH) w/adjustment foot: 294x218x110mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Remote Control: 1
    QSG & CD: QSG: 1 / CD: NA
  • OPTIONAL ACCESSORY
    Air Filter: RSPL
