Key Features
  • PCAP touch technology for fast and accurate touch response​
  • USB-C for instant plug-and-play connectivity via a single cable​
  • Ergonomic flexibility for optimal positioning in any task or setup​
  • Extended Windows Ink workspace for digital writing and design​
  • Compatible with all devices that support Microsoft Pen Protocol

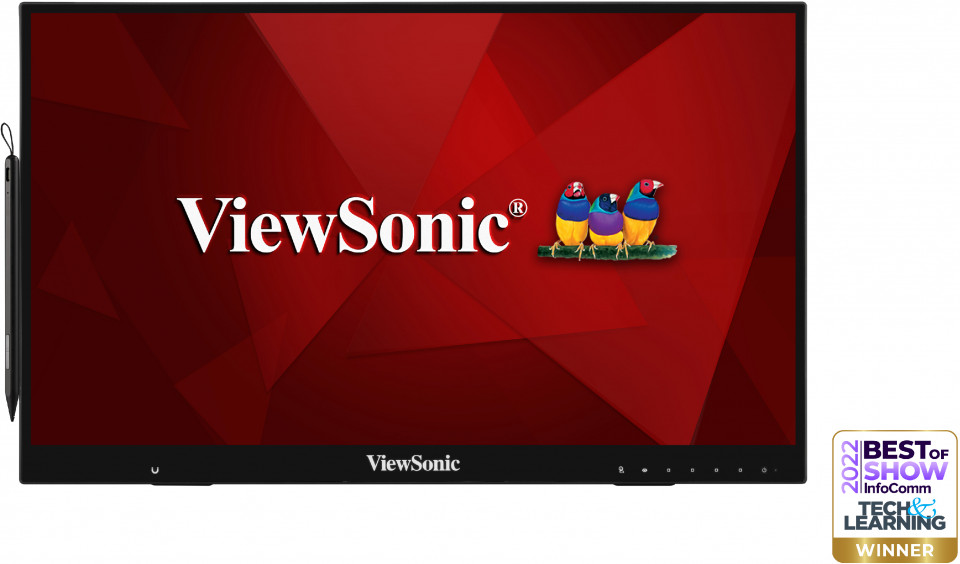

ID2456
Product Description
Expand your workspace with the ID2456, a 24” Full HD touch monitor designed to break free from the limitations of a mouse and give you the freedom of working with a pen in hand. The MPP2.0 active pen combines with PCAP technology and Palm Rejection to deliver pinpoint accuracy when writing or drawing so you can optimise presentations, collaboration, and communication with the ability to freely capture and convey ideas in digital form. The multifunctional display covers 120% sRGB color gamut for a stunning viewing experience supported by advanced eye-care technology and ergonomic flexibility. Complete with seamless connectivity via USB-C and compatibility with all devices that support Microsoft Pen Protocol, the ID2456 adds a natural, intuitive, and hands-on experience to your personal workflow.​
  1. Menu Control
  2. HDMI in
  3. USB-C
  4. VGA
  5. HDMI out
  6. Earphone
  7. Audio in
  8. VESA Compatible(Wall Mount 100 x 100mm)
  9. Internal Speakers
  10. USB-A
  11. USB-B
  12. AC in
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 88% size (Typ)
    sRGB: 120% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Anti-Glare, Hard Coating (6H)
    Cover Glass Thickness: 2mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    HDMI 1.4 Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 3Watts x2
  • POWER
    Eco Mode (Conserve): 25.72W
    Eco Mode (optimized): 29.22W
    Consumption (typical): 31W
    Consumption (max): 32W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, Type C: 15 ~ 86KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, Type C: 24 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 15º / 70º
  • WEIGHT (IMPERIAL)
    Net (lbs): 11
    Net Without Stand (lbs): 11
    Gross (lbs): 15
  • WEIGHT (METRIC)
    Net (kg): 5
    Net Without Stand (kg): 5
    Gross (kg): 6.8
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 23.8 x 15.9 x 4.9
    Physical (in.): 21.44 x 13.11 x 1.7
    Physical Without Stand (in.): 21.44 x 13.11 x 1.7
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 605 x 405 x 125
    Physical (mm): 544.6 x 333.1 x 43.3
    Physical Without Stand (mm): 544.6 x 333.1 x 43.3
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, BIS
    PACKAGE CONTENTS: ID2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
