Key Features

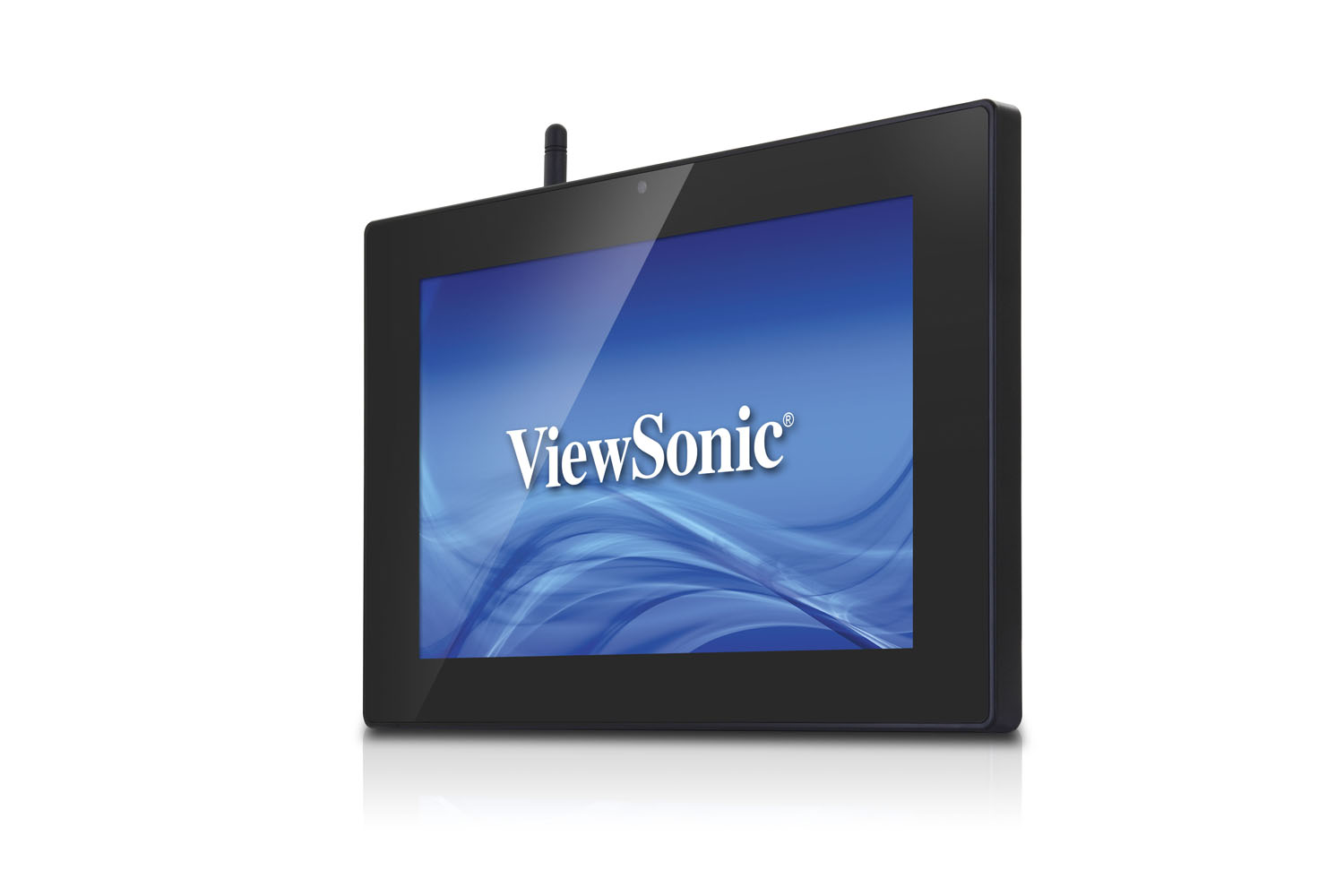

EP1032r-T
Product Description
The ViewSonic EP1032r-T is a 10’’ multimedia all-in-one interactive digital ePoster. It delivers eye-catching touch-interactive commercial messaging at retail POS, hotel lobbies and front desks, conference and exhibition venues, and other high-visibility locations. The EP1032r-T features wireless b/g/n network and LAN connectivity for easy loading of content, and supports Power over Ethernet (PoE) for convenient one-wire installation. Multi-touch compatibility with HTML5 and SMIL formats delivers a 2-way interactive platform for dynamic, customized content. Its built-in media player, 4GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. Bundled with Signage Manager Express software, the EP1032r-T effectively delivers customized messaging to target audiences. With VESA-mount compliance, the EP1032r-T is installation-ready for any high-visibility, high-traffic location.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 10.1"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 219.6(H) x 131.76(H)
    Aspect Ratio: 16:9
    Native Resolution: 1280 x 800
    Colors: 16.7M
    Brightness: 300 nits (typ.)
    Contrast Ratio: 700:1 Typ.
    Response Time: 25ms
    Viewing Angles: H = 150, V = 145 typ.
    Surface Treatment: AG coating
    Orientation: Landscape / Portrait
  • TOUCH
    Type/ Tech: Capacitive
    Touch Point: 7 touch for gesture
  • STORAGE
    on-board flash: 4GB
  • INPUT
    SD/SDHC: x1, (for expand storage)
  • OUTPUT
    HDMI: x1
    Audio: x1 Earphone Out
  • LAN
    RJ45: x1
  • USB
    Type A: x2, (for content loading, F/W upgrade, Key board, Mouse)
    Type B: x1, (for F/W troubleshooting)
  • SPEAKERS
    2W x 2
  • COMPATIBILITY
    HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
  • CONTROLS
    Multimedia: MPEG-1, MPEG-2, MPEG-4, VC-1/WMV9, JPEG, PNG, MPEG L2 audio, MP3, W3C HTML5, W3C SMIL 3.0 instructions
  • BUNDLE SOFTWARE
    Signage Manager Express
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: 12W (max.)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 75 x 75
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 5% ~ 85% non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (inch / mm): 10.94 x 7.32 x 1.57 / 278 x 186 x 40
    Packaging (inch / mm): 12.60 x 10.04 x 3.54 / 320 x 255 x 90
  • WEIGHT
    Net (lb / kg): 2.03 / 0.92
    Gross (lb / kg): 3.64 / 1.65
  • PACKAGE CONTENTS
    1. EP1032R-T ePoster 2. AC Adapter 3. Ethernet Cable 4. Standard 3.5mm to RCA AC cable 5. Display stand and screws 6. Hardware Quick Start Guide76. Software Quick Start Guide 8. Documentation CD
    *Actual content may differ from market to market
