Commercial Display
CDP4260-L
Key Features
Product Description

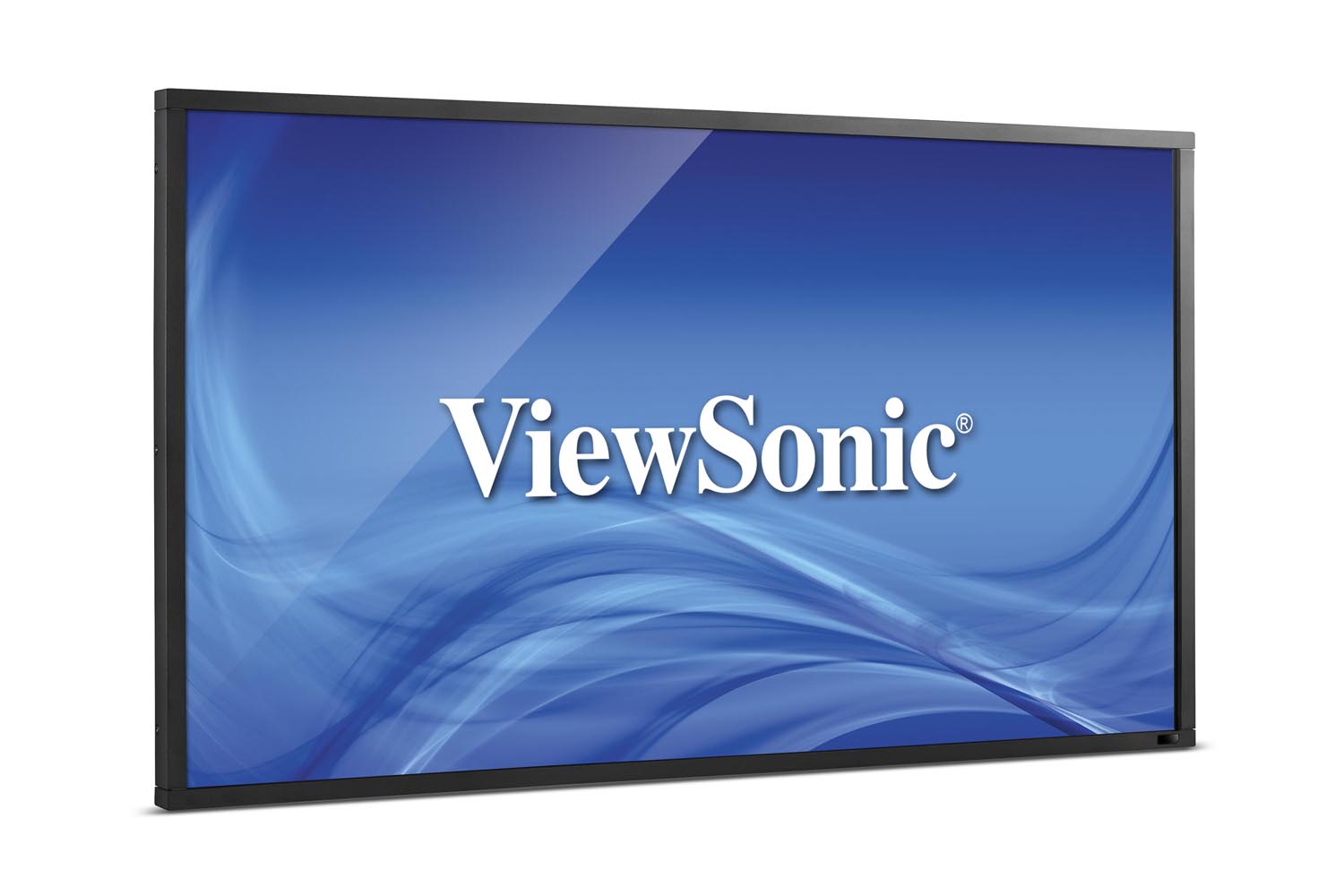

The ViewSonic CDP4260-L is a 42" (42" viewable) commercial LED display designed for use 24 hours a day, 7 days a week. The CDP4260-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP4260-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP4260-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP4260-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP4260-L an easy to-manage solution for 24/7 use.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 42" Type/Tech: TFT LCD Module with LED Backlight Display Area (mm): 930.24(H) x 523.26 (V) (42” diagonal) Aspect Ratio: 16:9 Native Resolution: 1920 x 1080 Colors: 1.07 Billion Brightness: 450 nits (typ.) Contrast Ratio: 1300:1 Typ. Response Time: 12ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours Typ. Surface Treatment: Hard coating (3H) Orientation: Landscape / Portrait -
INPUT
HDMI: x1 RGB / VGA: x1 DisplayPort: x1 DVI: x1 Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R) CVBS: x1 YPbPr: x1 RS232: x 1 IR Pass Thru: x1 -
OUTPUT
DVI: x1 Audio: x1 Shared RCA audio (L+R) RS232: x1 IR Pass Thru: x1 -
LAN
RJ45: x1 -
SPEAKERS
10Wx2 -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i, YPbPr: 480i, 480p,720p,1080i,1080p HDMI: 480i, 480p,720p,1080i,1080p DisplayPort: 480i, 480p,720p,1080i,1080p DVI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
SCREEN: Brightness, Contrast, Sharpness,Black Level, Tint, Color, Color Temperature, Gamma Selection, Noise Reduction, Film Mode, Picture Reset
Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset
SOUND: Balance, Treble, Bass, Audio Reset
PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset
Off Timer, Schedule, Data and Time, CONFIGURATION 1 Reset
Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, CONFIGURATION 2 Reset.
Power Save, Heat Status, Screen Saver, Side Border Color, CONFIGURATION 3 Reset
Input Change, Terminal Setting, Scan Conversion, Color System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset -
POWER
Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range Consumption: 120W (typ), 150W (max)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 200 x 200 / 400 x 200 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS
(W X H X D)Bezel width (B2B): 31.6 mm Physical (inch / mm): 38.0x23.6x15.7 / 965.8x601.4x400 (w/ Stand)
38.0x22.0x2.7 / 965.8x558.8x69 (w/o Stand)Packaging (inch / mm): 46.3x31.3x9.8 / 1178 x795x250 -
WEIGHT
Net (lb / kg): 40.26 / 18.3 (w/o Stand)
45.32 / 20.6 (w/ Stand)Gross (lb / kg): 53.02 / 24.1 -
PACKAGE CONTENTS
1. CDP4260-L display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable
*Actual content may differ from market to market
