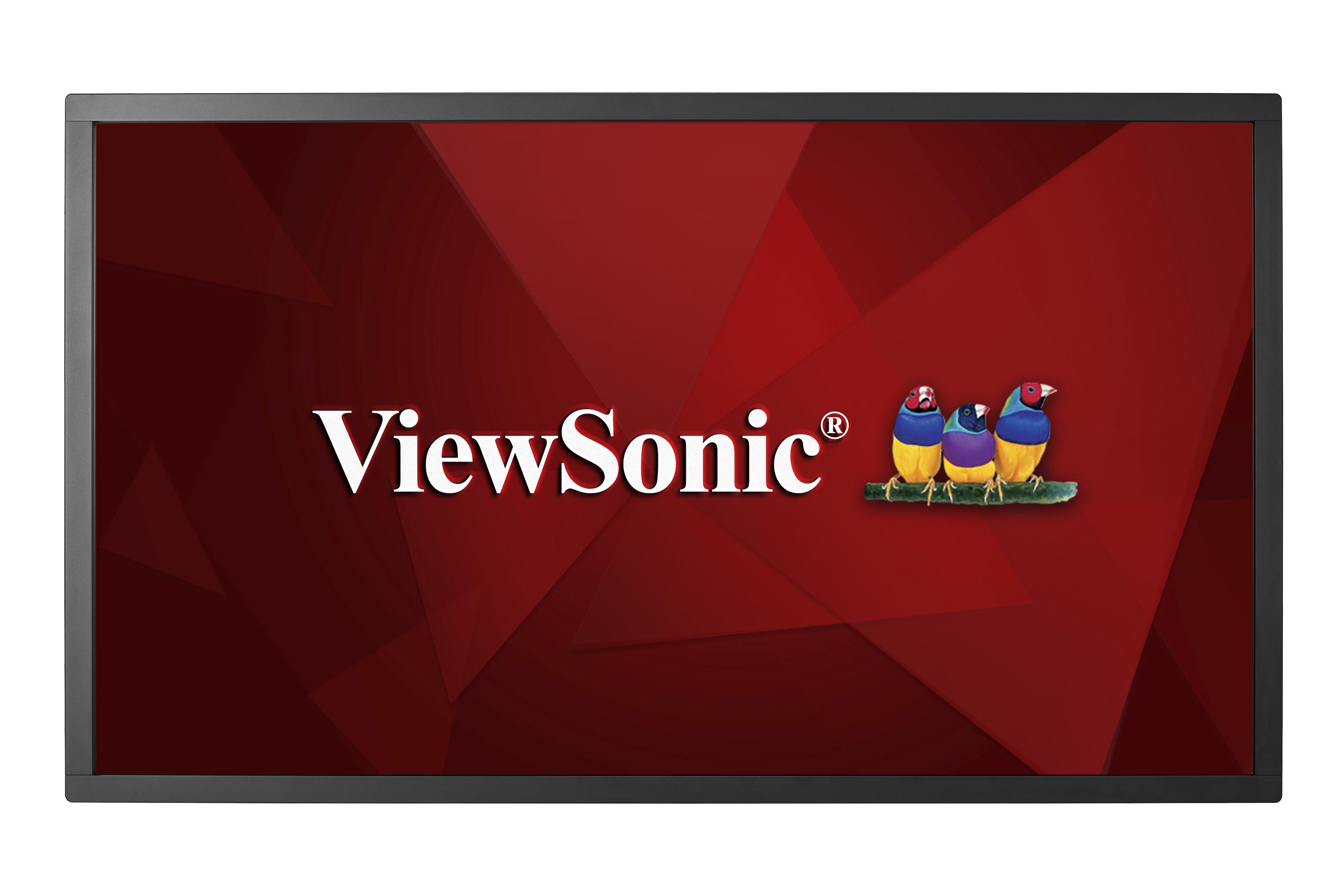

Commercial Display
CDM5500T
Key Features
- 24 hours a day 7 days a week operations
- Built-in Quad Core Media Player with 16GB Storage
- Embedded LAN
- Internal Scheduler
- Content Management Software
Product Description
Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this presenation display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.

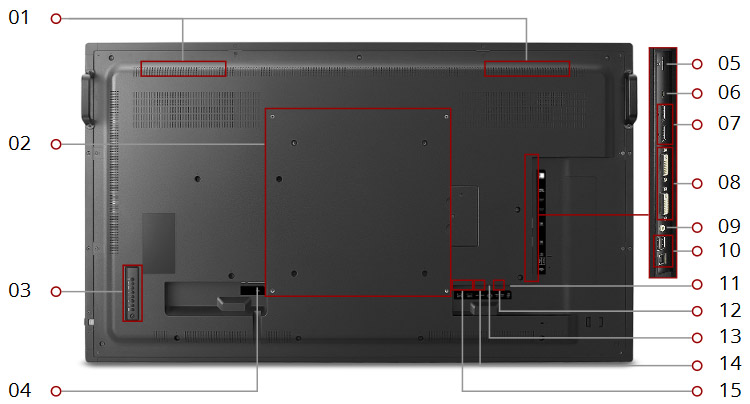

- Internal Speakers
- VESA® Compatible Wall Mount 400 x 400 mm
- Menu Controls
- AC In
- SD Reader
- Micro USB
- DisplayPort In/Out
- DVI-I In/Out
- Audio In
- USB 2.0 (Type A x2, Type B x1)
- Audio Out
- RS232 In/Out
- LAN
- IR In/Out
- HDMI x2
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 55'' (54.64" diagonal) Type/ Tech: IPS Display Area (mm): 1209.6 (H) x 680.4 (V) Aspect Ratio: 16:9 Resolution: 1920 x 1080 Colors: 16.7 M colors Brightness: 450 nits (typ.) Contrast Ratio: 1100:1 (typ.) Response Time: 12 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: ELED Backlight Life: 50,000 Hours (typ.) Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%) -
TOUCH
Type/ Tech: Infrared Touch Point: 10 Points -
INPUT
HDMI: x 2 (HDMI1.4) DisplayPort: x 1 DVI: x 1 Audio: x 1 RS232: x 1 SD/SDHC: Micro SD card slot (Up to 32GB) IR: x 1 -
OUTPUT
DisplayPort: x 1 DVI: x 1 RS232: x 1 IR: x 1 -
LAN
RJ45: x 1 -
USB
Type A: x 2 (Multi-media playback x 1, 5V/2A x 1) Type B: x 1 (Touch out) Micro USB: x 1 (Support USB OTG) -
AUDIO
Speaker: 10W x 2 -
BUILT-IN PC
Processor: Quad core A9, 1.6G Storage: eMMC 16G -
COMPATIBILITY
VGA: 480i, 480p,720p,1080i,1080p DVI: 480i, 480p,720p,1080i,1080p DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Consumption: Normal 76W, Max 143W -
ERGONOMICS
Wall Mount (VESA® ): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate) -
OPERATING CONDITIONS
Temperature (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait) Humidity: 20% ~ 80% non-condensing -

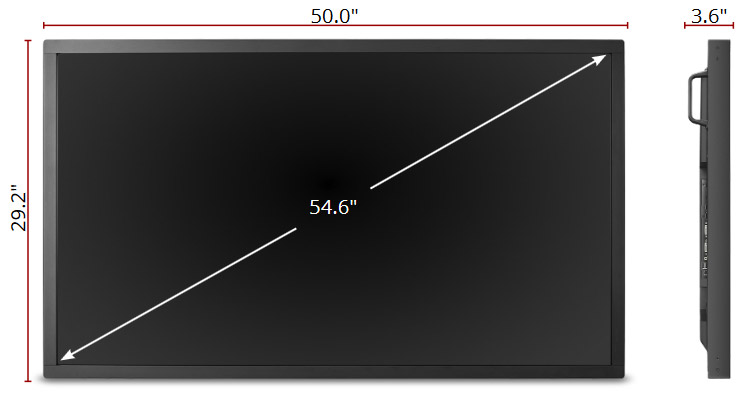

DIMENSIONS (W X H X D)
Physical (inch / mm): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400 Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64 Packaging (inch / mm): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280 -
WEIGHT
Net (lb / kg): 77.38 / 35.1 Net w/o Stand (lb / kg): 68.34 / 31 Gross (lb / kg): 87.3 / 39.6 -
WHAT'S IN THE BOX?
CDM5500T presenation display/Remote Control with batteries/User manual CD wizard/Quick Start Guide/Power Cables/DVI to VGA cable/RS232 cable/RS232 daisy chain cable (2.4mm – 2.4mm)./IR sensor cable/USB cable (Type A-B)
