IFP6570
ViewBoard® 65'' 4K Flagship Interactive Display
- Advanced Projected Capacitive (PCAP) touch technology
- Write Naturally and Accurately with Smart Active Pen
- Azure certified IoT sensor hub for workplace management
- Skype for Business certified FHD camera
- Single cable content sharing through USB Type C
OVERVIEW
The ViewBoard® IFP70, our flagship interactive display, is tailored for visual collaboration in a digital workplace. Adopting advanced Projected Capacitive (PCAP) touch technology, it has a frameless, flat touchscreen to deliver precise responsiveness and the most accurate touch experience. Together with the smart pen, it enables you to write naturally and accurately like a real pen on a 4K Ultra HD resolution screen, streamlining visual collaboration. The ViewBoard® IFP70 series has quick, easy connectivity for content sharing via USB-C cable or wireless ViewBoard® Cast. Furthermore, it has a high quality video conferencing solution for the remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration. In addition, the ViewBoard® IFP70 series gives you extra security to keep your information safe, private and compliant. It has built-in, AWS-powered myViewBoard™ whiteboarding software and an optional Intel® vPro™ slot-in PC. The ViewBoard® IFP70 series is also equipped with IoT sensors, which meet Windows Collaboration Display standards. It can work with Microsoft Azure Digital Twins to monitor and optimise your smart meeting rooms and collaboration spaces.Flat & Sleek Design for the Digital Workplace
Advanced Projected Capacitive (PCAP) touch technology - a direct-bonding glass touchscreen to deliver precise responsiveness and the most accurate experience.
Write Naturally and Accurately
Smart Pen - designed to feel like a real pen with an eraser.
Presentation Control
Smart Pen as a remote control to advance slides.
Single cable content sharing
USB-C - all-in-one cable for security, data, audio/video, Ethernet and power.
Wireless content sharing
ViewBoard® Cast - built-in app to present content wirelessly across devices.
High Quality Video Conferencing Solution
Tailor-made for remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration.
Cloud security
Built-in, AWS-powered myViewBoard ™ whiteboarding software, which protects your data with cloud-powered security and encryption.
Windows Slot-in PC
Optional Intel® vPro ™ slot-in PC, which protects your business with dedicated endpoint security.
Digital Hub to Fulfill Workplace Management
Azure certified IoT sensor hub to detect motion, light, temperature, humidity, and proximity, enables you to analyze and optimise your valuable resources, reduce costs and enhance your connected spaces.
I/O Ports
- Sensor Hub
- Camera
- 6 Array Microphone
- Meun Controls
- Smart Pen and Charger
- Intel Unite® Certified OPS Slot
- USB-C
(USB 3.0, DP 1.4 Alternate Mode, Ethernet, PD 60W) - HDMI Out
- HDMI In
- USB 3.0 X 3
- Touch X 2
- Display Port
- WiFi Module Slot
- VESA Wall Mount 800x600mm
- 2.1 Speakers
- SPDIF
- RS232
- Audio Out
- LAN
- USB 2.0
SPECIFICATIONS
- DisplayPanel Size: 65"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-Glare/anti finger print
Bezel: Slim
Orientation: Landscape - PlatformProcessor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB - TouchType/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x1 (3840x2160 @60Hz)
DisplayPort: X1 1.4
RS232: x1
OPS: x1 PC Slot - OUTPUTHDMI: X1(4K2K@60Hz)
Audio: x1 (Earphone out)
SPDIF: 1(optical) - LANRJ45: x1
- USBType A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W - SPEAKERSSPEAKERS: 10W x 2 + 15W x 1 subwoofer
- Camera plate on top for screw-in webcam installationCamera plate on top for screw-in webcam installation: Yes
- Bundle SoftwareBasic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: On:99(Typ.)
Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 800 x 600
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1493X883X84(mm)
58.77x34.76x3.3(inch)
Packaging (inch / mm): 1669X1010X223(mm)
65.7X39.7X8.7(inch) - WEIGHTNet (lb / kg): 94.79 lb/43Kg
Gross (lb / kg): 110.23 /51Kg - REGULATIONSREGULATIONS: FCC, cTUVus, CB, CE, RCM,
- Energy Star versionEnergy Star version: ES8.0
- EEI ratingEEI rating: A+
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Power cable x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7
10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable
13. Sensor hub
14 .Touch USB cable

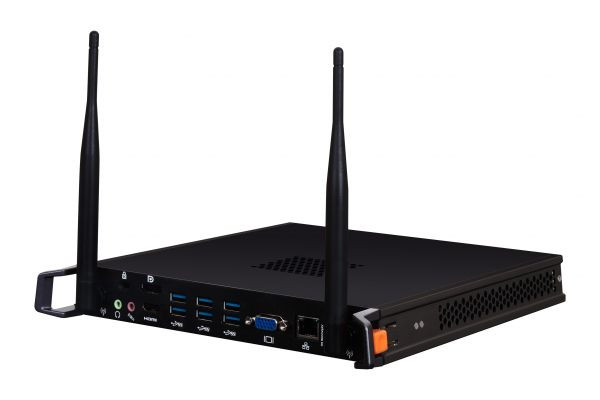

15. Micro USB cable for camera - Compatible Slot-in PCCompatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
COMPATIBLE WITH IFP6570
Dual Band Wireless Module for ViewBoard® IFP50 Series and IFP70(86”, 65”) series and CDE20 series(65”~86”)
1080p Ultra-wide Web Camera
Full HD 1080p All-round Web Camera
ViewBoard Cast Button (VB-WPS-001) Screen sharing button with USB-C connector
Screen sharing button with HDMI connector
Windows Slot-in PC for ViewBoard® IFP8650/7550/6550/5550
ViewSonic Windows Slot-in PC IFP50 seriesViewBoard®
USB Wireless Adapter
