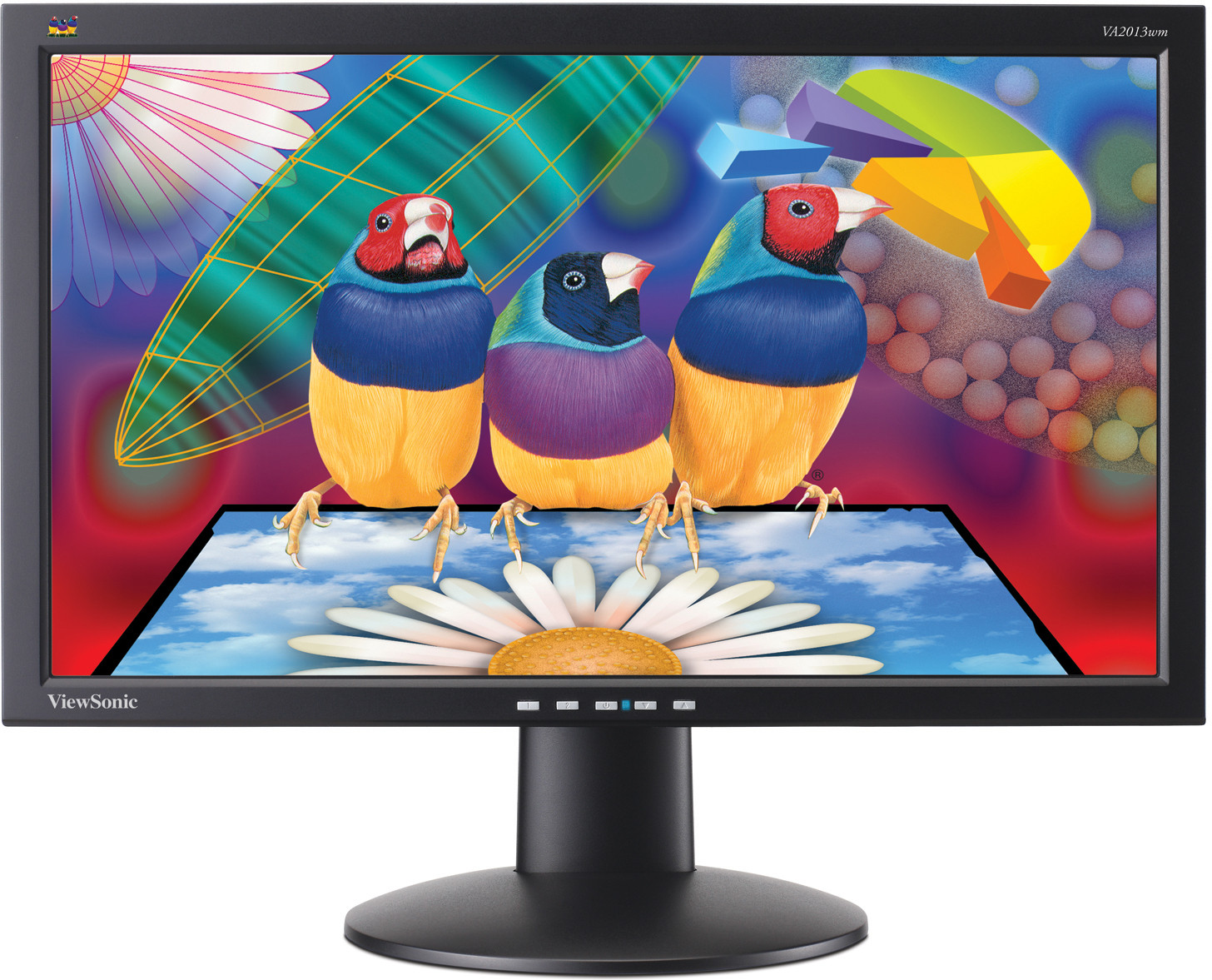

LED Display
VA2013w
Toets Features
Product Omschrijving
Bezoek Gebruikers
- www.viewsonic.com
-
COLORS
Black -
LCD
Contrastverhouding: 1000:1 (typ.) / 20000:1 dynamic Kijkhoeken: 170o (H), 160o (V) at 10:1 c/r, 170o (H) 170o (V) at 5:1 c/r Helderheid: 300 cd/m² (typ.) Display Area: 443 x 249 (mm) Optimum Resolution: 1600×900 Reactietijd: 5ms (typ.) Lichtbron: 50,000 hrs (typ.) Panel Surface: Anti-Glare, Hard coating (3H) Pixel Pitch: 0.276mm(H) x 0.276mm(V) Colour Support: 16.7 M (6-bits + Hi FRC) Size: 50.80cm (20") wide Color TFT Active Matrix LCD 16:9 aspect ratio -
COMPATIBILITY
PC: VGA up to 1600×900 Non Interlaced Mac®: Power Mac, up to 1600×900 -
DIMENSIONS
Physical With Stand: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in) Physical Without Stand: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in) -
VERPAKKINGSINHOUD
LCD display, VGA cable, Power cable, Quick Start Guide, ViewSonic Wizard CD -
INPUT
Sync: Separate Sync Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p) Frequency: Fh: 24-82kHz, Fv: 50-75Hz -
CONNECTOR
Analogue: 1×15 pin mini D-sub Stroom: Built-in power Adapter, 3-Pin plug -
POWER
Spanning: AC 100-240V (Universal); 50/60Hz(Switch) Consumptie: 46 (typ) Eco Mode: optimize 30W (typ.) / conserve 23W (typ.) Save mode: ≦1W -
CONTROLS
Basic: [1], [2], Power, Down[▼], Up[▲] On View (PC mode): Auto Image Adjust
Contrast/Brightness
Audio adjust: Volume mute
Color Adjust: sRGB, 9300K, 7500K, 6500K, 5000K
User Color: [R, G, B]
Information
Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, setup menu, language select, resolution notice, OSD Position, OSD Time Out, OSD Background, memory recall. -
OPERATING CONDITIONS
Temperatuur: 41°F - 95°F (5°C - 35°C) Luchtvochtigheid: 20 - 80% (Non condensed) -
WEIGHT
Netto: 4.12kg (9.08lbs) Bruto: 5.21kg (11.49lbs) -
POWER MANAGEMENT
TCO'03, ENERGY STAR -
ERGONOMICS
20° ~ -5° -
VESA MOUNT COMPLIANT
VESA 100mm x 100mm
