Key Features
  • ViewMode technology
  • HDMI and VGA inputs
  • Flicker-Free and Blue Light Filter
  • Eco-mode
  • VESA mountable

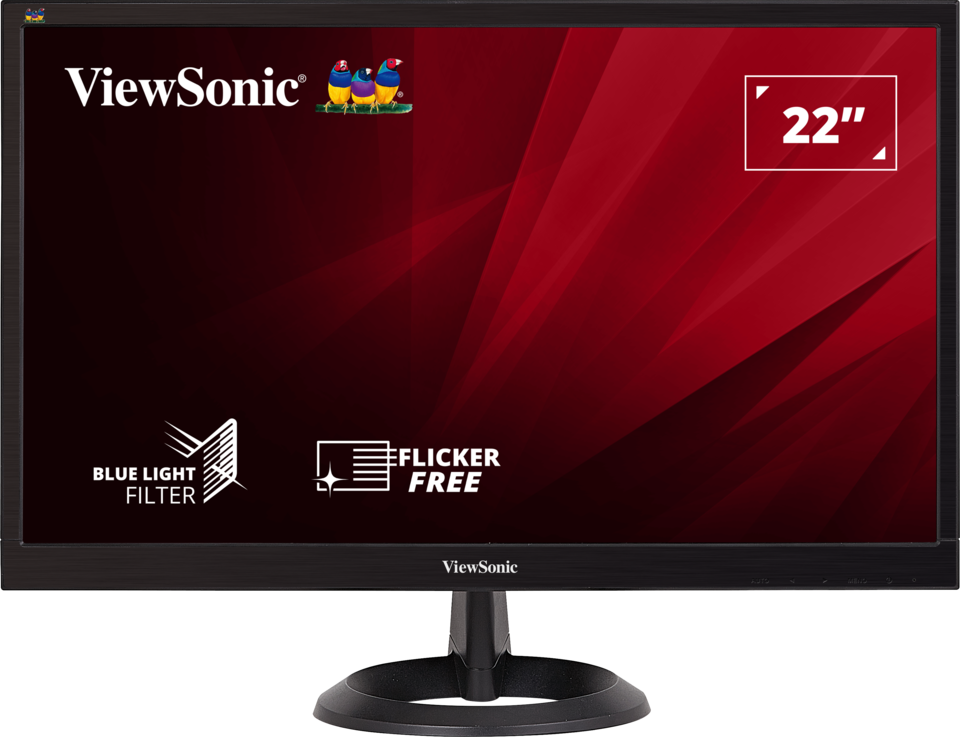

VA2261h-8
Product Description
The ViewSonic VA2261h-8 is a 22”(21.5” viewable) Full HD LED Monitor which is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. HDMI and VGA provides flexible connectivity, and a VESA-compatible mount adapt easily to multi-monitor or wall-mount set ups.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: TN Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 5ms
    Viewing Angles: 170º horizontal, 160º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • POWER
    Eco Mode (Conserve): 12.5W
    Eco Mode (optimized): 14.5W
    Consumption (typical): 21.5W
    Consumption (max): 24W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Auto, Left, Right, Menu, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -6º / 19º
  • WEIGHT (IMPERIAL)
    Net (lbs): 5.8
    Net Without Stand (lbs): 4.9
    Gross (lbs): 7.9
  • WEIGHT (METRIC)
    Net (kg): 2.6
    Net Without Stand (kg): 2.2
    Gross (kg): 3.6
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 22.2 x 15.4 x 4.5
    Physical (in.): 19.9 x 15 x 7.1
    Physical Without Stand (in.): 19.9 x 12.3 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 565 x 390 x 115
    Physical (mm): 505 x 381 x 180
    Physical Without Stand (mm): 505 x 312 x 48
  • GENERAL
    PACKAGE CONTENTS: VA2261H-8 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
