Key Features
  • SuperClear® IPS Technology
  • 144z Refresh Rate
  • 1ms Response Time
  • AMD FreeSync™ Premium
  • Full HD Display
  • HDMI and DisplayPort connectivity

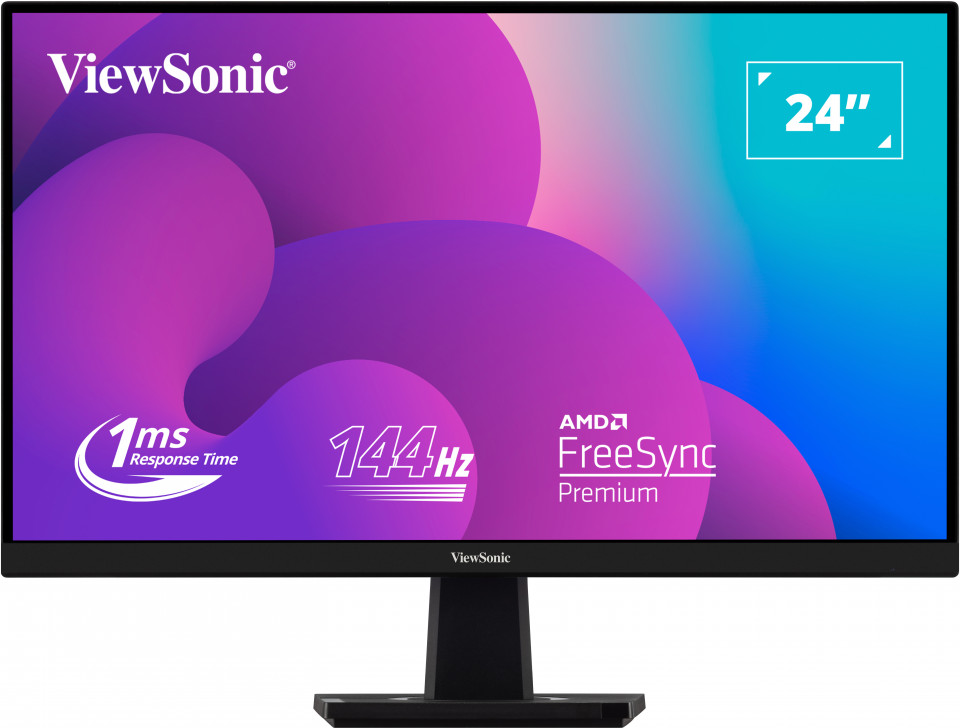

VX2405-P-MHD
Product Description
With a 144Hz refresh rate, 1ms response time and AMD FreeSync™ Premium technology, the VX2405-P-MHD provides an incredible gaming experience. The 24” Full HD display renders sharp images, and videos packed with detail. Our SuperClear® IPS panel features rich colors and contrasts for a vivid viewing experience. A rapid 144Hz refresh rate combined with AMD FreeSync™ Premium technology enables smooth graphics and virtually eliminates screen tearing. With a sleek, thin bezel display and minimal design, this monitor is perfect at work or home. VX2405-P-MHD is also equipped with ViewSonic’s exclusive ViewMode™ presets, which offer optimized screen performance for a variety of scenarios such gaming, editing, or watching movies. In addition, a DisplayPort and HDMI inputs offer flexible connectivity.

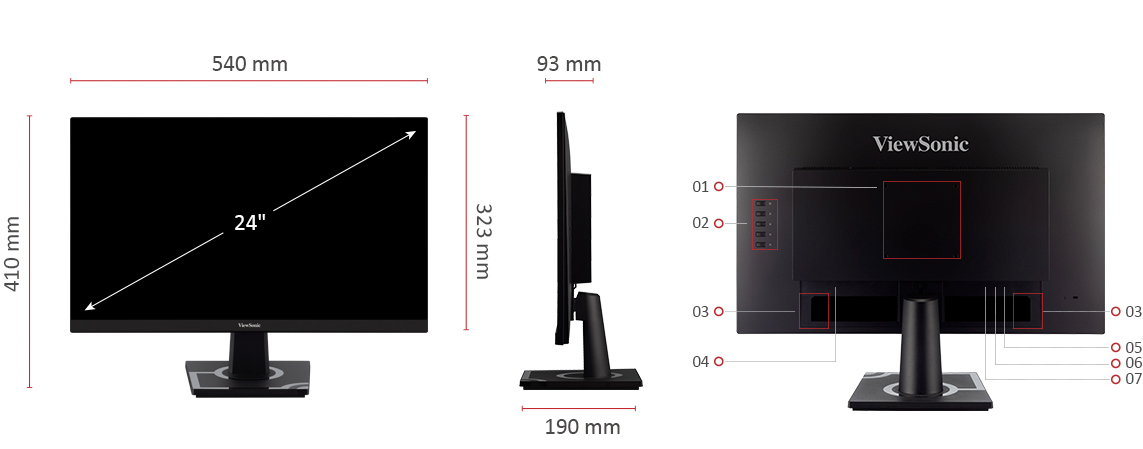

  1. VESA Compatible(Wall Mount 100 x 100mm)
  2. Menu Controls
  3. Internal Speakers
  4. AC in
  5. Audio Out
  6. DisplayPort
  7. HDMI x 2
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 1ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 144
    Variable Refresh Rate Technology: FreeSync Premium
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 85% size (Typ) sRGB: 120% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    3.5mm Audio Out: 1
    HDMI 1.4: 2
    DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 12W
    Eco Mode (optimized): 14W
    Consumption (typical): 21W
    Consumption (max): 33W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 30 ~ 180KHz
    Frequency Vertical: 48 ~ 144Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 7.7
    Net Without Stand (lbs): 6.8
    Gross (lbs): 11.7
  • WEIGHT (METRIC)
    Net (kg): 3.5
    Net Without Stand (kg): 3.1
    Gross (kg): 5.3
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 23.6 x 16.3 x 4.9
    Physical (in.): 21.2 x 16.1 x 7.5
    Physical Without Stand (in.): 21.2 x 12.7 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 599 x 415 x 125
    Physical (mm): 540 x 410 x 190
    Physical Without Stand (mm): 540 x 323 x 48
  • GENERAL
    PACKAGE CONTENTS: VX2405-P-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
