Key Features
  • 24 hours a day 7 days a week operations
  • Built-in Quad Core Media Player with 16GB Storage
  • Embedded LAN
  • Internal Scheduler
  • Content Management Software

CDM5500T
Product Description
Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this presenation display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.

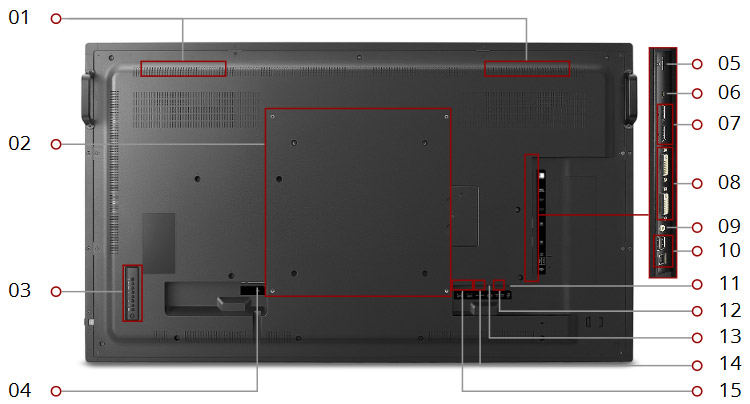

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 400 x 400 mm
  3. Menu Controls
  4. AC In
  5. SD Reader
  6. Micro USB
  7. DisplayPort In/Out
  8. DVI-I In/Out
  9. Audio In
  10. USB 2.0 (Type A x2, Type B x1)
  11. Audio Out
  12. RS232 In/Out
  13. LAN
  14. IR In/Out
  15. HDMI x2
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 55'' (54.64" diagonal)
    Type/ Tech: IPS
    Display Area (mm): 1209.6 (H) x 680.4 (V)
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 16.7 M colors
    Brightness: 450 nits (typ.)
    Contrast Ratio: 1100:1 (typ.)
    Response Time: 12 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: ELED
    Backlight Life: 50,000 Hours (typ.)
    Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
  • TOUCH
    Type/ Tech: Infrared
    Touch Point: 10 Points
  • INPUT
    HDMI: x 2 (HDMI1.4)
    DisplayPort: x 1
    DVI: x 1
    Audio: x 1
    RS232: x 1
    SD/SDHC: Micro SD card slot (Up to 32GB)
    IR: x 1
  • OUTPUT
    DisplayPort: x 1
    DVI: x 1
    RS232: x 1
    IR: x 1
  • LAN
    RJ45: x 1
  • USB
    Type A: x 2 (Multi-media playback x 1, 5V/2A x 1)
    Type B: x 1 (Touch out)
    Micro USB: x 1 (Support USB OTG)
  • AUDIO
    Speaker: 10W x 2
  • BUILT-IN PC
    Processor: Quad core A9, 1.6G
    Storage: eMMC 16G
  • COMPATIBILITY
    VGA: 480i, 480p,720p,1080i,1080p
    DVI: 480i, 480p,720p,1080i,1080p
    DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: Normal 76W, Max 143W
  • ERGONOMICS
    Wall Mount (VESA® ): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate)
  • OPERATING CONDITIONS
    Temperature (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
    Humidity: 20% ~ 80% non-condensing

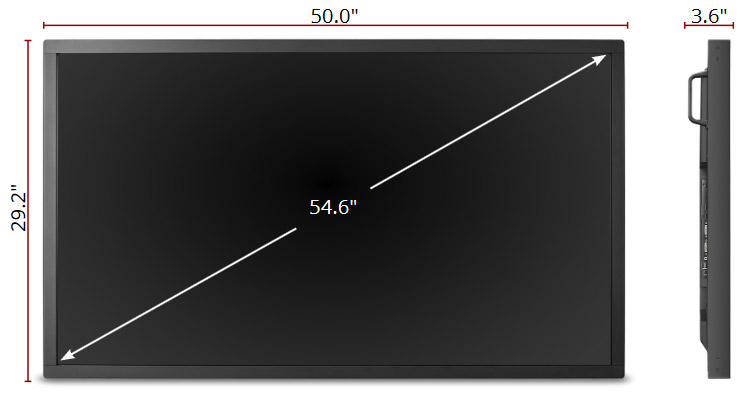

  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
    Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
    Packaging (inch / mm): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280
  • WEIGHT
    Net (lb / kg): 77.38 / 35.1
    Net w/o Stand (lb / kg): 68.34 / 31
    Gross (lb / kg): 87.3 / 39.6
  • REGULATIONS
    Standard: FCC, cTUVus, Energy Star 7.0, Mexico Energy, CE, EAC, BSMI
  • WHAT'S IN THE BOX?
    CDM5500T presenation display/Remote Control with batteries/User manual CD wizard/Quick Start Guide/Power Cables/DVI to VGA cable/RS232 cable/RS232 daisy chain cable (2.4mm – 2.4mm)./IR sensor cable/USB cable (Type A-B)
