Key Features
  • Pre-installed ViewBoard® Cast and Zoom
  • USB multimedia player
  • Supports HDMI CEC pass-through
  • Flicker-free and Blue Light Filter eye-care technologies
  • HDMI, VGA, RS232, RJ45 input compatibility

CDE7500
Product Description
The ViewSonic® CDE7500 is a 75" 4K Ultra HD display with conferencing capabilities. With features including a razor sharp resolution of 3840 x 2160, ultra wide viewing angles, 2 x 20W speakers, and file sharing software, the display has been designed with the meeting room scenario in mind. The pre-installed Cast content sharing and Embedded Zoom conference software enables multiple users, whether on-site or on-line, to participate in conferences and share content with each other simultaneously, transforming CDE7500 into a dynamic content hub. This display’s integrated quad-core processor and 16GB internal memory allows users to play multimedia content from a USB without the need for a PC, while the HDMI and VGA inputs offer connection with a variety of high definition devices. Flicker-free and Blue Light Filter eye-care technologies provide viewing that is comfortable for the human eye, from start to finish.

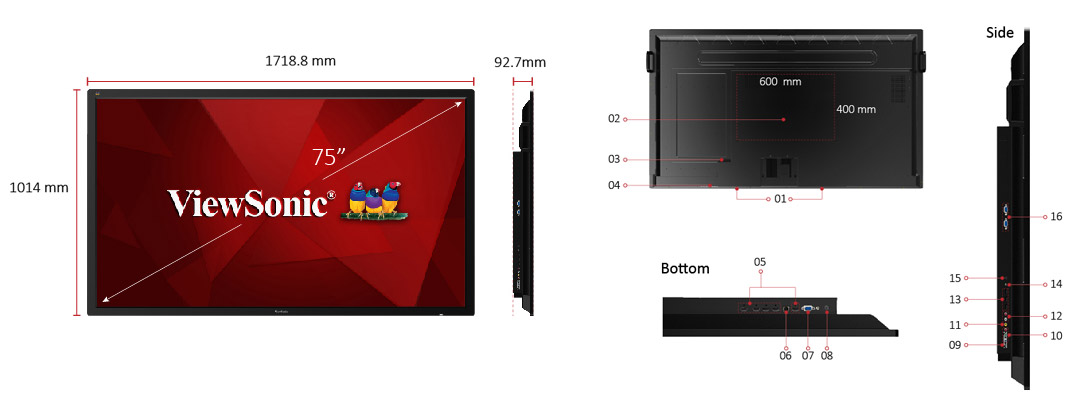

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 600 x 400 mm
  3. AC In
  4. Menu Controls
  5. HDMI ports
  6. LAN ports
  7. VGA ports
  8. VGA-AUDIO
  9. AV-OUT
  10. YPbPr/YCbCr IN ports
  11. AV-IN ports
  12. AUDIO-IN ports
  13. USB ports
  14. Headset port
  15. SPDIF port
  16. RS232 IN/OUT port
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 75"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1649.66(H) x 927.94(V)
    Aspect Ratio: 16:9
    Resolution: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Brightness: 450 nits(typ.) 400nits(min.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x 4
    RGB / VGA: x 1
    Audio: x 1
    CVBS: x 1
    YPbPr: x 1
    RS232: x 1
    OPS: x 1 PC Slot (Intel OPS Standard)
    x1 SDM
  • OUTPUT
    HDMI: x 1 (for one of HDMI1/2/3)
    Audio (Earphone out): x 1
    SPDIF: x 1
    RS232: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 2 (side x1, top x1)
    3.0 Type A: x 2 (side)
  • SPEAKERS
    20W x 2
  • BUILT-IN PC
    Processor: ARM Cortex A53 Quad Core 1.5G Hz CPU
    Memory: 2GB
    Storage: 16GB
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 480i, 480p,720p, 1080p, up to 2160p
    CVBS: 480i
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: 300 W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400mm; Screw: M8 x 20mm
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Humidity: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical w/o Stand (mm / inch): 1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch
    Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 in
  • WEIGHT
    Net w/o Stand (kg / lb): 43.05 kg / 94.91lbs
    Gross (kg / lb): 65.40 kg / 144.18lbs
  • REGULATIONS
    Standard: cTUVus, FCC, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, CCC, China Energy Label
  • WHAT'S IN THE BOX?
    1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)
    2. Remote control with batteries
    3. User manual CD wizard
