ViewSonic VPC12-WPO-2 Intel Unite® Certified Slot-in OPS (Open Pluggable Specification) PC

Clé Caractéristiques

Powered by Intel Unite^® for easy wireless content sharing
Advanced security with multifactor identity protection by Intel vPro™ technology
Pre-installed Windows 10 Pro trial operating system
Powerful system with the Intel^® Core™ i5 vPro™ processor, 8GB (Up to 16GB) DDR4 memory, and 128GB (Up to 512GB) SSD storage
Complete network support WiFi 2.4GHz/5GHz, Bluetooth, and Gigabit LAN Ethernet
Rich I/O ports, including 4K HDMI-out
Windows 10 Pro OS support

Produit Description

The ViewSonic^® VPC12-WPO-2 Windows slot-in OPS (Open Pluggable Specification) PC is the ideal integrated solution for delivering smart whiteboard and smart meeting room functionality. This Intel Unite^® certified slot-in OPS PC module supports wireless group presentation with high-definition audio and video. With wireless Wi-Fi dual band and Bluetooth, a powerful Intel^® Core™ i5 vPro™ processor, 8GB (Up to 16GB) DDR4 memory, and a128GB (Up to 512GB) SSD storage, the VPC12-WPO-2 contains the computing power needed to operate CPU intensive applications while providing advanced security by Intel vPro™ technology. Connectivity options including 4K HDMI, VGA, USB 3.0 ports, and Gigabit LAN RJ45 ensure that you stay connected to any and all peripheral devices.

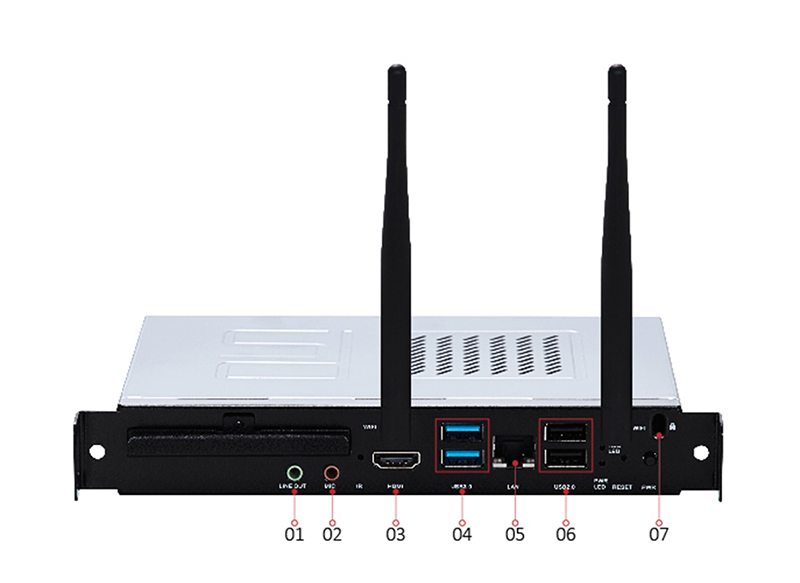

MIC IN
AUDIO OUT
4K HDMI OUT
USB 3.0
RJ45 (LAN)
USB 2.0
KENSINGTON LOCK SLOT

Visitez Nous

www.viewsonic.com

SYSTEM

CPU:	Intel® Core™ i5-6300U with vPro and TPM function
Mémoire:	DDR4 8GB (expendable to 16GB)
GPU:	Intel HD Graphics 520
Stockage:	2.5" 128GB SATA3 SSD (expendable to 512G)
Network:	Wireless 802.11 abgn-AC (2.4GHz/5GHz)
Bluetooth 4.0
Gigabit LAN ethernet
OS:	Windows 10 Pro 64 bit support

INPUT

MIC(Microphone): x 1
OUTPUT

HDMI: x 1 (4096x2160@24Hz)

Audio (Earphone out): x 1

IR: x 1
LAN

RJ45: x 1
USB

2.0 Type A: x 2

3.0 Type A: x 2
LOGICIEL

Windows 10 Pro 64 bit, QuickLaunch PE Installer, intel Unite
ALIMENTATION

Tension: DC 12/19V

Consommation: 60W
OPERATING CONDITIONS

Température (º C): 23°F to 113°F (-5°C to 45°C)

Humidité: 10% ~ 90% non-condensing
DIMENSIONS (L X H X P)

Physical (mm / inch): 180 x 119 x 30mm / 7.1 x 4.7x 1.2 inches

Packaging (mm / inch): 254 x 196 x 77 mm / 10.0 x 7.7 x3.1 inches
WEIGHT

Net (kg / lb): 0.84kg / 1.85lb

Gross (kg / lb): 1.05kg / 2.31lb
REGULATIONS

Standard: RED/cTUVus/FCC/FCC ID/IC ID/ICES/CE/CB/RED/RoHS/REACH/RCM

Température (º C):	23°F to 113°F (-5°C to 45°C)
Humidité:	10% ~ 90% non-condensing

Physical (mm / inch):	180 x 119 x 30mm / 7.1 x 4.7x 1.2 inches
Packaging (mm / inch):	254 x 196 x 77 mm / 10.0 x 7.7 x3.1 inches

Net (kg / lb):	0.84kg / 1.85lb
Gross (kg / lb):	1.05kg / 2.31lb

HDMI:	x 1 (4096x2160@24Hz)
Audio (Earphone out):	x 1
IR:	x 1

2.0 Type A:	x 2
3.0 Type A:	x 2

Tension:	DC 12/19V
Consommation:	60W
