ViewBoard

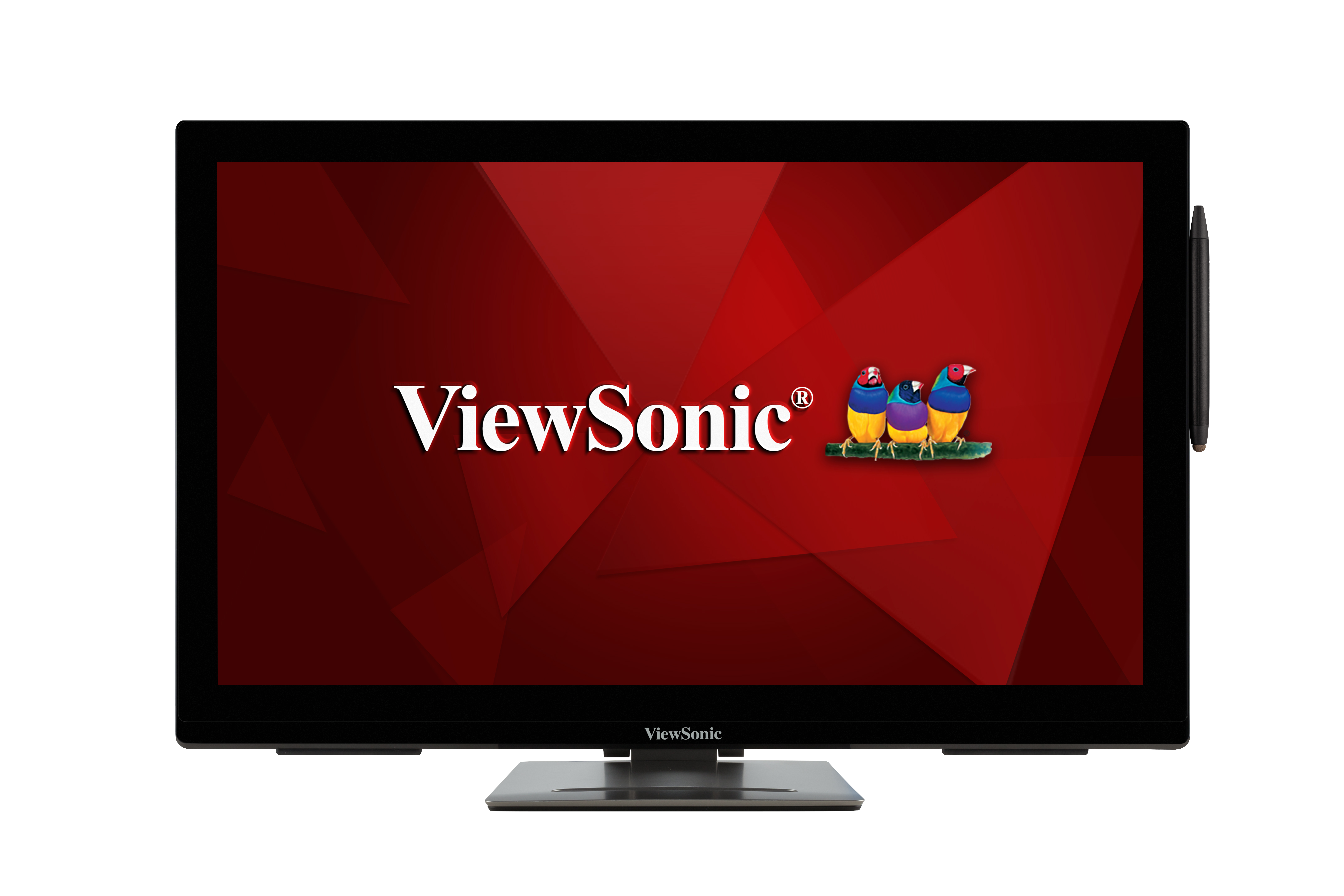

ViewBoard Mini IFP2710
주요 기능
- 10-point touch and passive pen touch
- Swivel and flat ergonomic design
- HDMI output to external display
- HDBaseT connection
- Durable 7H glass screen surface
제품 설명
The ViewSonic ViewBoard Mini IFP2710 is a multi-touch display with finger and pen touch command capabilities that allows presenters to intuitively draw, write, and annotate directly on the display. An advanced ergonomic design allows you to swivel the display or lay it flat on a tabletop for group discussions. All annotated content on the touch display can be transferred to a larger external display or projector simultaneously via HDMI output or LAN cable from HDBaseT, creating a more engaging classroom or lecture hall environments.
방문
- www.viewsonic.com
-
LCD PANEL
Monitor Size: 27.0” / 68.58cm Panel Technology: ADS Type, a-si TFT Active Matrix LCD 결의안: 1920 x 1080 Display Area: 597.888(H) x 336.312(V) 가로 세로 비율: 16:9 밝기: 260 cd/m2 (Typ.) / 220cd/m2 (Min) 대비 비율: 1000:1 (Typ) / 700:1 (Min) 동적 대비 비율: 20,000,000:1 보기 각도: 178 degrees / 178 degrees (Typ) Refresh Rate: 75Hz 응답 시간: 14 ms (Typ.) Backlight: WLED light bar 백라이트 라이프: 30,000 Hrs (Min) 색: 16.7M colors, (6-bits + Hi FRC) 색역: 72% NTSC Size (Typ) Panel Surface: Glossy type, Hard-coating (7H) 픽셀 크기: 0.3114(H) x 0.3114(V) -
INPUT SIGNAL
Frequency: Fh = 31 ~82 kHz ; Fv = 56 ~75 Hz Sync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p): Separate Sync / Composite Sync / Sync on Green, HDMI (v1.4): TMDS -
COMPATIBILITY
PC: PC Compatibles (up to 1920 x 1080 Non Interlaced) Mac®: Power Mac (up to 1920 x 1080 ) -
CONNECTOR
입력: D-sub, HDMI1.4, DisplayPort 1.2 산출량: HDMI1.4 x 1 -
AUDIO
스피커: 2W x 2 -
USB
Upstream: Type B x 1 Downstream: Type A x 2 -
POWER
힘: External Power Adapter 전압: AC 100-240V (Universal); 50/60Hz 소비.: 155W Optimize: 143W Conserve: 132W -
ERGONOMICS
틸트: -5°±1.0° (forward) , 90.0°±1.0°(backward) 회전: 177.5° / 177.5° -
SPECIAL FEATURES
Eye Care: Flicker free / Blue Light Filter -
WALL MOUNT
VESA®: 100mm x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) 습도: 20% to 90% (no condensation) -
DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 653.20mm (W) x 449.07 mm (H) x 270.00 mm (D) Physical without stand (mm): 653.20mm (W) x 410.67mm (H) x 52.10 mm (D) Packaging (mm): 754.38 mm (W) x 524.76 mm (H) x 168.91 mm (D) -
WEIGHT
Net with stand: 12.69kg (27.98lbs) Net without stand: 7.97 kg (17.57 lbs) 징그러워요: 19.88 kg (43.83 lbs) -
패키지 내용물
LCD Display, Power Cable (cable length :1.5M), Audio Cable (3.5mm audio male to male) (cable length : 1.8M), VGA Cable (cable length :1.5M), HDMI Cable(cable length :1.5M), USB Cable (cable length :1.8M), Passive Touch Pen, Quick Start Guide
